airmaster HC2TIM User Instructions

2kw convector heater with timer
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

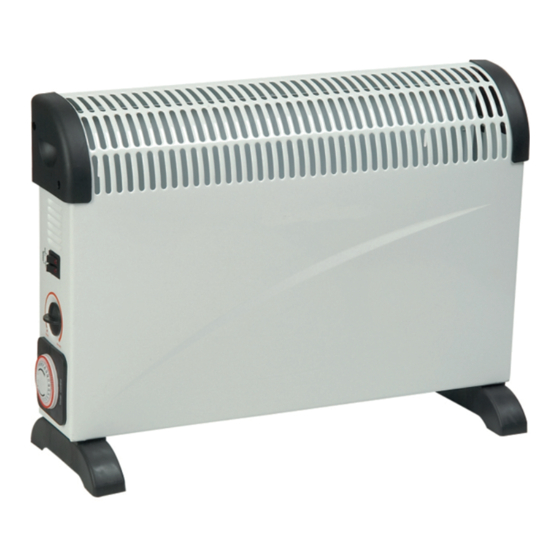

Model. HC2TIM
2kW Convector Heater with Timer
Features & Benefits
Automatic selection of 3 heat settings: 750W / 1250W / 2000W
White body with black handle and sturdy feet plastic studs
Slim, compact and light design with easy to set on/off function
Variable thermostat control with over heating and thermal safety protection trip over cut-out switch
Complete with 24hrs timer with 15 mins segments
Available in 3 functional versions: Standard / Turbo (with fan heater) / Timer (with 24hr segment timer)
Safety Information
IMPORTANT - Before undertaking any work on or maintenance of fitting:-
Switch off power supply and allow sufficient time to cool before handling
Do not dispose of decomissioned fitting in household waste
Dispose of fitting in the appropriate section of your local civic amenity site or recycling centre only
Technical Specifications
General Information
Product Colour/Finish
Dimensions (mm)
Ingress Protection (IP)
Electrical
Input Votage (V)
Output Rating (W)
Frequency (Hz)
Working temperature (°C)
Mounting Position
Mounting Bracket (Y/N)
Cable
Class
Approvals
Energy Rating (ErP)
Performance Data
Air Volume/Velocity (cbm)
Noise level (dB)
Tip-Over Sensor (Y/N)
Over-Heat protection (Y/N)
Construction
Body
Grill
Motor
Nett Weight
Gross Weight
Warranty Period (Years)
Other
Applications
CED ELECTRICAL GROUP
44-48 Freshwater Road, Dagenham, Essex RM8 1RX
Telphone. 020 8503 8500 - Fax. 020 8503 8900
Email. info@cedelectrical.co.uk - Website. http://www.cedelectrical.co.uk
White
585 x 420 x200
n/a
220-240V
2000W
50Hz
n/a
Floor
N
Plug cord length: 1.8Mtr with 3 Core cable 1.0mm with BS1363
approved plug
I
CE, GS, RoHS, BSEN 60335-1:2012
n/a
n/a
Silent operation
Y
Y
Durable corrosion resistant powder coated steel body
Powder coated steel grills
No motor
2.9Kg
3.7Kg
1Yr
Domestic, commercial applications

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HC2TIM and is the answer not in the manual?

Questions and answers

Summary of Contents for airmaster HC2TIM

  • Page 1 Model. HC2TIM 2kW Convector Heater with Timer Features & Benefits Automatic selection of 3 heat settings: 750W / 1250W / 2000W White body with black handle and sturdy feet plastic studs Slim, compact and light design with easy to set on/off function...
  • Page 2 2kW CONVECTOR HEATER WITH TIMER 220-240V 50-60Hz 2000W USER INSTRUCTIONS Product Code: HC2TIM This product is only suitable for well insulated spaces or occasional use Please carefully read this instruction before using product...

  • Page 3: Safety Instruction

    SAFETY INSTRUCTION 1. Do not use the heater unless the feet are correctly attached. 2. Ensure the power supply to the socket into which the heater is plugged is in accordance with the rating label on the heater and that the socket is earthed. 3.

  • Page 4: Operation

    ASSEMBLY OF THE HEATER Before using the heater, the feet (supplied separately in the carton), must be fitted to the unit. These are to be attached to the base of the heater using the 4 self-tapping screws provided, taking care to ensure that they are located correctly in the bottom ends of the heater side moldings OPERATION NOTE: It is normal when the heaters are turned on for the first time or when they...

  • Page 5: Using The Timer

    Choose a suitable location for the heater, taking into account the safety instructions above. Insert the plug of the heater into a suitable socket. Turn the thermostat knob fully in a clockwise direction to the maximum setting. Turn on the heating elements by means of the rocker switches on the side panel. When the heating elements are on the switches will illuminate.

  • Page 6: Protection Against Overheating

    PROTECTION AGAINST OVERHEATING 1) An additional fitted safety thermostat protects the heater against overheating and switches it off automatically. The service lamp then goes out. The heater is ready for service again after a short cooling-off phase (approx. 15 minutes). 2) If this repeat itself, first check whether the thermostat switch it set correctly or if objects hinder the heating operation.
  • Page 7 Information requirements for electric local space heaters Model identifier(s): HC2TIM Item Symbol Value Unit Item Unit Type of heat input, for electric storage local space heaters Heat output only (select one) Nominal heat output Pnom manual heat charge control, with integrated thermostat...
