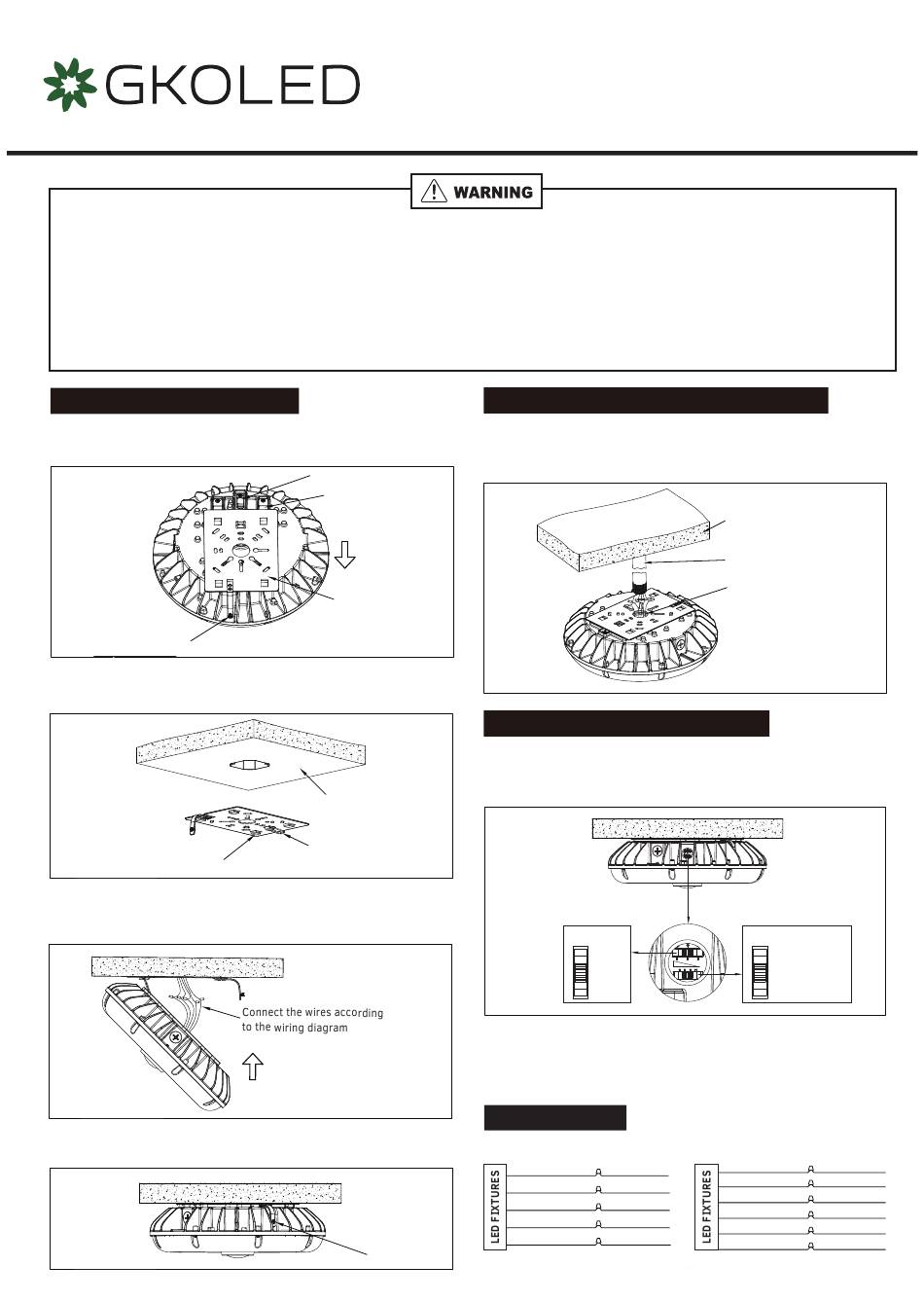

GKOLED GKOCP03 Series Installation Manual

PLEASE READ ALL INSTRUCTIONS BEFORE ATTEMPTING INSTALLATION
— To prevent personal injury or product damage only licensed electricians should install.
— To avoid electric shock or component damage disconnect power before attempting installation or servicing.
— This product must be installed in accordance with the national electric code (NEC) and all applicable federal, state, and local electric codes and safety standards.
— Disconnect product and allow cooling prior to servicing.
— Any alteration or modification of this product is expressly forbidden as it may cause serious personal injury, death, property damage, and/or product malfunction.
— To prevent product malfunction and/or electrical shock this product must be properly grounded.
— This luminaire is designed to operate in ambient temperatures ranging from -40°F to 113 °F and to be horizontally mounted with the LEDs facing down.
— This product is not available for several special enviroments, such as places with corrosive gas liquids or gas stations.

Surface Mounting With J-Box

1. Loosen and remove the M4 Screws used to attach the mounting plate to the
fixture.
M4 Screws
2. Attach the mounting plate to the ceiling using M16 Expansion Bolts or M6
stainless steel screws with plastic anchors (not included).
Suspension Loop
3. Connect the clip of the fixture to the spindle of the mounting plate to ensure
the fixture will not slip and fall. Complete wiring using the wiring diagram, then
push the pressing plate into the suspension loop on the mounting plate.
4. Reattach the mounting plate to the fixture using the previously removed M4
Screws.
®
1. Complete wiring using the wiring diagram.
2. Screw the fixture onto the 3/4 inch conduit (not included) to complete the
Clip
Pressing Plate
Mounting Plate
Remove the screw plug on the side of the light, adjust the dial switch to the
desired power level and color temperature to match the application
requirements, then reinstall the screw plug as demonstrated below:
Ceiling
Spindle
NOTE: Power values indicated in diagram are based on tested values and may
WITHOUT EMERGENCY BATTERY
M4 Screws
Note: Two dimming wires in the the driver box.
CIRCULAR CANOPY

Pendant Mounting With 3/4 Inch Conduit

installation.
Power & CCT Adjustment Controls
CCT
5000K
4000K
slightly vary.

Wiring Diagram

Black Line
White Neutral
Green/Yellow Green Ground
Purple DIM+
DIM-
Pink
Series GKOCP03
Installation Guide
Ceiling
3/4 Inch Conduit
3/4 Inch Threaded Hole
POWER
100% 60W
80% 46W
60% 34W
40% 22W
WITH EMERGENCY BATTERY
Red AC Line (24/7)
AC Line Switch
Black
Neutral
White
Green/Yellow Green Ground
DIM+
Purple
Pink
DIM-
