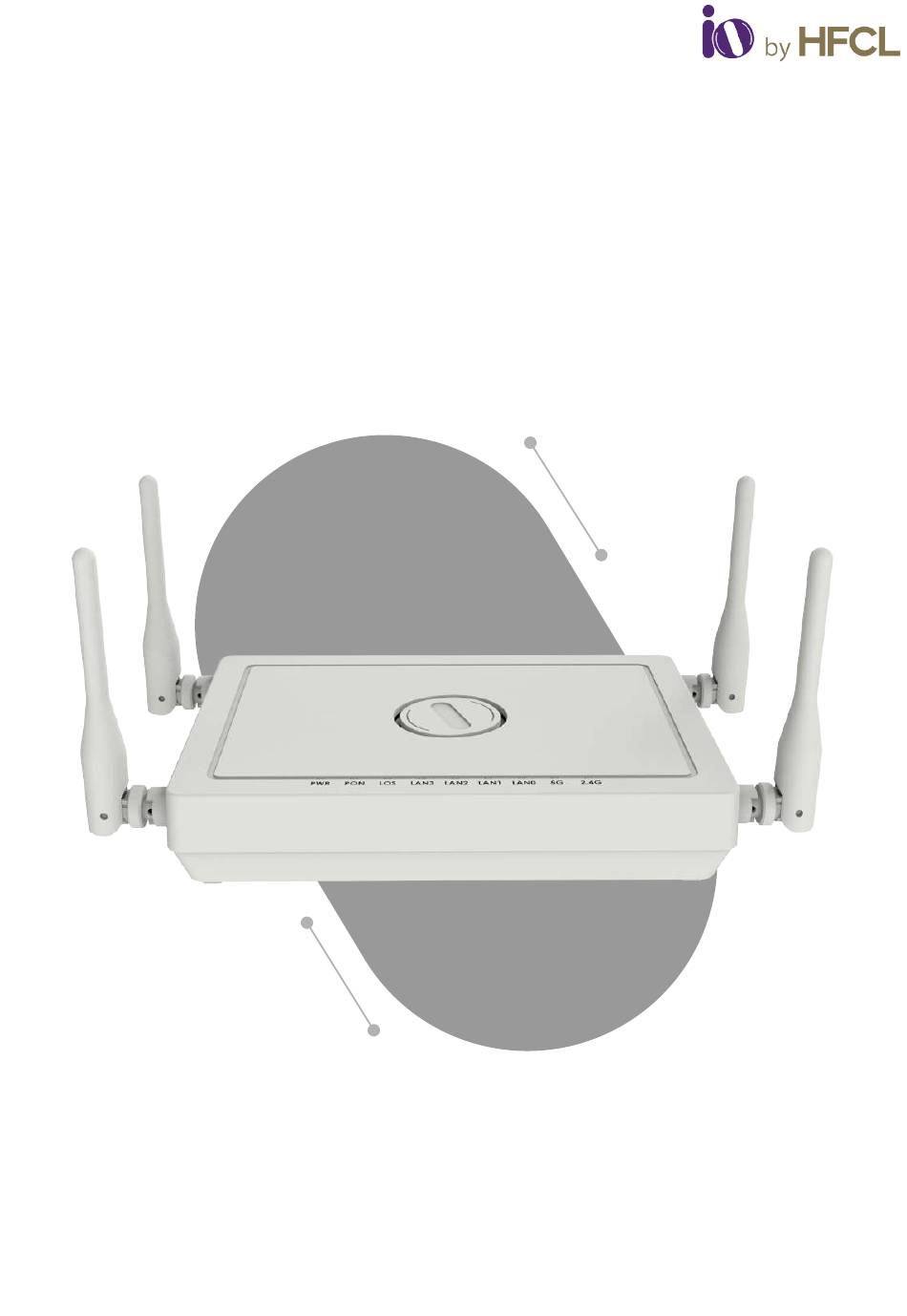

- Page 1 Quick Start Guide Sleek | Smart | Secure XPON ONT OHG-5110-E14A...
- Page 2 Introduction Thank you for choosing XPON ONT Packaging Content XPON ONT (Qty:1) Power Ethernet Adaptor(Qty:1) Cable(Qty:1) If you find anything missing or damaged, Note: contact the service provider.
-
Page 3: Product Overview
Product Overview PRODUCT INTERFACE INFO 1 x SC/UPC or 1 x SC/APC GPON Port 4 x 10/100/1000Mbps LAN OHG-5110-E14A 1 x POTS Port 2.4G + 5G (2*2MIMO) 1 x USB Port Working Environment OHG-5110-E14A XPON ONT Weight About 400 gm (include power adopter) Maximum <... -
Page 4: Hardware Installation
Hardware Installation Use an optical fiber to connect the optical port on the ONT Configure IP Address of Network Card The optical connector connected 1.1. to the PON port is an SC/APC or SC/UPC connector. To ensure normal use of fibers, make sure that 1.2. -
Page 5: Web Login
Web login Configure IP Address of Network Card • Configure TCP/IP properties of your network card to obtain an IP address automatically from ONT, or set the IP address of the computer with the same network mask of the ONT. •... -
Page 6: Interfaces And Buttons
OHG-5110-E14A interfaces and buttons Antennas Reset Power Switch RJ45 DC Jack RJ11 STATUS LED COLOR The optical port is equipped with a rubber plug and is connected to an optical fiber for transmission RJ-11 POTS port for connecting to analog PHONE telephones Call forwarding, Call waiting, Call block, 3-way conference call, etc. - Page 7 OHG-5110-E14A indicator light To mount the Access Point on a wall, use the wall mounting bracket, drywall screws, and screw anchors (* The entire wall mounting assembly is sold separately) COLOR DESCRIPTION FUNCTION MARK STATUS The device is receiving power and working properly Power Status Green The power...
-
Page 8: Safety Precautions
Safety Precautions Avoid staring directly into the optical port without wearing eye protection Store the device safely away from children to prevent accidental ingestion Ensure device's power supply voltage matches its input requirements Avoid foreign objects, especially metal, from entering the device through the heat dissipation hole Prior to handling cables, ensure your hands are dry. - Page 9 Avoid placing objects on the device to prevent overheating or deformation Do not dismantle the device without authorization. In case of a malfunction, contact the authorized service center Do not modify the device's structure, safety features, or performance without prior authorization Fireproof Precautions: Keep the device away from large heat source equipment, bare flames, and high-power devices, such as electric heaters, candles,...
