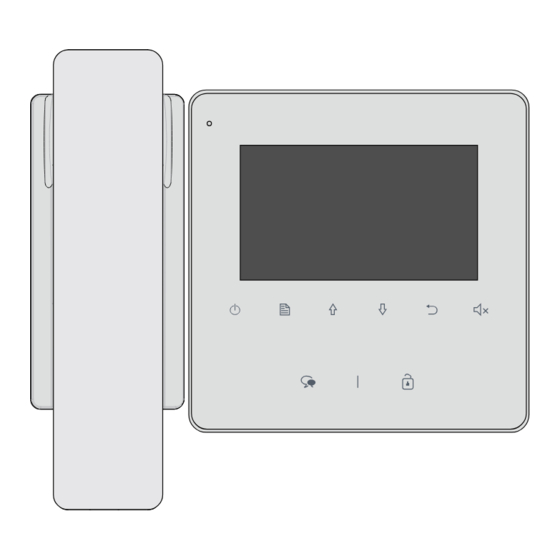

Symetrix DT437-HS-D4 Instructions Manual

4.3" color tft monitor

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

DT-ENG-437-HS/D4-V1 / 202305

2 WIRE INTERCOM SYSTEM

DT437-HS-D4

4.3" COLOR TFT MONITOR

• Please read this manual carefully before using the product you purchase,and keep it well for

future use.

• Please note that images and sketch maps in this manual may be di erent from the actual product.

Table of Contents

Need help?

Do you have a question about the DT437-HS-D4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Symetrix DT437-HS-D4

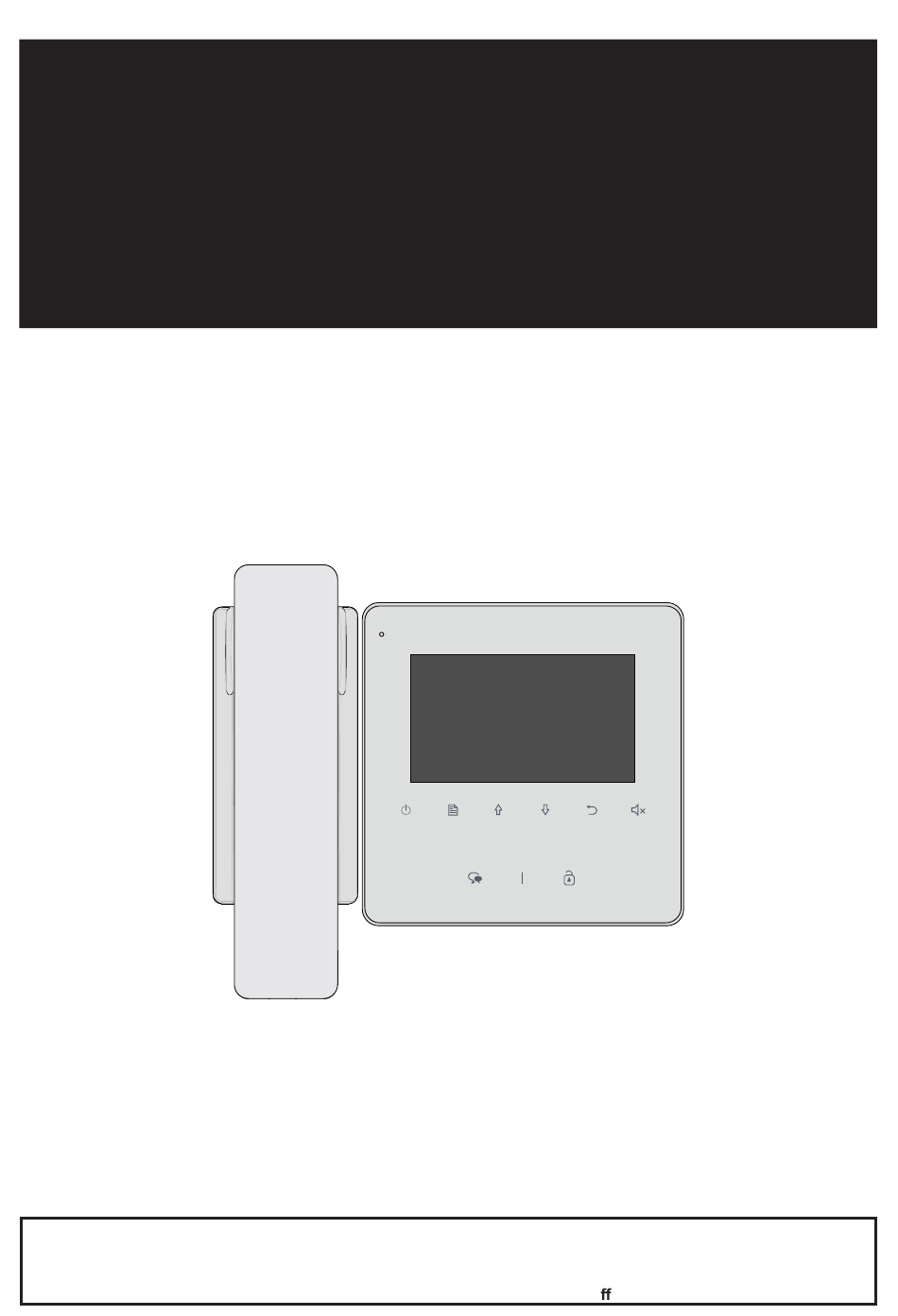

Page 1 DT-ENG-437-HS/D4-V1 / 202305 2 WIRE INTERCOM SYSTEM DT437-HS-D4 4.3" COLOR TFT MONITOR • Please read this manual carefully before using the product you purchase,and keep it well for future use. • Please note that images and sketch maps in this manual may be di erent from the actual product.
Page 2: Parts And Functions
1.Parts and Functions Microphone CD Screen D 401 R I NG Speaker Mute utton/Indicator Return utton Down utton Unlock utton Up utton Talk/Mon utton Close utton Menu utton Connection Port Handset ine Terminal Description SW+,SW-,Ring,GND,NC: Connect to DJ401. L1,L2: Bus terminal. DIP switches: Total 6 bits can be con gured.
Page 3: Monitor Mounting
2.Monitor Mounting 1. Use the screws to x the Mounting Bracket on the mounting box.( tting accesories includes a Bracket (Two pieces of 4X25 screws are needed for fastening the Mounting Bracket), Special 2 wire connectors to connect with Monitor) 2.
Page 4: Basic Door Release Operation
5. Basic Door Release Operation 1. Press CALL button on outdoor station, the Monitor rings, meanwhile, the screen displays the visitors' image. 2. Pick up handset (or press Talk/Mon Button , you can communicate hands free panel) with the visitor for 90 seconds. After nishing communication, hand up the handset (or press Talk/Mon button again/press Close...
Page 5: Don't Disturb Function
button to selete Button to selete Button to selete the Intercom Call Namelist Call item you want, then press item, then item,then Menu Menu Menu press button to press button to button to call. con rm. con rm. Calling. : A Monitor can be assigned as Guard Unit Monitor; when the Guard Call Guard unit Unit Monitor answers the call, conversation with the guard person is started.
Page 6 8.Divert Call Function When the monitor is in standby mode, press Menu Button to enter main menu page. Button to move upward / downward to select Divert Call item, press Menu Button to enter the divert options page, you have 3 items to select. Button to selete the item you Divert button to selete...
Page 7 9.Download Setup VDP Connect APP 1. Scan and download VDP Connect APP, or search “VDP Connect” on APP store. Android 2. Permit “VDP Connect” with internet access and camera, on monitor, in QR code page , and keep in QR code page. on VDP Connect APP, press on middle bottom, to scan QR code on monitor, and press “Save”.
Page 8: Light Function
11.Light Function When the monitor is in standby mode, press Menu Button to enter main menu page. Button to move upward / downward to select Light item, press Menu Button to enter the light Option page, you have 3 items to select. Light Button to selete the item you want, button to selete...
Page 9: Date And Time Setting
13. Date & Time Setting Note: This function should be supported by IPG units. When the monitor is in standby mode, press Menu button to enter main menu page. Use button to move upward / downward to select Setup item, press Menu button to enter the User setup page, select Ring Tune item, then press and hold Unlock button for 5 seconds to enter the Date and Time set page.
Page 10 14.3 The setting code and items Code Setting Item Code Setting Item 2419 Project Initialize 8505-8520 Divert Time (Need to connect DT-IPG unit) 2500 RM Parameter Set 9004-9005 United Door Ring or not 8004-8005 Guard Unit Enable/Disable 9015-9016 Intercom On/O 8006-8007 Panel on/o as slaver called 9017-9018...
Page 11 14.5 How to set the slave monitor address Maximum 4 monitors can be connected in one apartment,one master monitor together with 3 slave monitors, so you should set the address correctly.(note:must have one monitor to be set as master monitor) The code of 8000 is used to set the master monitor.
Page 12 14.7 User Code Setup In the DT system,every apartment must have a unique identification called User Code. The DIP swiches are used to configure the User Code for each Monitor. Bit-1 to Bit-5 are used to User Code setting. The value is from 1 to 32, which have 32 •...
Page 13: Basic Connection
15. Basic Connection door station GN D RING DI P 16.Screen and Volume Adjustment During monitoring or talking, press Menu Button, the will be displayed. Menu Button to select the adjustment item; use Button to decrease / increase the value, press Return Button to quit the adjust page.
Page 14: Speci Cations
17. Speci cations ● Power supply for indoor monitor: DC 20~28V ● Power consumption: Standby 0.17W; Working status 4.7W ● Monitor screen: 4.3 inch digital color TFT ● Display Resolutions: 480x3(RGB)x272 ● Video signal: 1Vp-p, 75Ω, CCIR standard ● Wiring: 2 wires, non-polarity ●...
Page 15 Note...
Page 16 Note...
Page 17 Note...
Page 18 The design and speci cations can be changed without notice to the user. Right to interpret and copyright of this manual are preserved. DT-ENG-437-HS/D4-V1...
