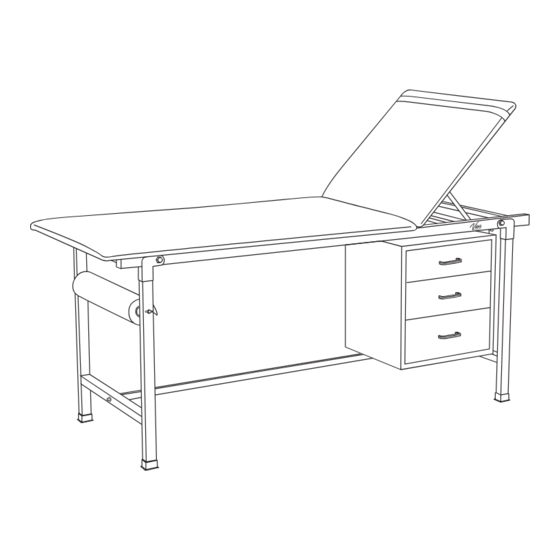

- Page 1 ADJUSTABLE EXAM TABLE WITH PAPER DISPENSER USER GUIDE ADI996-01-SERIES...
- Page 2 Thank you for your purchase. Viva Comfort maintains a strong practice of ongoing development of products and commercial research. We recognize that starting and maintaining a medical practice is expensive. We’ll help make the process cost- effective and elegant. Additionally, our team of specialists will ensure everything you need works as efficiently as possible, so you can effectively treat your clients.
-
Page 3: Table Of Contents
Table of Contents Parts List Hardware List Tools Required (But Not Included) Assembly Instructions How To Lower & Raise The Backrest Warranty Notes... -
Page 4: Parts List
Parts List Exam Table Frame Stainless Steel Crossbar Foldable Bar for Paper Dispenser Rack Drawers (x2) Backrest Paper Cutter Drawers... -
Page 5: Hardware List
Hardware List M8*55mm Screw & M8*15mm Screw (x6) Washer (x2) Spring Washer & M4*5mm Screw (x6) Washer (x6) Stainless Steel Handle for Drawers (x3) Tools Required (But Not Included) Phillips Head Allen Key Screwdriver... -
Page 6: Assembly Instructions
Assembly Instructions Step 1: A. Please remove all packaging from the Exam Table Frame (A), and lay it on a flat, clean floor. - Page 7 Step 2: A. Unfold the foldable legs on the underside of the table. B. Attach the Stainless Steel Crossbar (B) to the sidebars of the Exam Table Frame (A), as pictured. C. Insert two M8x55 mm Screws & Washers (1), one per side, as pictured.
- Page 8 Step 3: A. Attach the Foldable Bars (C) at the bottom of the Exam Table Frame (A) underneath the Backrest (F). a. The Foldable Bar (C) with two preinstalled nuts needs to be installed closest to the foldable leg, as pictured. B.
- Page 9 Step 4: A. Locate the Drawers (G) and place them on a flat surface. B. Thread two M4x5mm Screws (4) through the inside of a Drawer (G), and into a Drawer Handle (5), as pictured. a. Secure the screws in place with a screwdriver. C.
- Page 10 Step 5: A. Slide the Drawers (G) between the Foldable Bars (C). a. The Drawers (G) can face either the left or right, depending on preference. b. Lift the Backrest (F) up before proceeding to the next substep. B. Attach the Drawers (G) to the Folable Bar (C) located next to the foldable leg.
- Page 11 Step 6: A. Insert the Paper Dispenser Rack (D) through the predrilled holes on the side of each leg and secure it in place with the included wing nut on the end. Step 7: A. Insert the Paper Cutter (E) over the Backrest (F) as shown. B.
-
Page 12: How To Lower & Raise The Backrest
How To Lower & Raise The Backrest A. Lift the prop bracket on the back of the Backrest (F) to the suitable teeth groove based on your preferred tilting angle. -
Page 13: Warranty
Warranty Viva Comfort (the “Company” or “Tiger Companies”) warrants to the purchaser that the product will be free from defects in workmanship and materials for a period of 3 year from the date of purchase. The warranty period is not extended if we repair, replace, exchange, or provide a refund for the product (as determined in our sole discretion). -
Page 14: Notes
Notes... - Page 15 Notes...
- Page 16 ADI996-01-SERIES © 2023 Viva Comfort vivacomfort.com...
