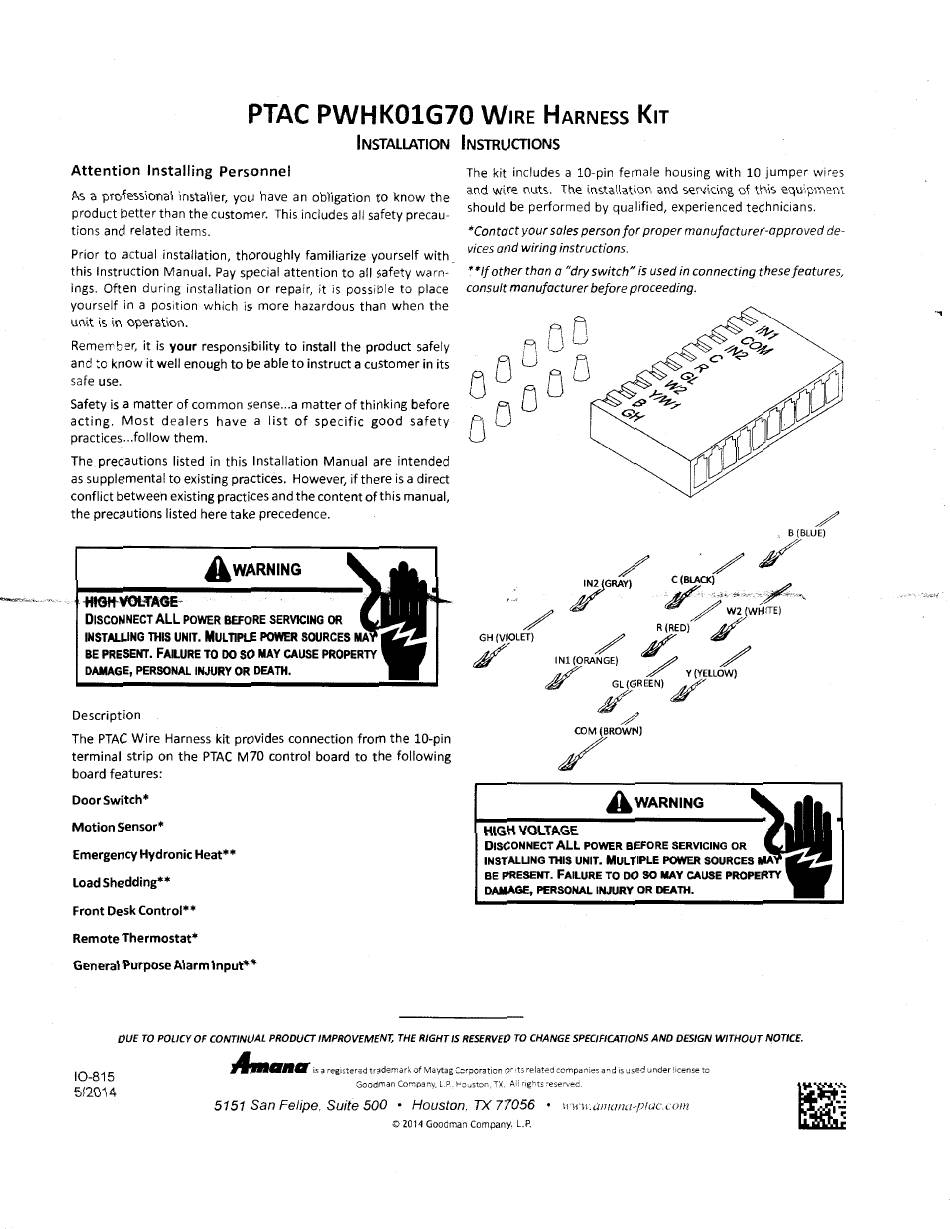

PTAC PWHK01G70 WIRE HARNESS KIT
INSTALLATION INSTRUCTIONS
Attention Installing Personnel
As a professional installer, you have an obligation to know the
product better than the customer. This includes all safety precau-
tions and related items.
Prior to actual installation, thoroughly familiarize yourself with_
this Instruction Manual. Pay special attention to all safety warn-
ings. Often during installation or repair, it is possible to place
yourself in a position which is more hazardous than when the
unit is in operation.
Remerrber, it is your responsibility to install the product safely
and
:o
know it well enough to be able to instruct a customer in its
safe use.
Safety is a matter of common sense ... a matter of thinking before
acting. Most dealers have a list of specific good safety
practices .. .follow them.
The. precautions listed in this Installation Manual are intended
as supplemental to existing practices. However, if there is a direct
conflict between existing practices and the content of this manual,
the precautions listed here take precedence.
AwARNING
-~--·~·- -·- - ~ A G E -
D1scoNNECT
ALL
POWER BEFORE SERVICING OR
INSTALLING THIS UNIT. MULTIPLE POWER SOURCE
BE PRESENT. FAILURE TO DO SO MAY CAUSE PROPERTY
DAMAGE, PERSONAL INJURY OR DEATH.
Description
The PTAC Wire Harness kit provides connection from the 10-pin
terminal strip on the PTAC M70 control board to the following
board features:
Door Switch*
Motion Sensor*
Emergency Hydronic Heat**
Load Shedding**
Front Desk Control**
Remote Thermostat*
General Purpose Alarm Input**
The kit includes a 10-pin female housing with 10 jumper wires
and wire nuts. The installation and servicing of this equipment
should be performed by qualified, experienced technicians.
*Contact your soles person for proper manufacturer-approved de-
vices and
wiring
instructions.
**if other than a "dry switch" is used in connecting these features,
consult manufacturer before proceeding.
u
!\
P\
L.)
u
/
-. B (BLUE)
/
/ /
;:;GRAY)
7°'),,
+-</•,
,,,:P /
W:JWHITE)
/ R (RED) ,,,./'
GH(VIOLET) /
I.
,B
, INl(ORANGE) -
,,,:P /
, , / f
Y(YELLOW)
D
GL (GREEN) ,
~
COM(BROWN)
/
HIGH VOLTAGE
AwARNING
~
DISCONNECT
ALL
POWER BEFORE SERVICING OR
INSTALLING THIS UNIT. MULTIPLE POWER SOURCES MA
fi
BE PRESENT. FAILURE
TO
DO SO MAY CAUSE PROPERTY
DAMAGE, PERSONAL INJURY OR DEATH.
.
DUE TO POLICY OF CONTINUAL PRODUCT IMPROVEMENT, THE RIGHT IS RESERVED TO CHANGE SPECIFICATIONS AND DESIGN WITHOUT NOTICE.
10-815
5/2014
