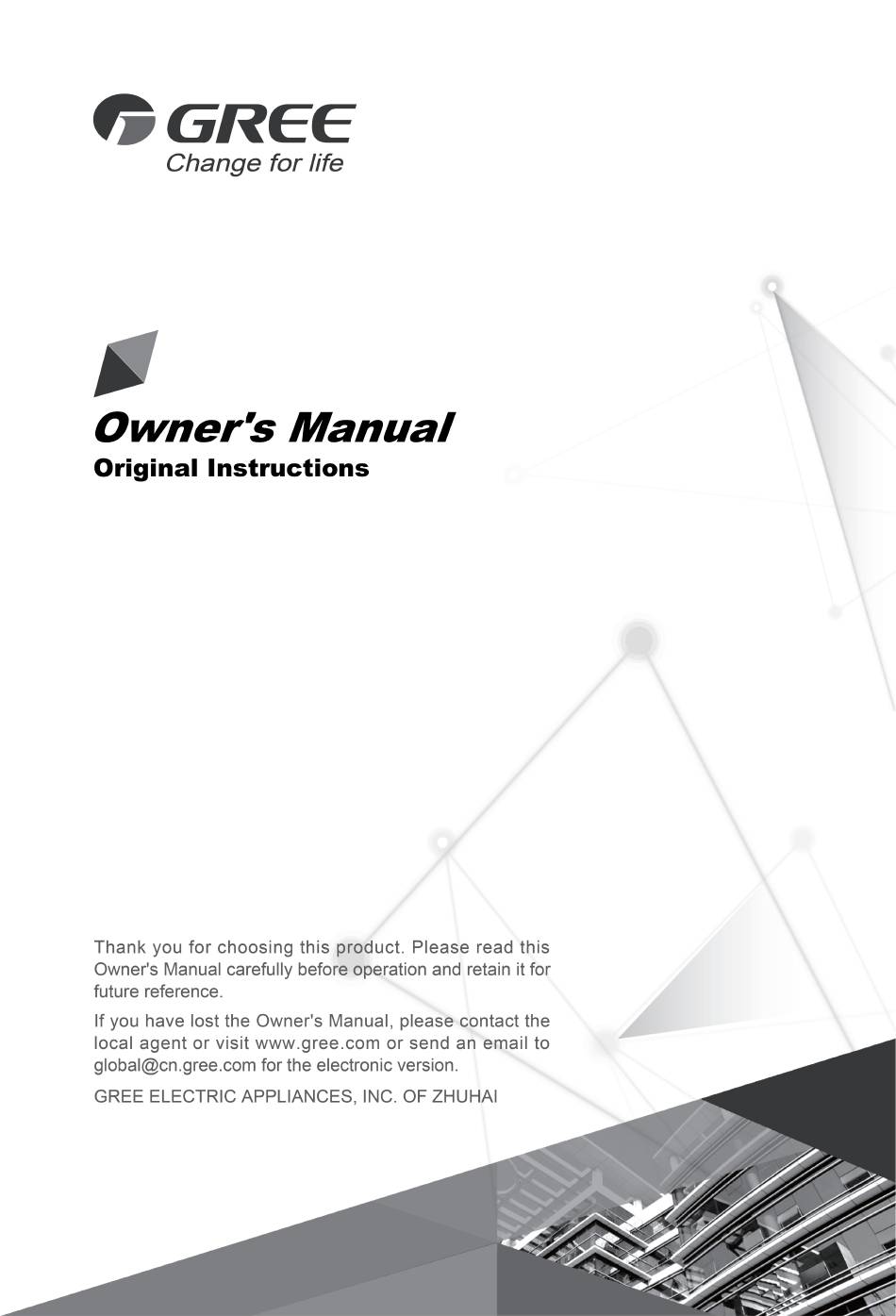

  • Page 1 Heat Pump Pool Heater Models: GRS-CP11Pd/NhA-D GRS-CP18Pd/NhA-D...
  • Page 2 To Users Thank you for selecting Gree product. Please read this instruction manual carefully before installing and using the product, so as to master and correctly use the product. In order to guide you to correctly install and use our product and...
  • Page 3 Exception Clauses Manufacturer will bear no responsibilities when personal injury or property loss is caused by the following reasons: (1) Damage the product due to improper use or misuse of the product; (2) Alter, change, maintain or use the product with other equipment without abiding by the instruction manual of manufacturer;...

  • Page 4: Table Of Contents

    Contents 1 Safety Notices (Please be Sure to Abide Them) ············ 1 2 Product Introduction ················································· 7 2.1 Working Principle and Characteristics ........7 2.2 Parameters ................8 2.3 Introduction of Components ..........10 2.4 Dimensions ................11 2.5 List of Accessories ............... 12 3 Installation ·····························································...

  • Page 5: Safety Notices (Please Be Sure To Abide Them)

    Heat Pump Pool Heater 1 Safety Notices (Please be Sure to Abide Them) SPECIAL WARNING: Be sure to comply with national gas regulations. Do not pierce or burn. Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
  • Page 6 Heat Pump Pool Heater Pregnant Women Beware! Soaking in water over 102℉(39℃) can cause fetal damage during the first three months of pregnancy resulting in the birth of a brain-damaged or deformed child. Before entering the spa or hot tub, users should check the water temperature with an accurate thermometer;...
  • Page 7 Heat Pump Pool Heater Please install according to the instructions. The installation work must be carried out by professional installation personnel. Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorizes their competence to handle refrigerants safely in accordance with an industry recognized assessment specification.
  • Page 8 Heat Pump Pool Heater (24) Improper operation may get the unit broken, hit by electric shock or cause fire. (25) Do not make the unit wet or electric shock may be lead, ensure that the unit will not be cleaned by water rinsing under any circumstance. (26) Once the unit is started, it must be operated for at least 6 minutes before shutdown, otherwise the service life of the unit will be affected.
  • Page 9 Heat Pump Pool Heater After the warranty period of the product, it is necessary to maintain or replace the power cord, heat exchanger and other key parts. It is not recommended to use it for a long time. Otherwise, our company may not be able to assume the relevant legal liability for all losses incurred.
  • Page 10 Heat Pump Pool Heater This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation.

  • Page 11: Product Introduction

    Heat Pump Pool Heater 2 Product Introduction 2.1 Working Principle and Characteristics The pool heat pump heater is a new, efficient, energy-saving and environmentally friendly product. It uses the principle of heat pump to drive the compressor with electric energy. Through the thermal cycle, the heat absorbed in the air is transferred to the water-side heat exchanger for water supply (hot water), or the heat absorbed by the water-side heat exchanger (cold water) is released into the air through the thermal cycle.

  • Page 12: Parameters

    Heat Pump Pool Heater 2.2 Parameters 2.2.1 Heat Pump Technical Data Model GRS-CP11Pd/NhA-D GRS-CP18Pd/NhA-D Heating High Air Temperature Btu/h 38000 60000 Capacity - Mid Humidity(63%RH) Water Temperature: Energy — 80.0℉ Efficiency Heating High Air Temperature Btu/h 40500 63000 Capacity - High Humidity(80%RH)
  • Page 13 Heat Pump Pool Heater ① The above maximum power or maximum current don’t include the power or current of external engineering water pump. ② The noise data is the average sound pressure value measured under high temperature and mid humidity heating conditions (Dry air 80.6℉ -Relative humidity 63% - Water inlet temperature 80℉) with a distance of 1m away from the unit.

  • Page 14: Introduction Of Components

    Heat Pump Pool Heater 2.3 Introduction of Components Fig. 2.3-1 Unit components...

  • Page 15: Dimensions

    Heat Pump Pool Heater 2.4 Dimensions Fig. 2.4-1 Dimensions Unit: in.(mm) Model GRS-CP11Pd/NhA-D GRS-CP18Pd/NhA-D 39.3(998) 43.8(1112) 21.8(554) 25.9(657) 37.2(945) 41.7(1060) 13.6(346) 14.6(371) 20.8(528) 22.4(570) 4.6(117) 6.3(160) 2.8(72) 3.2(82) 12.2(310) 13.4(340) 4.9(125) 5.5(140)

  • Page 16: List Of Accessories

    Number Specification or Diagram Drainage pipe connection Drainage pipe Tapping Screw Quick connector assembly Chassis rubber plug(for GRS-CP11Pd/NhA-D) Chassis rubber plug(for GRS-CP18Pd/NhA-D) 3 Installation 3.1 Installation Safety Precautions Please read the instructions for use, installation and maintenance carefully before use.
  • Page 17 Heat Pump Pool Heater The unit adopts environment-friendly, colorless, odorless and flammable R32 refrigerant. The room area for installation, operation and storage of combustible refrigerant unit shall be larger than the specified space area. Do not puncture or ignite the unit. The relevant gas regulations of the country or region where the installation is carried out shall be observed.

  • Page 18: Unit Installation Diagram

    Heat Pump Pool Heater branch leakage devices shall be installed. (17) The connection method of the unit and the power cord and the interconnection method of each independent component shall be subject to the circuit diagram attached to the unit body. (18) All wiring must use crimping terminals or single-core wires.

  • Page 19: Unit Installation Requirements

    Heat Pump Pool Heater Unit: in.(mm) Fig. 3.3-1 Dimensions of unit installation space 3.4 Unit Installation Requirements Ensure that the sound and air flow of unit operation will not affect others or animals and plants. Ensure that the unit has good ventilation. If a canopy is installed to protect the unit, the heat dissipation and absorption shall not be affected.

  • Page 20: Water System Connection

    Heat Pump Pool Heater If the unit is installed in the designated place with drainage requirements, choose the drain pipe mounting hole as shown in the following figure to clamp into the drainage joint to guide the drainage, other drainage holes are sealed with drain caps.
  • Page 21 Heat Pump Pool Heater exchanger of the unit, and shall be cleaned regularly. All water system pipelines, valves and pipe joints must be laid with insulation layer to reduce heat loss. Common insulation materials include soft polyethylene foam (PEF), glass wool, rubber insulation cotton, and the thickness of insulation layer shall be ≥30mm.

  • Page 22: Electrical Installation

    Maximum Minimum Model Power Type over-current protection circuit ampacity GRS-CP11Pd/NhA-D 208/230V ~ 60Hz GRS-CP18Pd/NhA-D 208/230V ~ 60Hz 3.6.1.2 Wiring Diagram The external wiring diagram of the unit is as follows. For the internal wiring diagram, please refer to the circuit diagram attached on the machine.
  • Page 23 Heat Pump Pool Heater GRS-CP11Pd/NhA-D GRS-CP18Pd/NhA-D ① Water pump control cord ② Display board cord Fig.3.6-1 External wiring 3.6.2 Electrical Wiring & Connection Requirements When the wires are connected, power cord, water pump control wire and the cable of display board come out from the wire outlet as shown in figure 3.6-2.
  • Page 24 Heat Pump Pool Heater Fig.3.6-3 Equipotential Bonding 3.6.3 Engineering Load Installation 3.6.3.1 Water Pump Connection The water supply of the pool machine is realized through the access of the engineering water pump, which can be installed according to the actual engineering needs.

  • Page 25: Commissioning

    Heat Pump Pool Heater Insert a screwdriver into the hole under the installation box, pry the wire controller out of the installation box, pull out the connecting line, pull out the docking terminal, and take out the wire controller. Cover the mounting box cover and fix the screws. Open the cover of the electrical box on the right board and connect the wire controller to the H1 &...

  • Page 26: Non-Fault Phenomenon

    Heat Pump Pool Heater Keep the valve fully open first. When the water supply pump of the unit is not connected to the heat pump unit, the water supply pump shall be connected and adjusted to the nominal flow of the unit before starting.

  • Page 27: Maintenance

    Heat Pump Pool Heater 6 Maintenance 6.1 Daily Maintenance In the use season of the pool heat pump unit, it is recommended to clean the filter every week. In the use season of the swimming pool, check that the electrical connection of the heat pump unit is safe and reliable, the water system pipeline is smooth and free of water leakage, there are no obstacles around the unit that affect the heat exchange, and the radiator-fan heat exchanger is clean before use.

  • Page 28: Control Board Description & Fault Code

    Fig. 6.2-1 Schematic diagram of removing the pipes of water outlet and water inlet for water drainage 6.3 Control Board Description & Fault Code 6.3.1 Main Control Board GRS-CP11Pd/NhA-D、GRS-CP18Pd/NhA-D Silk Screen Introduction Water pump control signal input Water pump control signal output...
  • Page 29 Heat Pump Pool Heater Silk Screen Introduction CN44 Low pressure switch CN11 Communication interface of external wire controller Communication interface of panel wire controller CN14 Drive communication 6.3.2 Drive Control Board (a) GRS-CP11Pd/NhA-D (b) GRS-CP18Pd/NhA-D...

  • Page 30: Main Control Fault Information

    Heat Pump Pool Heater Silk-Screen Introduction Power input zero line Power input fire wire Filter ground wire OFAN DC fan interface Electronic expansion valve interface High-pressure switch interface T-SEN Ambient temperature, discharge and pipe temperature sensor T-SEN1 Suction temperature sensor POWER Main control board power interface UART communication interface...

  • Page 31: Fault Information Table (Drive Board)

    Heat Pump Pool Heater Error Code Error Name Possible Causes Solution The ambient temperature Out of operating range exceeds the operating range of — the unit. Insufficient water flow; Water flow switch protection Water flow switch fault; Automatic Loose water flow switch wire. recovery after fault repair.

  • Page 32: Notices On Maintenance

    Heat Pump Pool Heater Error Error Error Name Error Name Code Code Low voltage protection/voltage Drive IPM module protection drop fault of variable frequency of variable frequency compressor drive DC busbar external fan Abnormal drive AC input Drive communication fault of voltage protection of variable main control &...
  • Page 33 Heat Pump Pool Heater Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants. 6.6.1.1 Checks to the Area Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimized.
  • Page 34 Heat Pump Pool Heater explosion. All possible ignition sources, including cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which flammable refrigerant can possibly be released to the surrounding space. Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no flammable hazards or ignition risks.
  • Page 35 Heat Pump Pool Heater 6.6.1.9 Checks to Electrical Devices Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with.
  • Page 36 Heat Pump Pool Heater 6.6.3 Repair to Intrinsically Safe Components Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use. Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere.
  • Page 37 Heat Pump Pool Heater If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of shut off valves) in a part of the system remote from the leak. Oxygen free nitrogen (OFN) shall then be purged through the system both before and during the brazing process.
  • Page 38 Heat Pump Pool Heater shall be followed. Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimize the amount of refrigerant contained in them. Cylinders shall be kept upright. Ensure that the refrigeration system is earthed prior to charging the system with refrigerant.
  • Page 39 Heat Pump Pool Heater Do not overfill cylinders (No more than 80% volume liquid charge). Do not exceed the maximum working pressure of the cylinder, even temporarily. (10) When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed off.

  • Page 40: After-Sales Services

    When oil is drained from a system, it shall be carried out safely. 6.7 After-Sales Services Any quality or other issues encountered in the purchased units, please contact the local Gree after-sales service department.
