Summary of Contents for Rack Pool Tables RACK TAURUS

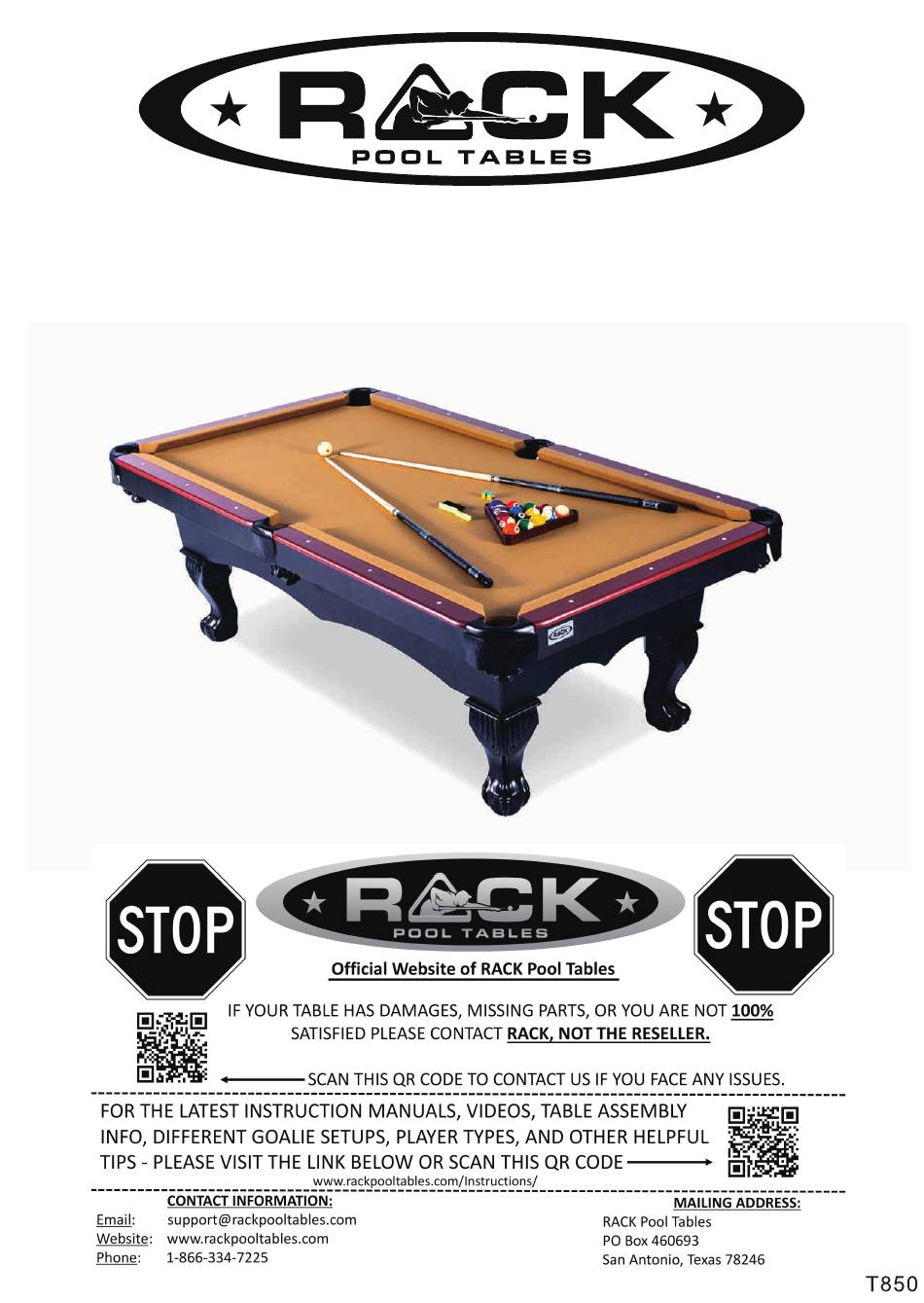

- Page 1 RACK TAURUS 8-FOOT BILLIARD/POOL TABLE...
- Page 7 Please insert the LEG END BRACE (#2) and LEG LONG BRACE (#3) onto the table frame as show in below FIG. NOTE: The frame of the table can be pushed by hand to align with the opening of the leg braces for insertion. Attach the LEG LONG BRACE to the LEG END BRACE using screws ( #12) as shown in below FIG.
- Page 8 Attach the LEG BRACES to the table frame using the JOINT ANGLE (#14), SCREWS (#11) and SCREWS (#13) as shown in below FIG. Attach the LEG BRACES to the back of the play court using the JOINT ANGLE (#14), SCREWS (#11) as shown in below FIG.
- Page 9 Attach the LEG TOP BOARD (#5) and the LEG SUPPORT (#6) to the assembled LEG (#4) using BOLT (#9) and WASHER (#10) as shown in below FIG. Attached the ASSEMBLED LEG to the LEG BRACES using BOLT ( #7) and WASHER (#8) as shown in below FIG.
