Summary of Contents for Wi-Gear iMuffs MB200

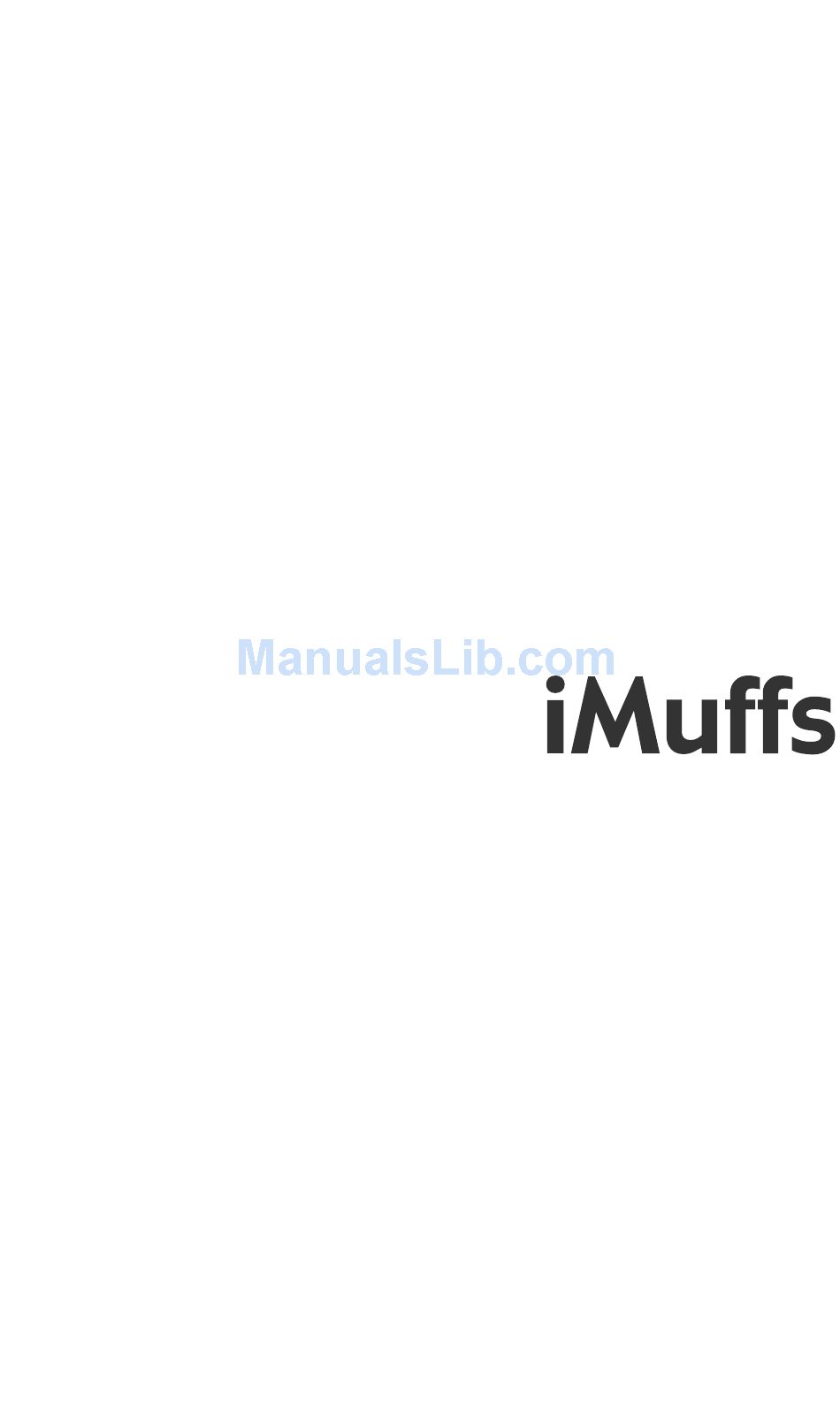

- Page 1 M B 2 0 0 M B 2 1 0 U S E R G U I D E...
-
Page 2: Table Of Contents
Contents Introduction What's included in this package? Product Features Getting Started Playing Music Bluetooth phone operation Troubleshooting Specifications Regulatory Information... -
Page 3: Introduction
Introduction Cut the cord today! Congratulations on purchasing iMuffs headphones for your iPod Soon you'll be enjoying these benefits: Wireless Freedom - Throw your iPod in your backpack and listen to your music wirelessly! No more cords to untangle or snag. Enjoy near-CD quality sound up to 30' (10m) away thanks to the Advanced Audio Distribution Profile (A2DP) and Bluetooth 2.0. -
Page 4: What's Included In This Package
Compatible with these models: iPod nano iPod mini iMuffs MB210 only. The iMuffs MB200 includes an iMuffs Adapter for iPod which plugs into the top of the iPod and is not compatible with the iPod nano or iPod with video. -
Page 5: Product Features
Headphone Features Familiarize yourself with all of the controls located on the right side of your iMuffs headphones. Please note that the two LEDs are visible only when lit. Power switch Previous/Rewind button Volume control/ button View of controls (right side) USB charging port Blue LED... - Page 6 Adapter Features The iMuffs Adapter is powered directly by the iPod. Plug the adapter into the appropriate port of your compatible iPod. See page 2 regarding iMuffs Adpater compatibility to your iPod. For MB210 Users: Plug the “iMuffs Dock Adapter for iPod” into the dock connector port located below the iPod.
-
Page 7: Getting Started
Getting Started Your iMuffs headphones are powered by a built-in rechargeable battery. Before using your iMuffs for the first time, you should fully charge the battery. Charging 1. Plug the smaller end of the USB cable into the USB charging port located at the bottom of the right ear cup of the headphones. -
Page 8: Playing Music
Playing Music The iMuffs Dock Adapter for iPod enables the iPod to transmit a stereo audio signal wirelessly to your iMuffs Stereo Bluetooth Headphones, with a range of 30 feet (10 meters). 1. Turn your iMuffs headphones on with the power switch. - Page 9 8. To increase the volume, rock the volume control up. To decrease the volume, rock the volume control down. The blue LED on the headphones will flash once whenever a button is pressed, to indicate that a Bluetooth signal has been transmitted. Accordingly, the LED on the adapter will flash whenever a Bluetooth signal is received.
-
Page 10: Bluetooth Phone Operation
Bluetooth Phone Operation Your iMuffs headphones work with Bluetooth-enabled phones. However, you will first need to pair the headphones with your Bluetooth phone before they work. Pairing with a Bluetooth phone 1. Unplug the adaptor from your iPod, and make sure your iMuffs headphones are powered off. - Page 11 Using with a paired Bluetooth phone When the phone rings (you will hear an audio tone in the speakers), answer the call by pressing the Play/Pause/Phone button. When the phone rings, reject the call by pressing and holding the Play/Pause/Phone button for 2 seconds. To end a call, press and hold the Play/Pause/Phone button for 2 seconds.
-
Page 12: Troubleshooting
Troubleshooting If you have problems using the iMuffs Stereo Bluetooth Headphones, this section may help. For further assitance, please visit www.wi-gear.com. Most problems can be resolved with a simple reset. Switch the headphones off, and then on. Unplug the adapter from the iPod, plug it back in. -
Page 13: Specifications
Bit Rate: 328 kb/s (High Quality) Audio Output Near CD-quality (44.1 KHz, 16-bit) Frequency response: 20Hz-20KHz Audio Input Apple iPod Dock Connector Line Out Built-in unidirectional microphone iMuffs MB210 only. The iMuffs MB200 requires an audio output from the Apple iPod Remote/Headphone Jack. - Page 14 2.2 oz (headphones) 0.4 oz (adapter) New headphones may have a slightly greater charge time of more than 5 hours for the first few charge cycles. iMuffs MB210 only. For iMuffs MB200 the actual weight of adapter is 0.3 oz.
-
Page 15: Regulatory Information
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. IMPORTANT: Changes or modifications not expressly approved by Wi-Gear Inc. could void the user's authority to operate the equipment. IC Compliance Statement The term "IC": before the certification/registration number only signifies that the Industry... - Page 16 © 2005-2006 Wi-Gear, Inc. All rights reserved. iMuffs, Wi-Gear, and the Wi-Gear logo are trademarks of Wi-Gear Inc. The Bluetooth word mark and logo are owned by the Bluetooth SIG, Inc. and any use of such marks by Wi-Gear Inc. is under license. iPod is a trademark of Apple Computer, Inc., registered in the U.S.
