Page 2
Disclaimer 1. Children under the age of 14 should use this Product under the supervision of an adult. 2. This Product is a multi-rotor aircraft that offers an easy flight experience when powered normally and with all components undamaged. Please visit the official website of Shenzhen HighGreat Innovation Technology Development Co., Ltd.(hereinafter referred to as "HighGreat Innovation") to obtain the complete User Manual as well as the latest instructions and...
Page 3
buildings. 2. Fly in conditions with wind speed below class 3. DO NOT fly outdoors during thunderstorms or typhoon weather. 3. Indoor environments can be complex. When flying indoors, please assess thoroughly whether the flight environment is safe. 4. Maintain a distance of at least 2 meters between the aircraft and any pedestrians when you operate the aircraft.
Laws and regulations Please comply with the local laws and regulations when using the aircraft to avoid possible injury and damage. Please observe the following rules: 1. DO NOT fly the aircraft in the vicinity of manned aircraft. Land your aircraft immediately when necessary.
Page 5

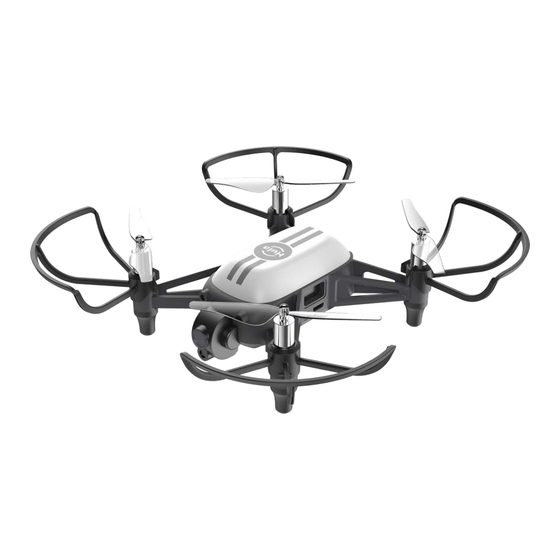

Hula is a programmable educational aircraft designed specifically for teenagers. It supports various terminal devices for programming flight using Scratch and can also be wirelessly controlled for flight through the Hula APP. The aircraft is equipped with a visual positioning system, gimbal system, image transmission system, obstacle avoidance system, and flight control system.
JPG, MP4 Chargin Input voltage 5V 3A g box (optiona Charging current 1.4 A IOS 15.0 or above and Android 11 or Hula APP for mobile Control above software Hula APP for PAD IOS 15.0 or above and Android 11 or...
Page 7
Hula software version 64-bit operating system (Windows 10 or for PC above)
Page 8
The above data is measured in a standard experimental environment, and may vary with the change of environment or firmware! The right of final interpretation belongs to Shenzhen HighGreat Innovation Technology Development Co., Ltd. Hula noise measurement (Normalized to 1 m from drone) schedule: Observation Hover Moving 1 m/s...
Solid green, No pulgged in or charged; Hula supports two charging methods. You can use a standard Micro USB cable to connect the battery's Micro USB port to your own USB 5 V charger for charging, which takes about 1 hour and 40 minutes. Alternatively, you can insert the battery into the dedicated charging box for charging, which takes about 1 hour.
Install the propellers When mounting, ensure that the gap between the bottom of the propeller cap and the motor is no bigger than needed to insert the propeller removal tool. Please note that the propeller blades with "75 mmR" markings should be installed on the top left and bottom right sides of the aircraft nose, while the propeller blades with "75 mm"...
Page 11
Aircraft operation guide 1. Download the Hula APP Click the URL link to download the APP on your PC: https://download.hg-fly.net/app/hula_pc.html Scan the QR code to download the APP on your mobile devices (Android/iOS): 2. For more instructions on usage and operation, please scan the QR code below to get the latest version of the electronic edition of the User Manual.
Page 12
Connect your PC/mobile device to the aircraft WiFi, and the initial password is 12345678. Run the Hula APP, and when the aircraft status indicator stays solid green and the APP indicates a successful connection to the aircraft, it means the aircraft is successfully connected.
Direct connection mode: Connect the PC/mobile device directly to the aircraft WiFi and control the aircraft using the Hula APP. Networking mode: Connect both the PC/mobile device and the aircraft to your own router WiFi. In networking mode, multiple aircrafts can network together to...
Page 14
5. Reset ① Reset hole 1. Press and hold the reset button inside the reset hole for 5 seconds, and the aircraft WiFi will be restored to factory settings. If the green light of the aircraft blinks fast after releasing, the aircraft is reset successfully. 2.
Page 15
6.Four-way obstacle avoidance adjustment Left obstacle avoidance adjustment ① knob Rear obstacle avoidance adjustment ② knob Front side obstacle avoidance ③ adjustment knob Right obstacle avoidance adjustment ④ knob Use a special screwdriver for obstacle avoidance adjustment knob, insert the adjustment 1、...
Page 16
7. Flight operation guide Run the Hula APP and enter the "Single driver" mode. The APP supports switching between the American hand mode and the Japanese hand mode. Takeoff/Landing Press and hold for 1.5 seconds to take One-button landing Use virtual joysticks to control flight...
Page 17
FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 18
Manufacturer: Shenzhen HighGreat Innovation Technology Development Co., Ltd. Shenzhen HighGreat Innovation Technology Development Co., Ltd Address: 2/F, Building 6, Yuanlingzi Industrial Zone, Hengping Road, Yuanshan Street, Longgang District, Shenzhen E-mail: service@hg-fly.com TEL: (+86)19924918168 The official website of HighGreat WeChat Official Account Innovation...
