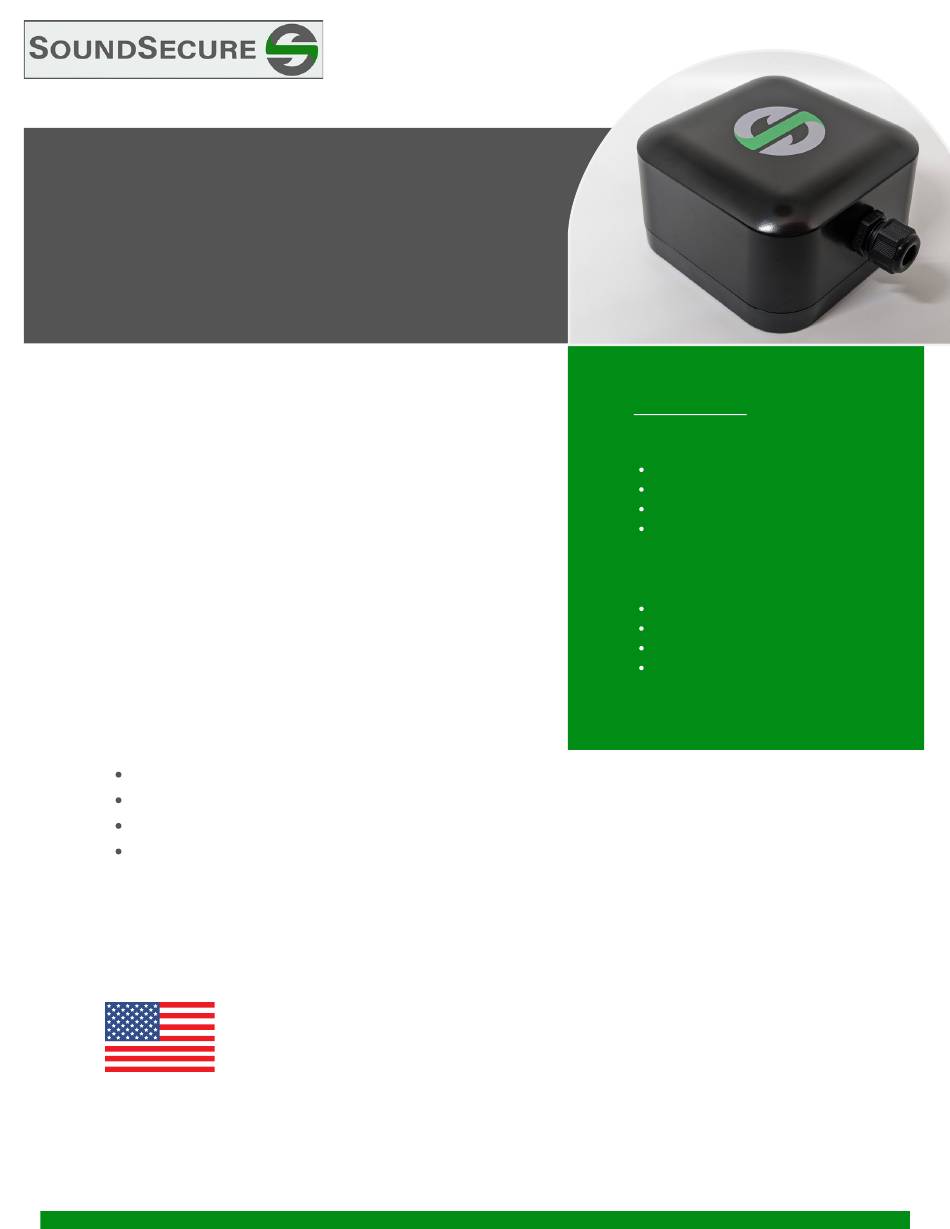

The SS-820 Bi-Directional Amplifier
Add Sound to Your Security System
Product Overview

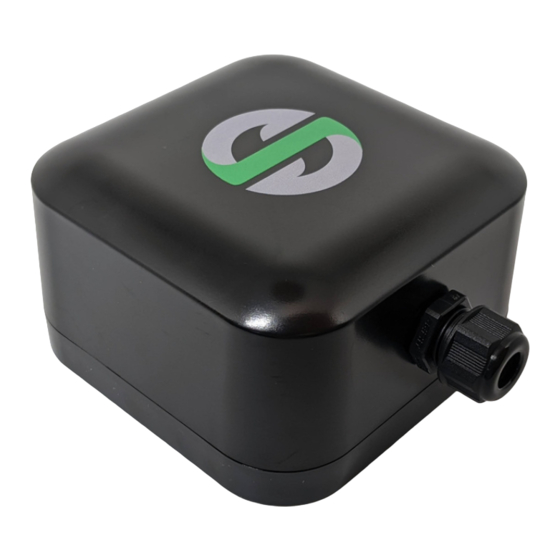

The SS-820 is a class D 40W max amplifier that
supports 2 way audio in security systems.
Designed to integrate with IP cameras and DVRs,
the SS-820 will drive an 8 ohm speaker or horn and
amplify a non-powered microphone. It is
compatible with most security technologies used
today.
Commonly Used In
The SS-820 is commonly paired with 8 Ohm
speakers and horns for use in:
Perimeter Protection
Car Dealerships
Parking Lots
Safe Cities
In these applications, audio is frequently used
for announcements, verbal warnings, and
emergency alerts.
The SS-820 Bi-Directional
Amplifier is proudly
Made in the USA.
(818) 254-8590
www.sound-secure.com
Technical Specifications
Supply Voltage
Current Drain
Output Power
Output Impedance
SNR
Efficiency
Operating Temp
Mic Output
Mic Impedance
Environmental Rating
Dimensions
Weight
Enclosure Material
P a g e 1 o f 3
www.sound-secure.com
At A Glance
Product
Class D 40W Max Amplifier
Pair with 8 Ohm Speakers
Supports 2 Way Audio
IP68 Enclosure
Uses
Perimeter Protection
Car Dealerships
Parking Lots
Safe Cities
10-26Vdc 12V Recommended
4A Max
40W Max
8 Ω
102 dB
92%
-40° - 85° C
0dB±3, Line Level
2.2 kΩ
IP 68
4.75"L x 4.75"W x 2.75"H
1 lb
Polycarbonate
