Wireless Contact Sensor User's Manual
Product Name: Wireless Contact Sensor
Model No: WCS-110
Input Power: 3V DC
Features Description:
1. Wireless transmission to the reed switch (opens / closes) the signal to the repeater, we can
see that the doors and windows open and close the current state, to prevent thieves
invasive.
2. Use CR2032 type Li-ion batteries, battery power is insufficient to inform the host will
automatically operate a very low power; the battery can be used for more than two years.
3. Easy link, when install at the first time to press the set button on the side of product
binding with repeater.

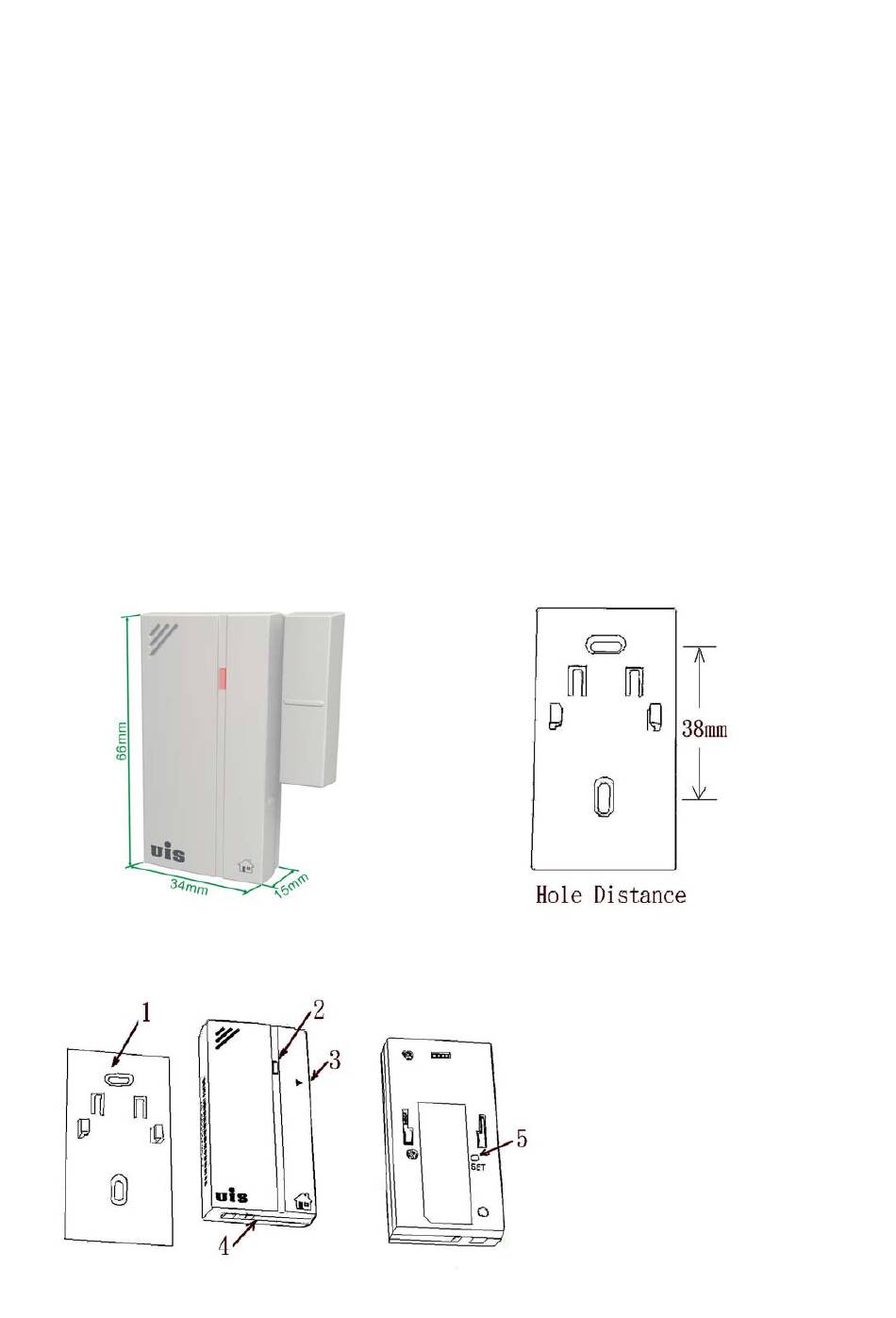

Outline Dimensions:
Feature Locator:
Installation Hints:
1.
Foundation stop plate
2. State of LED window
3. reed switch location
4. battery holder
5. (SET) Setting button
Advertisement
Table of Contents
Summary of Contents for Genius KYE Systems WCS-110
- Page 1 Wireless Contact Sensor User's Manual Product Name: Wireless Contact Sensor Model No: WCS-110 Input Power: 3V DC Features Description: 1. Wireless transmission to the reed switch (opens / closes) the signal to the repeater, we can see that the doors and windows open and close the current state, to prevent thieves invasive.
- Page 2 4. WCS-110 (Wireless Contact Sensor) by pressing the SET button at the bottom, and then press the WR-110 (wireless repeater) at the bottom of the SET button, Wait for 30 seconds to 1 minute.
- Page 3 7. WCS-110 (Wireless Contact Sensor) Foundation stop plate can as shown below, doors or window frames placed in a static position, the magnet body in the door or window frame fixed movable parts. 8. Under the Foundation stop plate can map the location of locking screw holes in order to pay Gum adhesive or screw fixed way, Easy DIY installation of WCS-110(Wireless Contact Sensor) Ontology and Ontology magnet fixed on the door or window frame.
- Page 4 Unable to link with WR-110 (wireless repeater). Solution : a. It needs to confirm the distance between WCS-110 (Wireless Contact Sensor) and WR-110 (Wireless repeater). Wireless connects in non-camouflage straight line effective range 10 meters. May pull closer between booth's distance tests...
- Page 5 FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
