1. Setup
► Remove remote from box.
► Remove battery cover plate on rear and remove battery to access and remove plastic battery isolating tab.
► Re-insert battery.
*Linx remotes should be kept out of reach of children at all times.
2. Set the number of Channels (for 15 channel remote)
2. Set the number of Channels (for 15 channel remote)
► Hold LEFT and RIGHT buttons simultaneously for 2 seconds.
► LCD should display C first, then 15 after about 3 seconds.
► Use LEFT or RIGHT to change the number of required channels.
► Press and hold STOP button for 3 seconds, "O" will appear, the new settings are saved.
(This hides the unused channels, which can be shown again by repeating the above steps)
3.Pairing Remote to Motor
►Select the desired Channel on remote (15 Channel Remote Only).
►Press and hold the button on the motor head for about 2 seconds
until the motor jogs and gives 1 long beep.
►Hold the STOP button on remote for 5 seconds (motor double
jiggles in response).
ONLY WORKS WITHIN 7 SECONDS OF POWERING THE MOTOR.
4. Check Motor Direction
► WARNING: MAKE SURE DIRECTION IS CORRECT BEFORE SETTING LIMITS.
UP should roll the blind fabric onto the roller.
► To change direction, hold the UP and DOWN buttons simultaneously for about 2 seconds.
► Motor jogs to confirm direction changed.
5. Setting Limits
First decide if you wish to set the inner limit manually or automatically. Manually setting the inner limits is the default setting.
If you wish to set your own inner limit, move onto steps 5a and 5b.
If you wish to set the inner limit automatically (ONLY ON FULL CASSETTE AWNINGS) use steps 5c and 5d.
5a SET INNER LIMIT MANUALLY
► Move to the inner limit position (blind will move in Step Mode).
► (Hold the button down for 3 seconds for Continuous Run Mode). BE CAREFUL AS LIMITS AREN'T SET YET.
► Hold UP and STOP buttons simultaneously for 3 seconds to set limit. (2 jogs + 3 beeps).
5b SET OUTER LIMIT MANUALLY
► Move to the outer limit position (blind will move in Step Mode).
► (Hold the button down for 3 seconds for Continuous Run Mode). BE CAREFUL AS LIMITS AREN'T SET YET.
► Hold DOWN and STOP buttons simultaneously for 3 seconds to set limit. (2 jogs + 3 beeps).
sales@australianawning.group

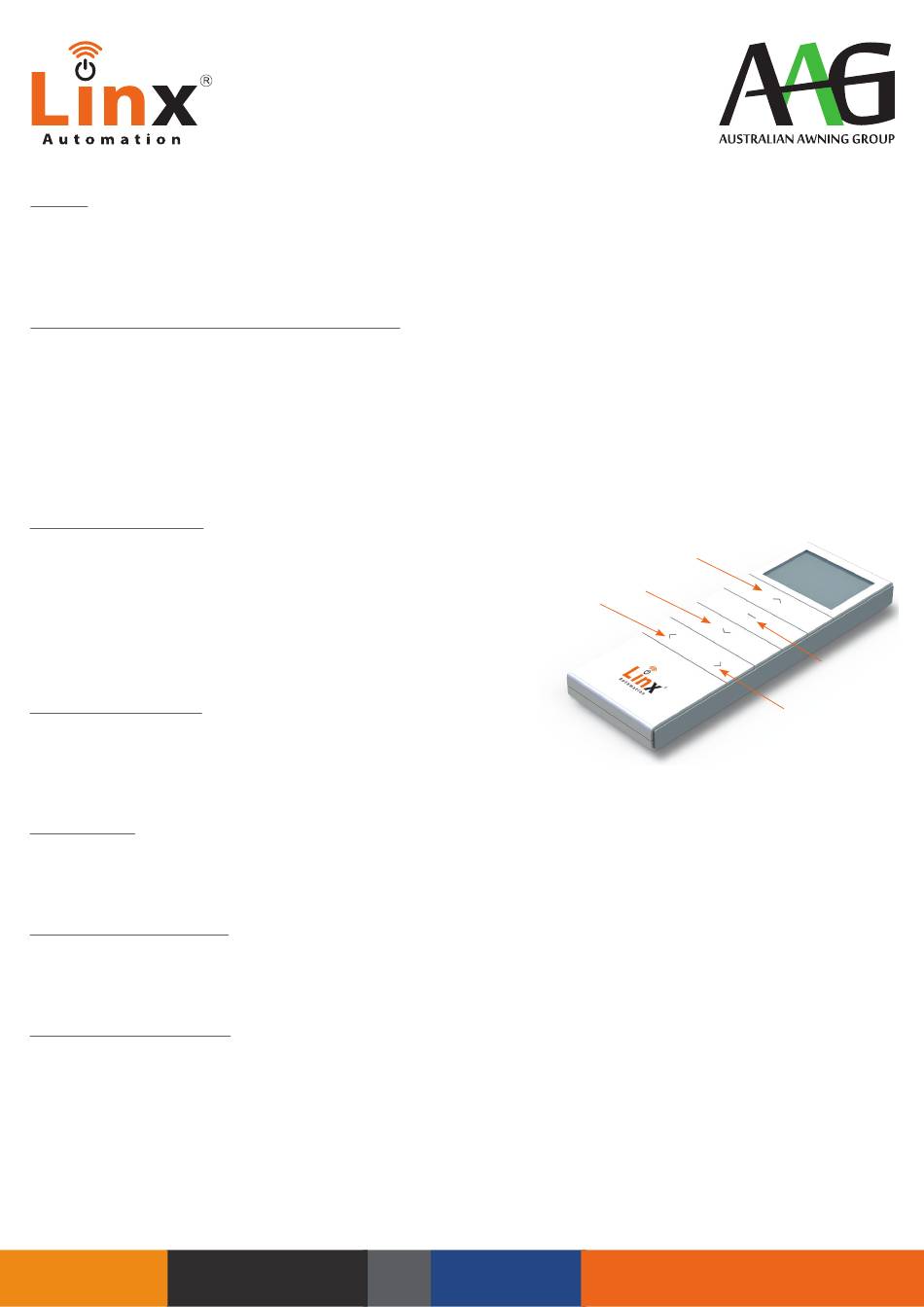

Linx® Argo 40/15
Motor Instructions
1300 791 010
UP Button
DOWN Button
LEFT Arrow
www.australianawning.group
linxautomation.com.au
STOP Button
RIGHT Arrow
Advertisement
Table of Contents
Summary of Contents for AAG Linx Argo 40/15
- Page 1 Linx® Argo 40/15 Motor Instructions 1. Setup ► Remove remote from box. ► Remove battery cover plate on rear and remove battery to access and remove plastic battery isolating tab. ► Re-insert battery. *Linx remotes should be kept out of reach of children at all times. 2.
- Page 2 Linx® Argo 40/15 Motor Instructions 5c SET THE INNER LIMIT AUTOMATICALLY (Full cassette awnings only) ►First set the motor to ‘Auto inner limit mode” Press P2, then UP then UP. Motor will jog twice and beep 3 times. ►If the motor makes 1 jog and a long beep, repeat the step above. ►Move to the outer limit position (blind will move in Step Mode).
- Page 3 Linx® Argo 40/15 Motor Instructions Enabling and disabling remote control ►To disable the remote response of the motor, press the P1 button on the motor head for 6 seconds (motor will jog at 2 seconds, then jog and beep twice at 6 seconds) Motor will not respond to the remote. ►To re-enable the remote response of the motor, press the P1 button on the motor head for 2 seconds until the motor jogs.
- Page 4 Linx® Argo 40/15 Motor Instructions FOR MOTORS FITTED WITH MOLEX IN LINE CONNECTOR PLUG. While fully compliant to Australian standards, Linx motors and their connections are not waterproof and must be protected from the elements, especially water. For safe installation, all the following points must be observed: The electrical connections must be performed by a licensed electrician.
