Summary of Contents for ATECH BCV 700

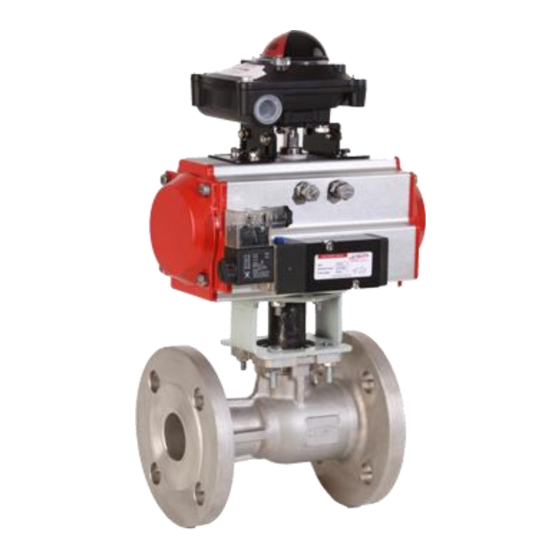

- Page 1 BCV 700 Automatic Bottom Blowdown Control Valve "Steam & Control Technologies" Installation and Operating Instructions Automatic Bottom Blowdown Control Valve BCV 700 IM-BCV70022K www.atech-ltd.com...
-
Page 2: Table Of Contents
"Steam & Control Technologies" CONTENTS 1. SAFETY INFORMATIONS 2. DESCRIPTION & FUNCTIONS 3. TECHNICAL SPECIFICATIONS 3.1. BCV 700 Bottom Blowdown Control Valve 3.2. LS 700 Limit Switch 3.3. YV Solenoid Valve 4. INSTALLATION & WIRING 4.1 Valve Installation 4.2 Wiring 4.3 Compressed Air Supply... -
Page 3: Safety Informations
BCV 700 Automatic Bottom Blowdown Control Valve "Steam & Control Technologies" 1. SAFETY INFORMATIONS Safety! Installation, commissioning and maintenance of this device must be done by a qualified person in compliance with the operating instructions. Otherwise device and related equipments may be damaged and personnel may be injured. -
Page 4: Description & Functions
"Steam & Control Technologies" 2. DESCRIPTION & FUNCTIONS The Bottom Blowdown Valve BCV 700 opens in response to a signal from the Smart Bottom Blowdown Controller BC 700 according to determined frequency and duration of the blowdown. The bottom blowdown valve enables a fast opening which is necessary for the blowing down. This fast opening causes a suction in the boiler whereby deposits solids are flushed out of the boiler. -
Page 5: Technical Specifications
Installation, commissioning and maintenance of this device must be done by a qualified person in compliance with the operating instructions. 4.1 Installation The automatic Bottom Blowdown Valve BCV 700 must connected to the outlet of the boiler bottom connection with "ARROW" as shown below. proper sealing must be used between flanged. Figure 2 Bottom blowdown valve connection. -
Page 6: Wiring
BCV 700 Automatic Bottom Blowdown Control Valve "Steam & Control Technologies" 4.2 Wiring Wiring between Smart Bottom Blowdown Controller BC 700 and namur solenoid valve, 3x1 mm cable can be used. Wiring between controller and limit switch, 2x1 mm normal cable can be used. - Page 7 BCV 700 Automatic Bottom Blowdown Control Valve "Steam & Control Technologies" 4.3 Compressed Air Supply To fit solenoid valve assembly to the Bottom Blowdown Valve actuator: Connect the compressed air supply to port 1 (¼" BSP) on the solenoid valve which is fitted to the actuator.
- Page 8 BCV 700 Automatic Bottom Blowdown Control Valve "Steam & Control Technologies" 5. COMMISSIONING • Be sure that all phase and neutral ends are connected to the right terminals. • Be sure that compressed air supply is connected to the right port on the Namur/Solenoid Valve.
- Page 9 BCV 700 Automatic Bottom Blowdown Control Valve "Steam & Control Technologies" NOTES: IM-BCV70022K www.atech-ltd.com Page...
- Page 10 BCV 700 Automatic Bottom Blowdown Control Valve "Steam & Control Technologies" NOTES: IM-BCV70022K www.atech-ltd.com Page...
- Page 11 BCV 700 Automatic Bottom Blowdown Control Valve "Steam & Control Technologies" NOTES: IM-BCV70022K www.atech-ltd.com Page...
- Page 12 BCV 700 Automatic Bottom Blowdown Control Valve "Steam & Control Technologies" ATECH ENDÜSTRİYEL ÜRÜNLER SAN. VE TİC. LTD. ŞTİ. İpkas San. Sitesi 16A Blok No: 37 İkitelli/İstanbul - Turkey T : +90.212.438 42 38 F: +90.212.438 42 58 E : servis@atech-ltd.com W : www.atech-ltd.com IM-BCV70022K www.atech-ltd.com...
