Summary of Contents for rovsun YPLA-08C

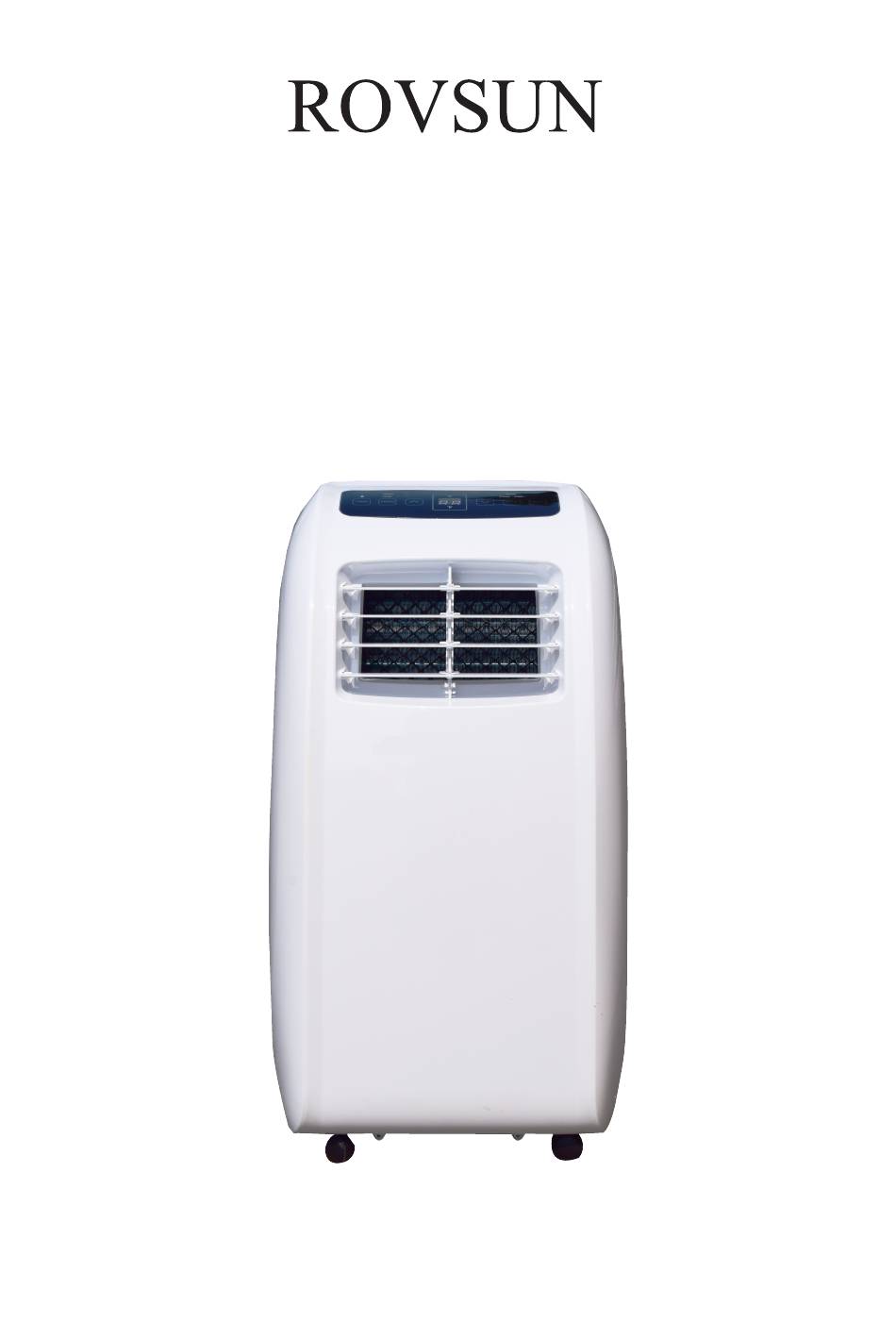

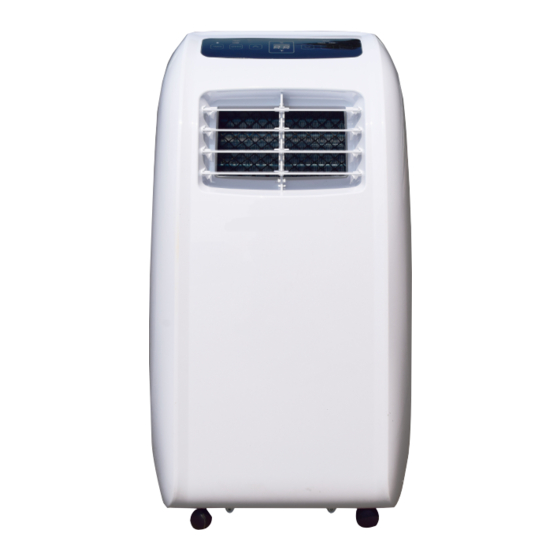

- Page 1 YPLA-08C Portable Air Conditioner User Manual MADE IN CHINA Thank you for selecting this high quality air conditioner. Please be sure to read this manual carefully before using it.
-
Page 2: Table Of Contents
Table of Contents User Agreement ..............1 Precautions ............3 Important Safety Tips .............. 7 Special Warning Product Description ........8 Name of Main Components and Parts ........9 Control Panel and Remote Control Product Usage ..........10 Placement and Installation ............ -
Page 3: User Agreement
User Agreement Icons appearing in this manual have the following meaning: This type of operation is forbidden for the health and safety of you and your family. The following events must be performed for the health and safety of you and your family. Precautions In order to ensure the machine's service life, environment is recommended for (7-35) ℃... - Page 4 Do not operate the unit using wet hands. Always use a soft cloth to clean the unit, Do not use the unit in a humid and do not use the wax, thinner or irritative environment. detergent. Please clean the filter screen frequently, Do not drink the condensation water and cleaning it at least once two weeks is discharged from the unit for your health.
-
Page 5: Important Safety Tips
Important Safety Tips The appliance shall be installed in accordance with national wiring regulations. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Do not damage the power cord, and do not Do not use a nonserviceable power cord use a damaged power cord or a power cord... - Page 6 Do not start or stop the unit by inserting Always turn off the unit before pulling or pulling out the power cord plug. out the power cord plug. Always keep the unit away from heat, Do not share a plug receptacle with a and keep out of the direct sun.
- Page 7 Do not allow water to enter the electrical Do not insert your fingers or hard objects parts of the unit. into the louvers at the air outlet. If water has entered the inside of the unit, Always turn off the unit and unplug the always turn off and unplug the unit before power cord before you wipe, clean, move contacting a qualified service technician...
- Page 8 Do not let children or any other special When gas leaks, always open the populations touch the unit in case of injury window for good ventilation before to them. If they are required to operate the rerunning the unit. unit, their operations must be subject to adult supervision.
-
Page 9: Special Warning
Special Warning Always place the unit on a level ground, Always maintain at least 50cm clearance and keep it vertically to ensure the space around the unit, and keep unobstructed at the air inlet or outlet grilles. normal working of its compressor. Do not use sprays or other solvents which Never use gasoline or other flammable can cause plastic deformation or even... -
Page 10: Product Description
Product Description Name of Main Components and Parts Handle Air Inlet (Right) Control Panel Louvers Casters Remote Control Air Inlet (Left) Air Outlet Drain Port Filter Handle Venting Kit Window Kit... -
Page 11: Control Panel And Remote Control
Control Panel and Remote Control HIGH Power Button Press the button to turn on/off the unit. Mode Selection Button Press the button repeatedly to cycle between the different modes: Cooling , Dehumidify, Fan. Temperature/Time Setting Buttons (Up and Down) When the unit is running in Air Conditioner mode, press the buttons to increase or decrease the preset temperature. -
Page 12: Product Usage
Product Usage Placement and Installation Placement Place the unit on the horizontal floor near a window. To keep good air circulation and achieve the optimum performance of the unit, maintain at least 50cm clearance space around the unit. BEST INSTALLATION 50cm(19.7inch) Installation Venting Kit... - Page 13 Step 1: Measure window size; Adjust the length of the window sealing plate to make it fit with the size of the window. When the length of the window seal plate is fixed, the length of the sealing plate is fixed by hand pull button. Locking opening Step 2:...
- Page 14 Small gap First insert Step 4: Clip the exhaust pipe assembly (exhaust port end) into the window seal panel assembly and screw it up. Overall Effect Drawing After Assembling...
- Page 15 Wrong Installation It is important for the exhaust hose to keep good ventilation. The wrong installation will affect the normal working of the unit. Avoid a sharp bend in the exhaust hose while installing. Make sure the air flows smoothly in the hose. Warning: The length of the exhaust hose has been specially designed for this type of unit.
- Page 16 Warning: you discover the battery leaks, do not use it. The chemical substances in batteries may cause burnt or other health hazards. If the liquid accidentally flows down to your skin or clothing, please immediately rinse with clear water. If you accidentally drink it, please immediately rinse mouth with clear water, and then seek for medical attention.
-
Page 17: Operating Procedure
Operating Procedure Air Conditioner Mode · Plug the power cord to a power socket and turn on the unit, the unit will be in Air Conditioner mode directly or by pressing the mode button, and at this moment the Air Conditioner mode icon lights up. ·... -
Page 18: Cleaning And Maintenance
Cleaning and Maintenance Water Drainage This product has a self-evaporative system. The condensing water will recycle to cool the condenser. This water-cooled mode not only can improve cooling efficiency, but also save energy. If the water basin within the unit is full, "FL" will flash on the display screen, accompanying with aural warning. - Page 19 Air filter It is recommended to clean the air filter once every two weeks, and if the indoor air quality is poor, the cleaning frequency should rise appropriately. Because the air filter is blocked with a dust, the airflow volume may reduce. Specific cleaning steps are as follows: As shown in the diagram below, first remove the air-inlet grille, and then remove the air filter.
- Page 20 Seasonal Maintenance If the unit is not intended for use for a long time, please maintain it according to the following steps: Remove the drain plug for water drainage. Run the unit for 2 hours in FAN mode until the inside of the unit is blow-dried. Turn off the unit and disconnect the plug from the power supply.
-
Page 21: Common Troubles And Diagnosis
Common Troubles and Diagnosis Intelligent Diagnosis of Troubles Error detecting code Multifunction detecting A malfunction in the coil temperature transducer A malfunction in the indoor temperature transducer Anti-freezing protection: When the coil temperature is below 0˚C, the unit stops its running in whole. When the coil temperature rises above 8℃... -
Page 22: Overall Dimension Of The Unit
Overall Dimension of the Unit The above technical parameters may be subject to modification without further notice. - Page 23 Additional warning for appliance with R32 refrigerant gas (refer to the rating plate for the type of refrigerant gas used) CAUTION ON FIRE READ THE MAUAL CAREFULLY BEFORE USING THE APPLIANCE R32 refrigerant gas complies with European environmental directives. This appliance contains approximately 7.23 Oz refrigerant gas Appliance shall be installed, operated and stored in a room with a floor area larger than 4m .
