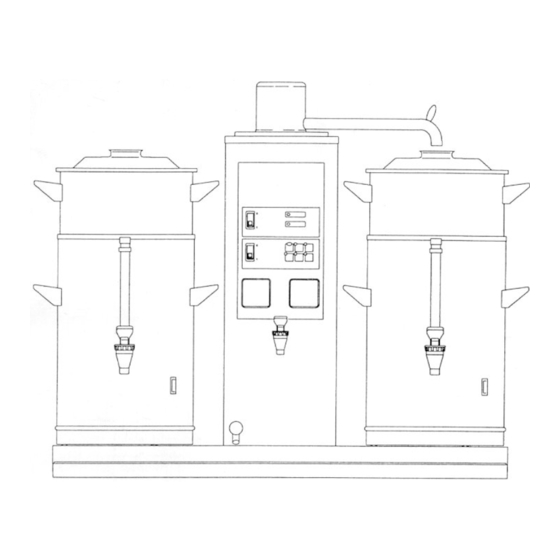

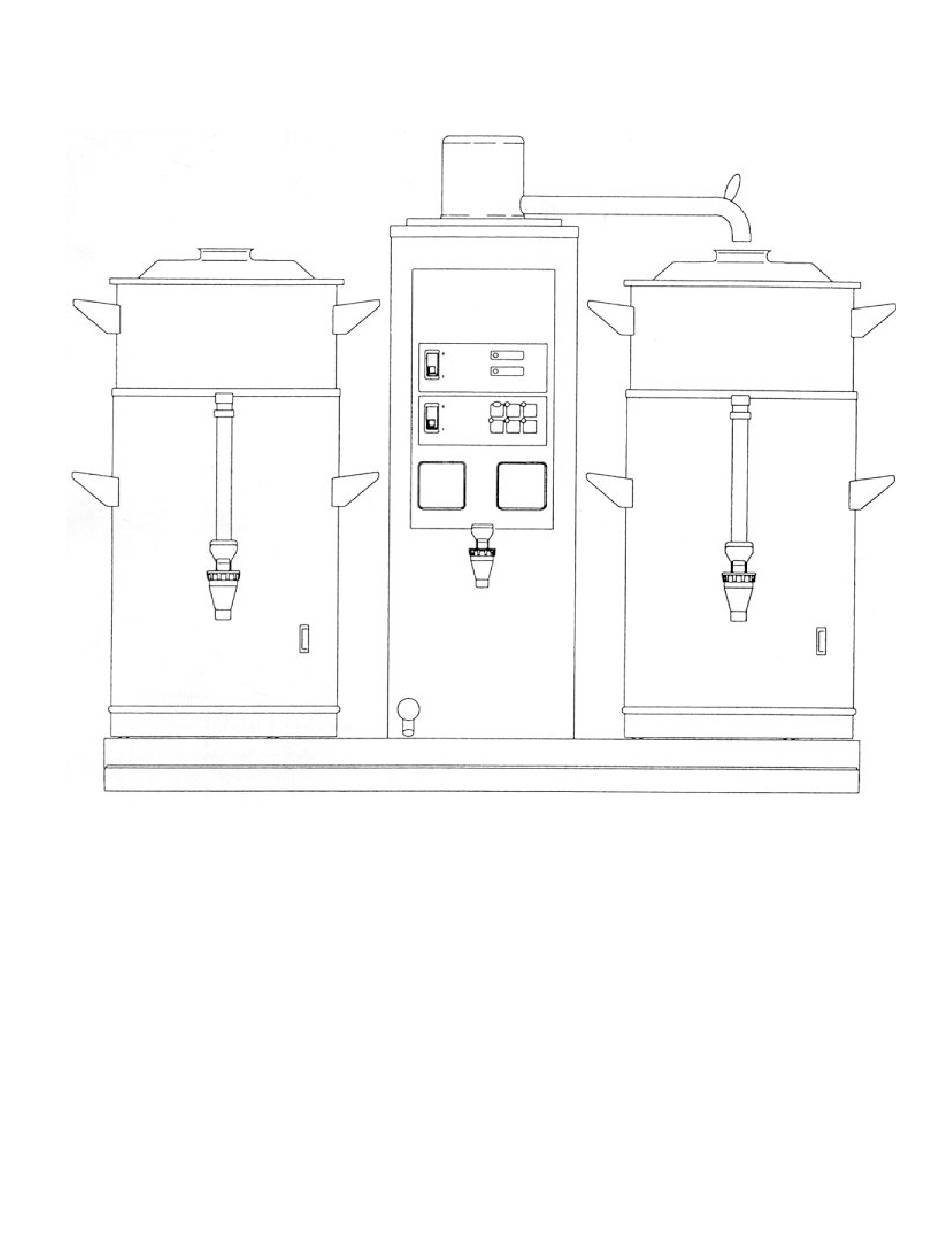

- Page 1 ROUNDFILTER COFFEE BREWER AND HOT WATER DISPENSER WITH CONNECTION TO THE WATER MAINS OPERATING INSTRUCTIONS 700.403.148 G...
- Page 2 14 16 13.1 13.7 13.2 13.6 13.3 13.5 13.4 Fig. 1...
- Page 3 B5HW B10HW B20HW 1145 1020 1226 Fig. 2...
- Page 4 13.1 "In operation" signal 4. Filter unit 13.2 "Temperature too low" signal 5. Container 13.3 Selection buttons 1 l. to 5 l. (B5HW) 6. Gauge 13.4 Selection buttons 2.5 l. to 10 l. (B10HW) 7. Tap 13.5 Selection buttons 5 l. to 20 l. (B20HW) 8.
- Page 5 Technical data Model : B5-HW B10-HW B20-HW Capacity hot water dispenser : 5,2 litres idem idem Capacity coffee brewer : 2 x 5 litres 2 x 10 litres 2 x 20 litres Cord length : ca. 140 cm idem idem Water connection : via hose with idem...
- Page 6 Warnings ! For safe operation of the water dispenser, pay 19. When turned in the right position again the close attention to the following points: stopped programme will continue. 1. When the appliance is in operation, some When the swivel-arm is not in the right components will get very hot.
- Page 7 (The B20-HW is fitted with rotary head stoppers INSTALLATION AND INITIAL OPERATING (A, fig 3). When the rotary head is pushed PROCEDURE against it, the outlet is positioned right above the spray lid.) When installing the appliance, keep the warnings from the INTRODUCTION in mind. Connecting the cable 1.
-
Page 8: Operation
Adjusting the hot water temperature of the Hot water dispencer The water temperature of the hot water dispenser can also be adjusted. Put the adjusting screwdriver supplied in the adjusting hole en turn it to the right for a higher temperature, to the left for a lower temperature. - Page 9 THE HOT WATER DISPENSER OVERFLOW PROTECTION DEVICE OF HOT 1. Set switch 13.7 (fig.1) in the "on" position. The WATER SYSTEM indicator light in the switch and the green and The hot water system is equipped with an overflow red pilot lights (no. 13.1, 13.2, fig.1) will light protection device.
-
Page 10: Hot Water Dispenser
descaler solution can be disposed of descaling as well.) through the normal drain system. 8. Switch off the appliance once the ten 10. Now press the selection button for 5 l., 10 l. minutes is up and draw off as much solution or 20 l. - Page 11 DESCALING INDICATION Note ! The descaling indicator works with a counter that When during 30 seconds no adjustments are keeps track of the amount of water that has made the control automatically goes bach to the passed through the heater. At the moment a normal operation mode for coffee making.
- Page 12 COLUMN WITH COMPUTRONIC PANEL OPERATION OF THE TIMER Using the timer, up to four operational periods per day can be set, within which the machine will prepare coffee or tea. When a quantity is programmed with the selector buttons outside the set periods or blocks, the machine will only begin to work when the next block is timed to switch on.
- Page 13 OPERATION Setting the timer is done as follows: 13. To set another block on the same day, 1. Ensure the timer is connected to the mains repeat instructions 9 through 12; to set a supply and set selector switch (3, fig. 10) to block on another day, follow instructions 7 the "timer"...
- Page 14 Coffee brewing machines © 10-1998...
