Amana MBVB Series Manual

Product Features
• Variable-speed ECM blower motor
• Integrated communicating
ComfortBridge™ Technology
• Commissioning and diagnostics via
on board Bluetooth with the CoolCloud™
phone and tablet application
• Advanced configuration of the airflow
and tonnage in communicating mode
• Provides constant CFM over a wide
range of static pressure conditions
independent of duct system
• CFM indicator
• Fault recall of six most recent faults
• Provides adjustable low CFM for efficient
fan-only operation
• Improved humidity and comfort control
• Built-in compatibility with multi-stage heat
pump and cooling applications
• UL 60335 2-40 Compliant
• AHRI certified; ETL listed
SS-AMBVC
Amana® is a trademark of Maytag Corporation or its related companies and used under license to Goodman Company, L.P., Houston, Texas.

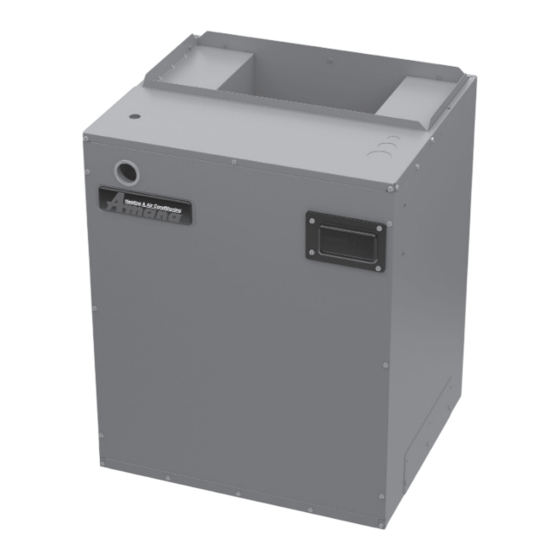

Multi-position, Variable speed
ECM-based, Modular Blower
Comfortbridge
Cabinet Features
• Blower section usable as electric heater
• Horizontal or vertical configuration capabilities
• 21" depth for easier attic access
• Foil-faced insulation covers the internal
casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Cabinet air leakage less than 2% at
1.0 inch H₂0 when tested in accordance
with ASHRE standard 193
• Cabinet air leakage less than 1.4% at
0.5 inch H₂0 when tested in accordance
with ASHRE standard 193
• Field Installed 3 kW - 20 kW electric
heater kits available
* Complete warranty details available from your local dealer or at www.amana-hac.com. To receive the
10-Year Parts Limited Warranty, online registration must be completed within 60 days of installation. Online
registration is not required in California or Québec.
in some cases.
www.amana-hac.com
MBVB
Compatible
TM
Contents
Air Handler Nomenclature ....................2
Heater Kit Nomenclature .......................2
Product Specifications ...........................3
Airflow Data ............................................4
Heat Kit Data ...........................................5
Dimensions ............................................6
Wiring Diagram .......................................7
Accessories .............................................8
The duration of warranty coverage in Texas and Florida differs
10/23
