Summary of Contents for DAYGAS LODOS Series

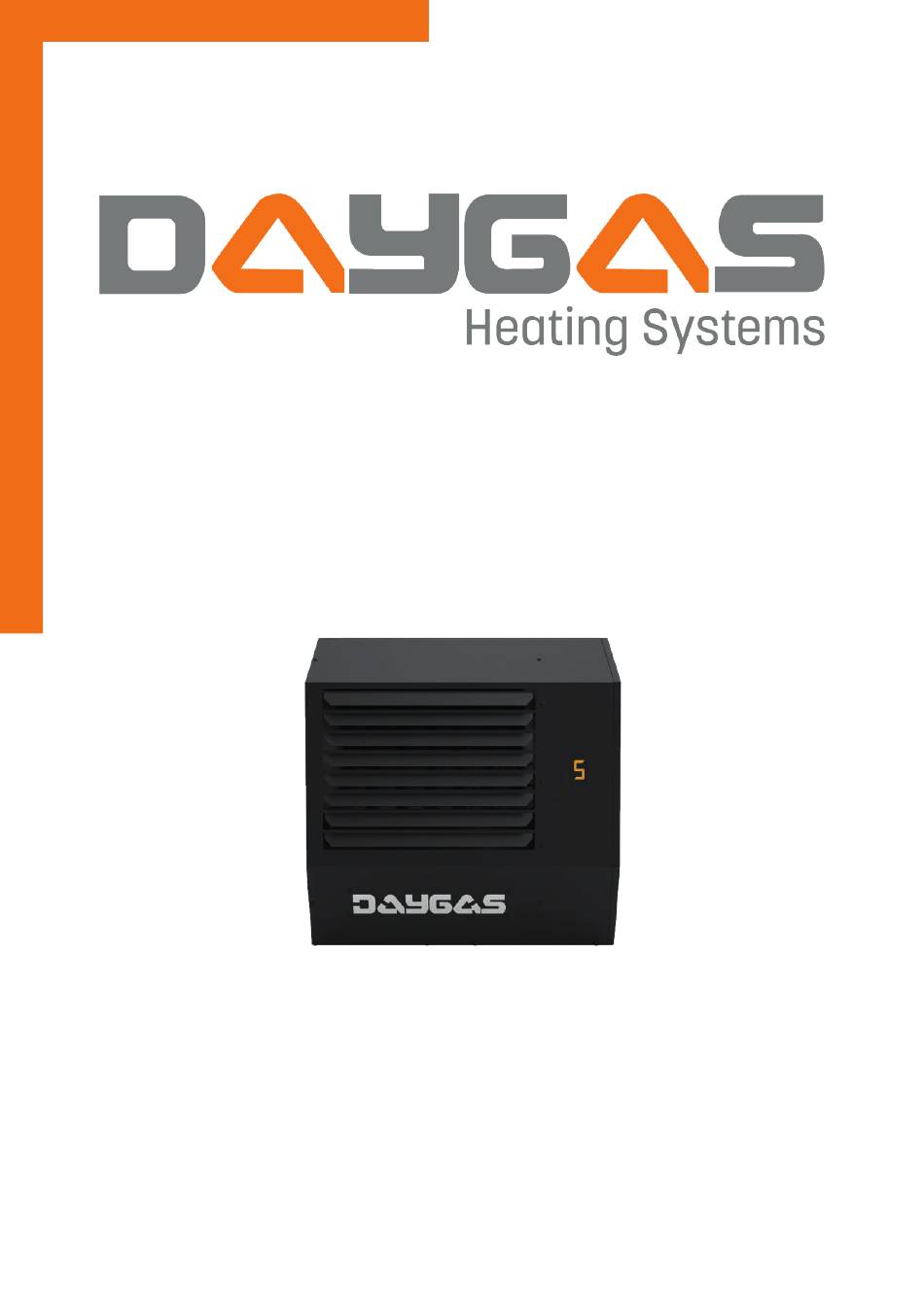

- Page 1 LODOS GAS UNIT HEATER USER MANUAL AND WARRANTY CERTIFICATE MANUFACTURER Daygas Heating Systems İnş. Tah. Ltd. Sti. Firuzköy Bulvarı No: 206, 34325 Avcilar / Istanbul 0 (850) 532 91 53 - 0 (212) 423 30 44 Avcilar VD. - 2710796836...
-
Page 2: Table Of Contents
Chimney Fan Technical Specifications ................. Lodos Series Technical Information & Lodos Series Main Equipment ..... Lodos Hot Air Generator Installation Steps ..............Required Conditions for Safe Connection and Operation of Lodos Series ..16 - 17 Commissioning Procedure ....................Technical Maintenance ...................... -
Page 3: Entry
Introduction Daygas heat systems were put in place in 2014 by young entrepreneurs in Istanbul and started producing gas heaters in open and closed areas. Since the Daygas organization, it has established unconditional customer satisfaction. Daygas brings to final consumers efficient, economical, quality and functional products that enhance innovation and R&D work, saving energy in the heating... -
Page 4: Lodos Series Purpose & Usage Areas
Purpose of Lodos Series Lodos gas unit heater series is designed for heating. » Production facilities for industrial and agricultural areas. Civil buildings where people stay temporarily. » Sports facilities. » Complying with current technical regulations, construction, sanitary, fire regulations and in accordance with the standards;... -
Page 5: Security Rules
In the area where the device will be installed, the grounding line in the electrical connection suitability should be checked. Grounding line in areas where it is not suitable must be taken separately. The device should never be operated in areas where the grounding line is not properly connected to the device. www.daygas.eu... -
Page 6: Lodos Main Technical Specifications & Gas Valve Technical Specifications
Normal close. Valve opening time. Second Valve closing time. Second Connection thread for inlet and outlet gas pipelines. G3/4’’ Permissible ambient air temperature. °C -15...+60 Weight. kg Rough dimensions. Length x Width x Height mm 115 x 65 x 93 www.daygas.eu... -
Page 7: Ignition Electrode Technical Specifications & Main Board Wiring Diagram
Distance between spark plug electrodes. mm 4 ± 1 Precision of combustion control automation. µA Ambient temperature. °C -15...+60 Mounting position. At the bottom of the boiler. Your Daygas Special Master Card Connection Diagram LIGHTERING GROUND IONIZERS AXIAL SOLENOID HOUSE... -
Page 8: Lodos Series Design And Working Principle & Gas Valve
1st stage gas pressure setting, largest stage gas pressure setting, home connection. 1st Stage Gas Pressure Adjustment 5th Stage Gas Pressure Adjustment Solenoid Bobbin Gas Outlet Pressure Measuring Point Gas Inlet Gas Outlet Fig. 1 www.daygas.eu... -
Page 9: Gas Valve Connection Requirements & Gas Valve Adjustment Procedure
Gas Valve Connection Requirements » Installation of valve block should be done by Daygas Authorized Service. Before connecting the valve block to the gas pipeline, the gas pipeline must be » cleaned and degassed. Gas valve and natural gas line connection must be made with G3/4” flex. -
Page 10: Lodos Series Parts & Ignition Electrode
Lodos Series Pieces LODOS SERIES PARTS Front panel Axial fan cable line Procestat Axial fan Procestat cable line Chimney fan Chimney spiral pipe Gas valve cable line Lighter Chimney fan cable line Motherboard C-14 socket Power cord Burner Injector Glass fuse... -
Page 11: Prosestat & Axial Fan
Rear protection cage in accordance with EN 60335-2-80 standards. » Balanced according to ISO 1940 standards. » It has a long bearing working life with the rotor. » With its slim, compact design, it occupies 50% less space than its counterparts » with its engine and propeller. www.daygas.eu... -
Page 12: Axial Fan Technical Specifications & Chimney Fan
While the maximum temperature for the continuously transferred waste gas is 180°C, it can instantly transfer a maximum of 240°C of waste gas. It has successfully passed the dynamic and static balance tests and can continu- ously transfer high pressure air with minimum vibration. www.daygas.eu... -
Page 13: Chimney Fan Technical Specifications
Frequency 50 Hz Input power 44 W Transfer 1850 rpm Flow m³/h 410 Pa Pressure 38 dB Noise level Min.- Max. ambient temperature ° / +180° 1,3 kg Weight Aluminum Body Galvanized steel sheet Protection class Motor insulation class www.daygas.eu... -
Page 14: Lodos Series Technical Information & Lodos Series Main Equipment
Lodos Series Technical Specifications Lodos Sıcak Hava Üreteci Serisi Dimensions Weight Heating Area Heating Area Capacity Sound Flow Consumption (mm) (kg) (m²) (m³) Model m³/h m³/h Gross m³ Lodos 16 1,52 1,12 3300 Lodos 20 1,90 1,41 3300 Lodos 25... -
Page 15: Lodos Hot Air Generator Installation Steps
20 cm 20 cm When installing the Daygas Lodos hot air generator, pay attention to leave a 20 cm space from the right, left and top of the device shown in the figure. If the device is to be mounted above the ground, if you use a foot other than the Daygas Lodos mounting foot shown in figure 1, make sure that the foot you will use and the floor on which the foot will be fixed are capable of bearing the weight of the device. -
Page 16: Required Conditions For Safe Connection And Operation Of Lodos Series
Make sure that the assembly of the device and its parts (top cap, mounting foot) » are complete. Use the heater for the SAFE CONNECTION AND OPERATION OF THE LODOS SERIES in » this manual. Perform the operation taking into account the requirements specified in the “CONDITIONS”... - Page 17 After that, it is necessary to find and eliminate the fault and perform a test run of the heater according to the troubleshooting and troubleshooting section in the manual. www.daygas.com.tr...
-
Page 18: Technical Maintenance
Attention! In seasonal conditions of use of the heater, in case of long inactivity of the device, it is recommended to cover the hole in the mixing tube with cloths or to take various measures to prevent the penetration of insects and other organic substances. www.daygas.eu... -
Page 19: Safety Precautions To Be Followed When Using Lodos Series
Lodos Series Safety Precautions While Using When using heaters, the requirements of technical regulations, construction, » plumbing, fire regulations and standards must be met. The heater must be grounded. The heater is not allowed to be turned on without »... -
Page 20: First Run & Troubleshooting & Troubleshooting
For malfunctions of your device other than the ones described above, please contact the manufacturer of the device and the service without intervening. Interfering with malfunctions other than the ones above may have dangerous consequences. www.daygas.eu... -
Page 21: Maintenance And Warnings
Do not leave flammable or combustible materials near the combustion area and do not squeeze them during the operation of your device. Never let your device come into contact with water. When cleaning the paint, use a slightly damp cloth and make sure that your device is absolutely cold. www.daygas.eu... -
Page 22: Warranty Certificate
WARRANTY CERTIFICATE... -
Page 23: Warranty Conditions
The consumer may apply to the consumer arbitration committee or the consumer court in the place of residence or the consumer transaction, in case of disputes that may arise regarding the use of his rights arising from the guarantee. www.daygas.eu... -
Page 24: Matters Out Of Warranty Coverage
(for example, for the purpose of providing process heat instead of space heating), In case the device(s) are first started up outside of Daygas Heating Systems or Daygas authorized service, In case of malfunctions and damages arising from electrical voltage fluctuations... - Page 25 ..........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 26 E-Mail: Authorized Stamp: Authorized Stamp: Authorized Signature: Yetkili Signature: MANUFACTURER Daygas Heating Systems İnş. Tah. Ltd. Sti. Firuzköy Bulvarı No: 206, 34325 Avcilar / Istanbul +90 (850) 532 91 53 - +90 (212) 423 30 44 Avcilar VD. - 2710796836...
- Page 27 Authorized Stamp: Authorized Stamp: Authorized Signature: Authorized Signature: Authorized Signature: MANUFACTURER Daygas Heating Systems İnş. Tah. Ltd. Sti. Firuzköy Bulvarı No: 206, 34325 Avcilar / Istanbul +90 (850) 532 91 53 - +90 (212) 423 30 44 Avcilar VD. - 2710796836...
- Page 28 MANUFACTURER Daygas Heating Systems İnş. Tah. Ltd. Sti. Firuzköy Bulvarı No: 206, 34325 Avcilar / Istanbul 0 (850) 532 91 53 - 0 (212) 423 30 44 Avcilar VD. - 2710796836 FACTORY Firuzköy Bulvarı No: 206, 34325 Avcilar / Istanbul...
