  • Page 1 Surge Protective Devices Quick Start Guide Active Surge Monitor (ASM)

  • Page 2: Safety Information

    Please note Electrical equipment should be installed, operated, serviced and maintained only by qualified personnel. No responsibility is assumed by ASCO Power Technologies for any consequences arising out of the use of this material. A qualified person is one who has skills and knowledge related to the construction, installation, and operation of electrical equipment and has received safety training to recognize and avoid the hazards involved.

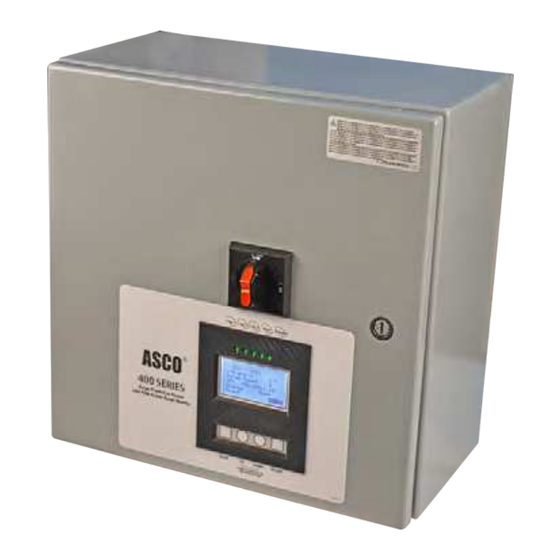

  • Page 3 ASCO Power Technologies makes it easy to monitor your electrical system by integrating its advanced Active Surge Monitor package within its SPDs. The web-based device allows the end-user real time power quality measurements, logged events, statistical summaries and premium power protection.

  • Page 4: Communication Connections

    If all LEDs are not solid green at Green = Normal Operation power-up, verify source voltages and mechanical connections. Amber = Reduced Protection If the alarm condition persists, call ASCO at 800-237-4567. Red (steady) = Unit protection has reached end of life Red (flashing) = Active Event...

  • Page 5: Display Screens

    Display Screens The Active Surge Monitor system provides numerous Display Screens. Each screen provides real-time information concerning the existing power quality, past recorded events and networking. Models 440/445 Models 460/465 Network Connection - System Ethernet Port > to Hub > to PC Connecting the system to a network is the simplest method of connection.

  • Page 6: Web Server

    Web Server The Active Surge Monitor system web server and web pages contain all of the information available on the LCD display as well as some additional features. Various settings, thresholds, & functions can be modified, enabled or disabled using the systems webpage/Ethernet function. To open system webpage Open a web browser and enter the systems IP address (found on the Display Screen) into the address bar and press Enter.
  • Page 7 IP Settings Default Settings - Locate the system IP settings on the “Home” and “Networking” screens. The factory default IP configurations are as follows: IP Address: 192.168.1.10 Subnet Mask: 255.255.255.0 Gateway: 192.168.1.1 In most cases, the user will need settings other than this. If so, please follow instructions detailed below (Manually Assigning IP Settings).
  • Page 8 While every precaution has been taken to ensure accuracy and 14550 58th Street North completeness in this literature, ASCO assumes no responsibility, Clearwater, Florida 33760 and disclaims all liability for damages resulting from use of this P (800) 237-4567 information or for any errors or omissions.
