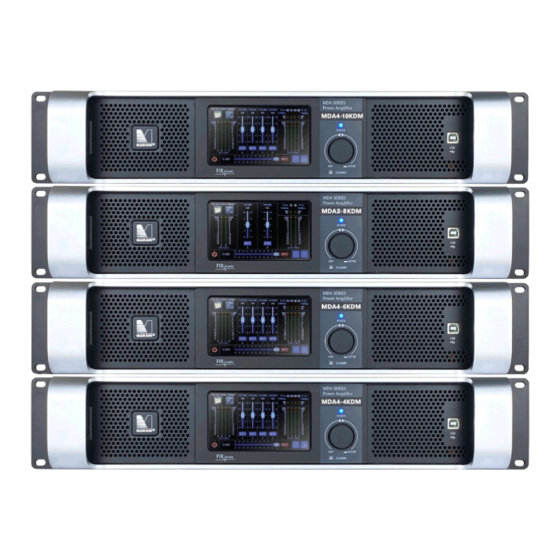

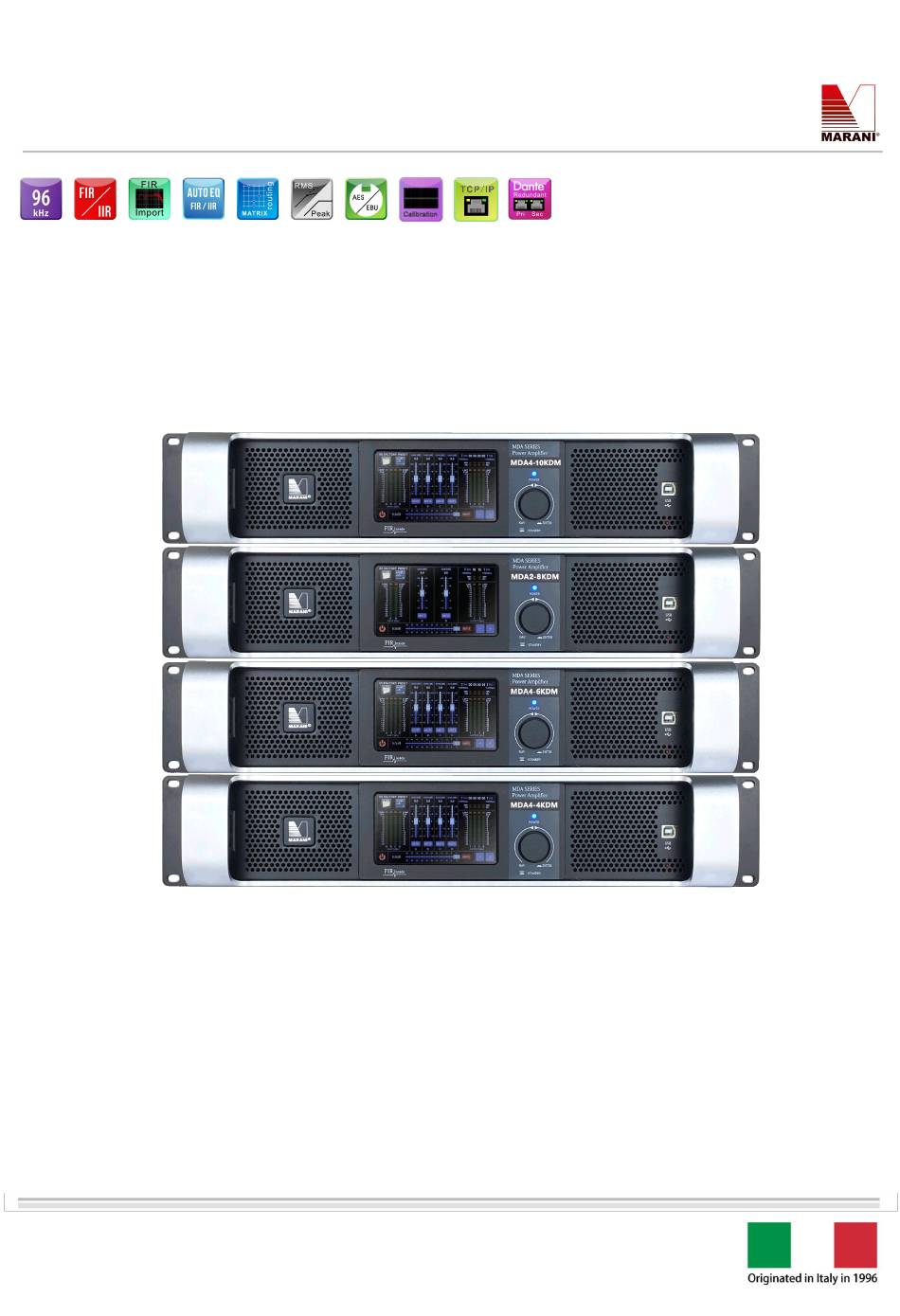

- Page 1 Digital power amplifier MDA-KDM series MDA-KDM series digital power amplifier www.marani-proaudio.com E-mail: info@marani-proaudio.com...
- Page 2 Digital power amplifier MDA-KDM series Important Use Safety Introduction Firstly, thank you for purchasing and using our company's products. In this user manual, you will have a detailed understanding of the functions and usage of this device. Before you power on, it is necessary to read the following content.
- Page 3 ③USB interface, use Type-B2.0 cable to connect the power amplifier. (Note: The following systems in WIN7 require manual installation of drivers. Address: www.marani-proaudio.com) ④ Analog signal input interface. Before connecting to the signal, please ensure that the amplifier is in a mute or minimum volume state.
- Page 4 The MDA-KDM series supports two IP addressing modes: STATIC addressing or DHCP mode (default). The amplifier addressing mode has to match the computer network settings. For DHCP mode connections, the IPv4 address option of the computer network adapter has to be Dynamic (Automatic);...
- Page 5 COM port number is greater then 72, manually change it to a free COM port in the range 1...72. If the amplifer USB driver cannot be properly recognized, please try using another USB port of the computer or reinstall the driver. Download address: www.marani- proaudio.com (Note: Drivers below WIN7 need to be manually installed)
- Page 6 Display screen management: The MDA-KDM series power amplifier has a 4.3 inch capacitive touch screen, by which users can easily recall presets, switch input source, set input gain/mute as well as channels linkage or network settings, and monitor the main amplifier status information.
- Page 7 Digital power amplifier MDA-KDM series Software management: ⑪ ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ①New Project ⑥Connect all offline devices in the device list ⑦Disconnect all currently connected devices ②Load project Files from a Computer 程...
- Page 8 Input source selection and input source hot backup switch: The MDA-KDM series power amplifiers support analog, digital, and Dante signal inputs. They also support the input source hot backup function, allowing users to specify backup signals for the primary source. When the autoswitch function is enabled (“ON”), the amplifier detects any signal loss on the primary (first) source, due for example to a...
-
Page 9: Noise Generator
Signal Routing The MDA-KDM series power amplifiers have a 4X4 input/output routing matrix (with the exception of the MDA2- 8KDM, that has a 2x2 matrix), allowing users to mix, with a suitable level, any input signal into one or more output channels. - Page 10 Digital power amplifier MDA-KDM series Level monitoring interface The level monitoring interface shows input and output channels level meter, as well as the main amplifier status information. It also allows to set channels gain and mute. The Vu-Meter section shows the level of the inputs (before gain “BG”) and of the outputs (after process “AP”) Input and output channels level can be adjusted within the range -12dB~+12dB with a 0.1dB step.
- Page 11 MDA-KDM series SPEAKER DRIVE: it shows the current selected load for each output channel. Power amplifier load status, MDA-KDM series amplifier supports 100V, 70V constant voltage and 8 Ω, 4 Ω, 2 Ω loads (please refer to the specific amplifier model parameters for the supported load list).
- Page 12 Digital power amplifier MDA-KDM series Click to change the PEQ type PEQ Gain: enter the value in the textbox and press PEQ gain: drag the thumb Enter to confirm. fader to adjust the value, or click it and adjust the value...
- Page 13 Digital power amplifier MDA-KDM series Channel gain: enter a value Input channel Vu-Meter. The and press Enter to confirm, user can observe the input or drag the thumb fader, or signal in real time. BG select the fader by cliking the...
-
Page 14: Noise Gate
Digital power amplifier MDA-KDM series NOISE GATE The noise gate is the first process in the input signal path. To enable the process, click "OFF" / ”ON” button. In the “Noise Gate” frame, the main parameters can be set: Threshold: it represents the signal level below which the noise gate “close” (mute) the input channel. - Page 15 Digital power amplifier MDA-KDM series Each input channel of MDA-KDM amplifier has 12 PEQs, that can be set as Bell, High-Low shelving, High-Low pass (Butterworth -12dB/Oct), notch and all-pass (1 order) Output Channel View www.marani-proaudio.com E-mail: info@marani-proaudio.com...
- Page 16 To this end, Marani's proprietary MIR filters integrates advantages of both IIR and FIR based Xover, since they provide the same magnitude response of the IIR and a linear phase as the FIR, with a low latency value.
- Page 17 Digital power amplifier MDA-KDM series FIR Xover. It supports high/low/band pass linear phase filters and offers a full set of parameters (number of taps, stop-band attenuation, window type) to customize di filter generation. A third-party FIR filter file can also be imported (CSV, TXT or SAF files are currently supported).
- Page 18 Digital power amplifier MDA-KDM series The output section of the MDA-KDM amplifier provides 8 PEQ filters. Available filter type are: Bell, Hi-Shelving 1st order, Hi-shelving 2nd order, Hi-shelving Q, Lo- Shelving 1st order, Lo-Shelving 2nd order, Lo-Shelving Q, Low Pass 1st order, Low Pass 2nd order, Low Pass Q,...
-
Page 19: Amplifier Calibration
The calibration of the MDA-KDM series amplifier does not require any acoustic microphone or sound card. Simply connect the amplifier to the speaker and follow the steps below to complete the calibration. - Page 20 Digital power amplifier MDA-KDM series During the calibration, the power amplifier will emit a -18dBu sine sweep signal. ③ ④ When the calibration is completed, the system adds the new amp calibration in the speaker library. After calibration, the user can also verify the amplifier response, by selecting the speaker in the library and clicking the VERIFY button.
- Page 21 MDA-KDM series AEQ – Preface MARANI AEQ (Auto EQ) is an application, developed by Marani Pro Audio in Italy, for performing Acoustic correction of loudspeaker and room responses using DSP based approaches. This tools allows to perform an impulse response measurement of speaker or room and then to design the optimal equalization filter.
- Page 22 Digital power amplifier MDA-KDM series Using the Marani Pc Control Software, “call” the AEQ function on the desired channel MDA Series Marani PC Software Entrance to Marani AEQ Wizard: INFO INFO：Information page, AEQ and introduction to use, switching modes IR：...
-
Page 23: Mode Selection
Digital power amplifier MDA-KDM series MODE Selection Room correction: The AEQ will work on its Automatic Processes considering the equalization of a large environment as a room Speaker Correction： The AEQ will work on its Automatic Processes considering short ... - Page 24 Digital power amplifier MDA-KDM series AEQ - Measurements Page ：IR Sound card choice The AEQ function needs to call the "ASIO" driver of the sound card. When the "ASIO" driver is installed correctly on the computer, the PC software will automatically detect the "ASIO" sound card device, and then select the corresponding sound card.
- Page 25 Digital power amplifier MDA-KDM series AEQ - Measurements Page ：IR- System measurement Mic Test Select "MIC TEST" to test and adjust the output of the audio system and microphone acquisition;as setup, follow the simple diagram showing the right connection ( the dynamic processes, IIR filter, and FIR filter of the current channel will be disabled by default during the measurement process).
- Page 26 Digital power amplifier MDA-KDM series AEQ - Measurements Page ：IR- Windows Multi-Windows switching Select the display window in the upper right corner: single window, double window, triple window IR pulse display window content switching TIME： Time Window MAGNITUDE：...
- Page 27 Digital power amplifier MDA-KDM series AEQ-Configuration Page: AEQ Configuration DEVICE INFO: Channel info Channel： The current channel name IIR： Max number of available PEQ segments FIR： Max number of available FIR taps IR Window: Impulse response time window ...
- Page 28 Digital power amplifier MDA-KDM series AEQ-Configuration Page: AEQ Configuration Multiple types of curves in the same window IR :Raw Impulse Response Curve IR-C: Impulse response curve after windowing (CUT) IR-CS: Windowed and Smoothed Impulse Response Curves Target: target (Magnitude) curve...
- Page 29 Digital power amplifier MDA-KDM series SMOOTHING: Smooth the IR curve Smoothing can perform smoothing or multi-segment smoothing on the Magnitude and phase response curves, MAGN: Magnitude PHASE: Phase START: Smoothing start point STOP: Smoothing end point OCT: degree of smoothing, OFF~1/48 per octave "ADD"...
- Page 30 Digital power amplifier MDA-KDM series Target: Design target curve Preset: Preset parameters can be inserted, the overall boost/attenuation of the mid-high frequency can be performed, and multiple segments can be added at the same time (similar to boosting or attenuating a high shelving filter)
- Page 31 Digital power amplifier MDA-KDM series AEQ: AEQ calculation adjustment If you need fast automatic calculation, you only need to select the corresponding mode, turn on "Auto", and then plug in the device. Mode switching: FIR/IIR/FIR+IIF optional, enabling FIR requires external EQ/frequency division...
- Page 32 Digital power amplifier MDA-KDM series AEQ-Configuration Page: AEQ Configuration AEQ: AEQ calculation adjustment MAGN： Magnitude part Max Boost: The maximum boost range of AEQ operation AEQ processing range, open the "Auto Range" system to automatically select the range or manually design the range...
- Page 33 Digital power amplifier MDA-KDM series AEQ:Post EQ Post EQ can join PEQ after FIR processing AEQ: save & write Session：select/switch session Create a new session Presets are saved to the current session The current data is quickly written to the device ...
- Page 34 Digital power amplifier MDA-KDM series LISTEN： Listen to the comparison Session: select/switch session; REAME: rename session; DELETE: delete session Presets in the current session, switchable for comparison; REAME: rename presets; DELETE: delete presets Currently checked preset information STORE: apply the currently checked preset; EDIT: edit the currently checked preset Currently check the FIR&IIR application selection in the preset, and it is selected when it is lit;...
- Page 35 Digital power amplifier MDA-KDM series MDA4-10KDM MDA2-8KDM MDA4-6KDM MDA4-4KDM 2Ω power（rms） 4 x 800W 4 x1200W 2.7Ω power（rms） 4 x 1600W 2 x 3800W 4 x 1800W 4 x1100W 4Ω power（rms） 4 x 2200W 2 x 4000W 4 x 1200W 4 x 800W 8Ω...
