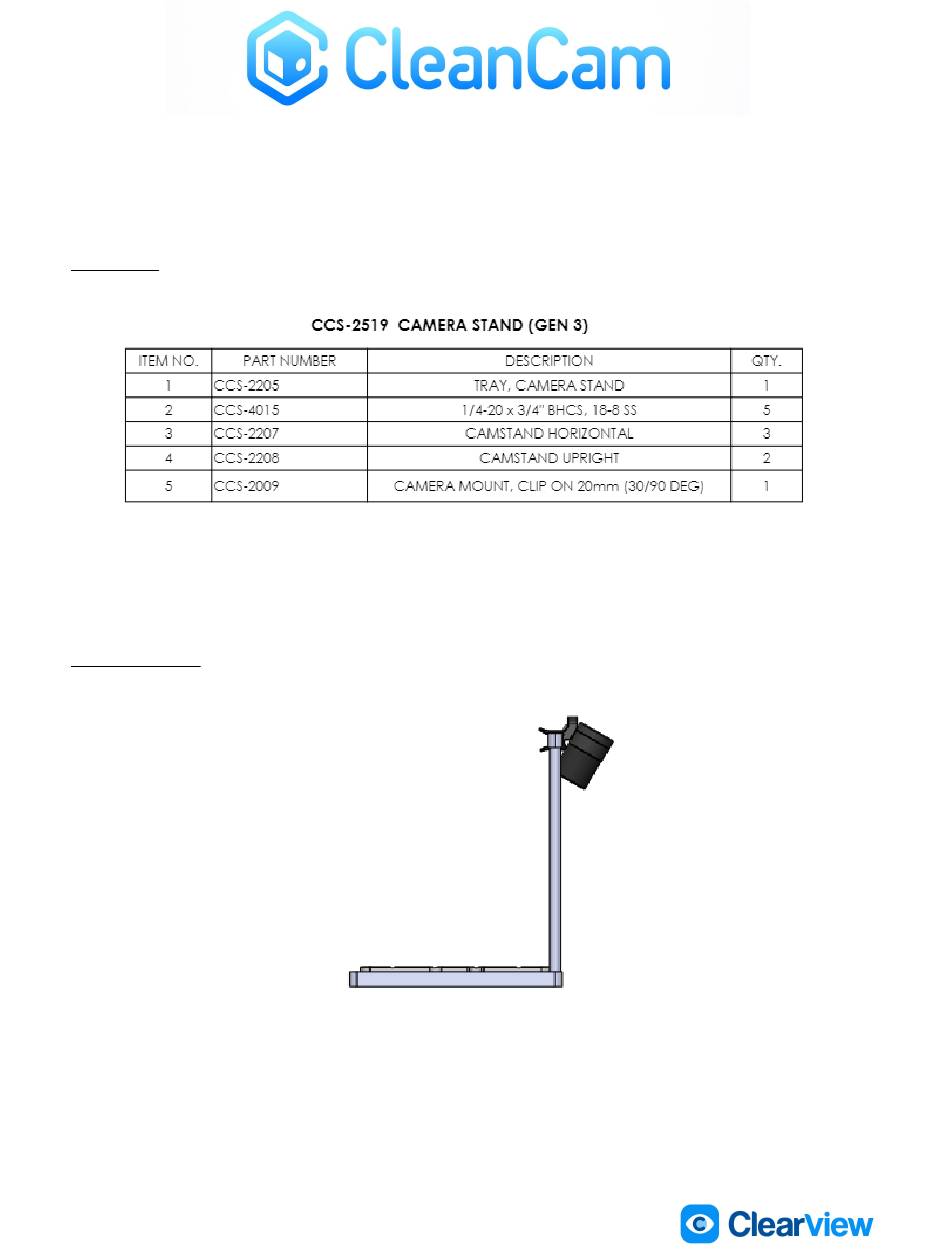

Contents:

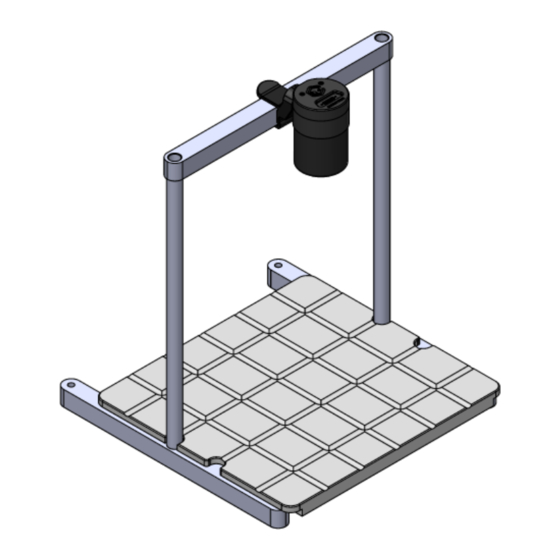

Note: the CCS-2519 supports two mounting orientations. Follow the instructions based
on your intended orientation
Orientation 1:
1. Using the provided hex key, pass one CCS-4015 fastener through a hole in
CCS-2007 Camstand Horizontal and screw it into the threaded hole at the end of
CCS-2208 Camstand Upright.
2. Repeat, using another CCS-2007 and CCS-2208.
CCS-2519 Assembly Instructions
Advertisement
Table of Contents
Summary of Contents for ClearView CleanCam CCS-2519
- Page 1 CCS-2519 Assembly Instructions Contents: Note: the CCS-2519 supports two mounting orientations. Follow the instructions based on your intended orientation Orientation 1: 1. Using the provided hex key, pass one CCS-4015 fastener through a hole in CCS-2007 Camstand Horizontal and screw it into the threaded hole at the end of CCS-2208 Camstand Upright.
- Page 2 3. Position the remaining CCS-2207 Camstand Horizontal such that the end of CCS-2208 of the assemblies from steps 1. and 2. align with the holes at the far ends of the remaining CCS-2207. Using the provided hex key, pass one CCS-4015 fastener through each hole and secure the CCS-2207 to CCS-2208.
- Page 3 6. Clip the assembly from step 5. to the assembled mount Orientation 2: 1. Using the provided hex key, pass one CCS-4015 fastener through the center hole in CCS-2007 Camstand Horizontal and screw it into the threaded hole at the end of CCS-2208 Camstand Upright.
- Page 4 4. Tighten all fasteners. If desired, place CCS-2205 Camera Stand Tray in place over the CCS-2207s to preserve the shape of the stand while tightening. Note: the CCS-2205 will be offset to one side. 5. Attach the CCS-2009 Camera Mount Clip to the CleanCam using the 90-degree attachment point using the provided hex key and one CCS-4015.
