Summary of Contents for MOKO LW009-SM

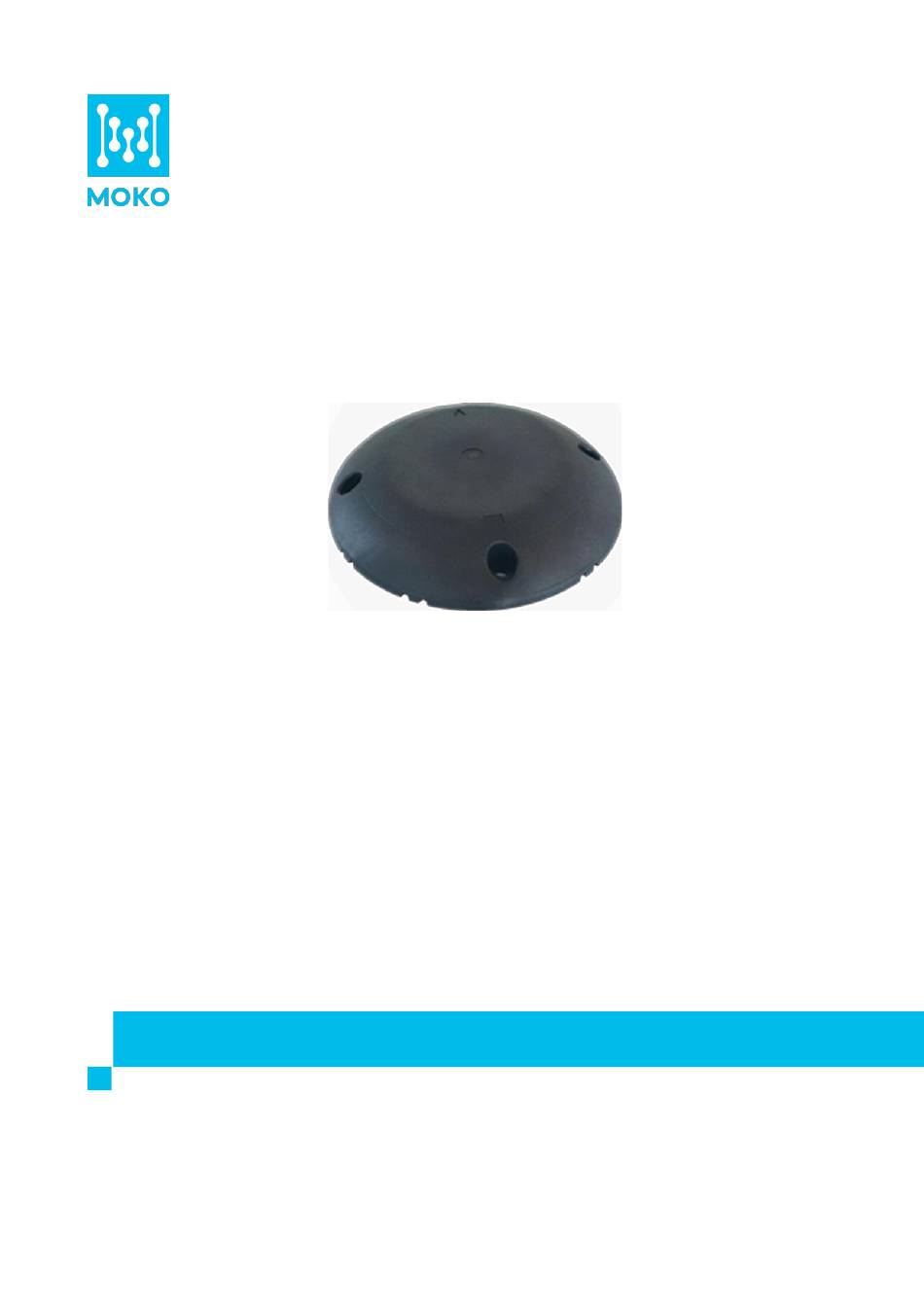

- Page 1 LW009-SM User Manual Version 1.0 MOKO TECHNOLOGY LTD. Version 1.0 www.mokosmart.com...
-
Page 2: Table Of Contents
CONTENT 1 Overview ............................3 2 Product Features ..........................3 3 Main Function ........................... 3 4 Application Scenarios ........................3 5 Product Specifications ........................4 6 Product Appearance ......................... 5 7 Working Principle ..........................5 8 Installation Guide ..........................5 8.1 Installation Preparation ...................... -
Page 3: Overview
LW009-SM 1 Overview LW009-SM wireless surface-mounting vehicle detector is a wireless sensor that meet LoRaWAN long-distance wireless standard, it integrated with geomagnetic sensor and microwave radar sensor. Using effective dual-mode joint algorithm, the detector realizes precise parking spot detecting function and can be widely used in intelligent traffic, smart community, smart parking and other applications. -
Page 4: Product Specifications
LW009-SM ➢ Industrial parks ➢ On road parking space ➢ Commercial parking slot ➢ Other public parking slot Note: The strong magnetic field or the field where magnetic varies greatly are not suitable for the detector use. 5 Product Specifications... -
Page 5: Product Appearance
The product can work out redundant enhanced information, especially acquire complementary and optimization to the reverse sensitivity characteristic s of chassis with different height. Compared to traditional parking sensor with single sensor, LW009-SM greatly improved the detection accuracy and reduced information loss. 8 Installation Guide 8.1 Installation Preparation... -
Page 6: Installation Steps
LW009-SM 1.Please try to install the device on the daytime and finish the installation as soon as possible. 2.Please pay attention to road safety and wear reflective clothes for safety. 3.Installation Tool Preparation: Ruler: Measure the installation position Marking pen: mark the installation position ... - Page 7 Figure 3. Press the 4 expansion bolts into these 4 mounting holes so that the bottom surface of the LW009-SM is tight against the road surface and there is no gap between the underside of the bolt cap and the device, then lock the bolts with an Allen screwdriver.
-
Page 8: Quick Start Guide
9.1 Register the Device on Network Server The TTN server is used here as an example Step 1: The LoRaWAN mode of LW009-SM is OTAA mode in default. MOKO will provide the LoRaWAN access parameters, which includes DEVEUI, DEVADDR, AppSkey and NwkSKey. - Page 9 LW009-SM And select “Manually” on register interface. Then select the corresponding frequency band, choose ABP mode on activation mode and the LoRaWAN version is V1.0.3. Note: If you use EU868, pls select Europe 863-870 MHz (SF12 for RX2). Step 4: According to the information obtained from Step1, fill in the corresponding LoRaWAN access parameters.
-
Page 10: Activate The Device
Step 5: Click “Register end device” on the bottom of page. 9.2 Activate the Device Step 1: Turn on phone’s Bluetooth function Step 2: Open the configuration app “Moko Parking Sensor Configure Tools” and come into detector tool interface www.mokosmart.com... - Page 11 LW009-SM Step3: Place the magnet stripe (Put together with mounting screws in the box with the device) in the groove at the top of the device and stay for 1~5seconds, then move away and click “Connected Device” of configuration app at the same time.
-
Page 12: Maintenance Instruction
LW009-SM 10 Maintenance Instruction 1. Battery life: The battery life refers to the service life under normal conditions. When the device is used in poor LoRa network (SNR≤-12), the device function will be affected and the battery life will be shortened. - Page 13 LW009-SM MOKO TECHNOLOGY LTD. 4F,Buidling2, Guanghui Technology Park, MinQing Rd, Longhua, Shenzhen, Guangdong, China Tel:86-755-23573370-829 Support_lora@mokotechnology.com https://www.mokosmart.com...
