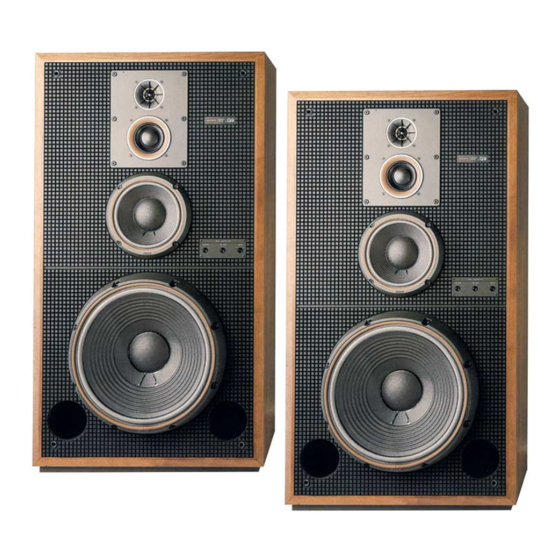

Sony SS-G9 Service Manual

Speaker System:
Enclosure Type:
Finish:
Nominal Impedance:
Power Handling Capacity:
Sensitivity:
Frequency Range:
*
SPECIFICATIONS
F our-way speaker system Crossover Frequency:
Woofer: 38cm (15 inches), cone type Controls:
Low mid-range: 20 cm (8 inches),
cone type
High mid-range: 8cm (3% inches),
cone type (balanced-drive type)
Tweeter: 3.5cm (1% inches), cone type
(balanced-drive type)
Bass reflex EUG:
Removable cloth grille
Volume:
Genuine walnut veneer
82
Nominal 120W (DIN 45500)
Maximum 300W (DIN 45500)
94dB (1W, 1m)
1.6W (96 dB, 1m) DIN 45500
Dimensions:
Weight:
30—22,000 Hz (*$dB DIN)
300 Hz, 1.2 kHz, 5kHz
Low mid-range: from +3dB to -47 dB
continuously adjustable
High mid-range: from +2dB to -48 dB
-continuously adjustable .
Tweeter: from +0 dB to -50dB
continuously adjustable
Full-range inputs
Four-way multi-amplification inputs
160 liters
Approx. 600 (w) x 1080 (h) x 455 (d) mm
235/g (w) x 425/s (h) x 18 (d) inches
including front grille |
Approx. 87 kg, 192 Ib (net)
including front grille
Approx. 99.5kg, 220 Ib (in shipping carton)
SERVICE MANUAL
