Summary of Contents for Rosco SAFE-T-SCOPE STSK4630

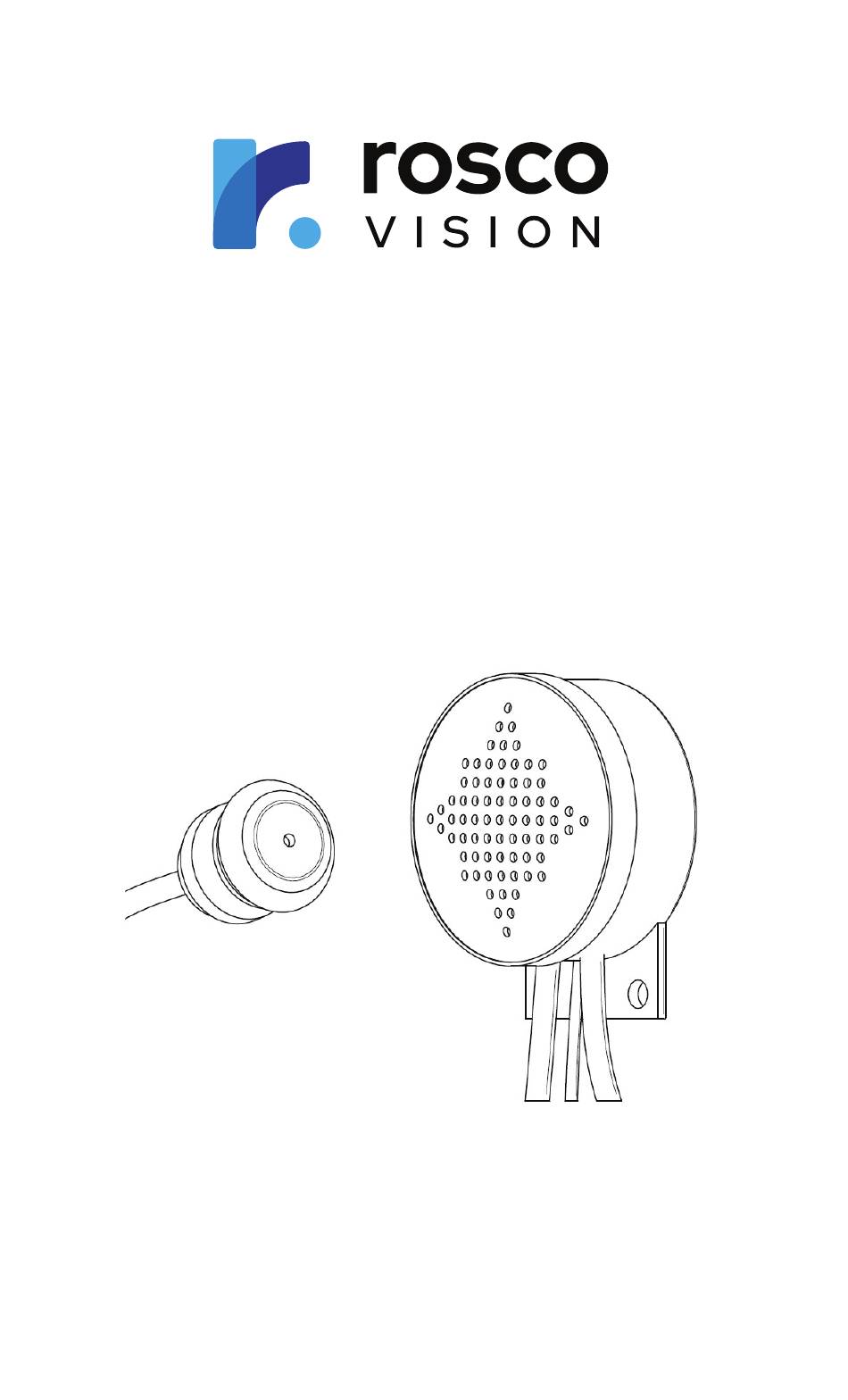

- Page 1 SAFE -T-SCOPE ® B A C K U P C A M E R A S Y S T E M S STSK4630 MICROPHONE AND SPEAKER KIT INSTALLATION/ USER MANUAL...
- Page 2 Safe-T-Scope ® MICROPHONE AND SPEAKER KIT TABLE OF CONTENTS Introduction........... . 2 Component List and Description .
- Page 3 STSK4630 COMPONENT LIST AND DESCRIPTION - STSK4630 STSM244MO 2" speaker, harness with reverse trigger, remote potentiometer 33 ft. extension harness, 4-pin STSH441 input and output Flush-mount microphone STSA1019...
- Page 4 Safe-T-Scope ® MICROPHONE AND SPEAKER KIT SPEAKER INSTALLATION The STSK4630 speaker is designed to attach to any surface convenient for transmission of environ- mental audio to the operator. Please use the .23" diameter screw holes on the mounting lobe. No. 12 screws are recommended for proper fit.
- Page 5 STSK4630 WIRING DIAGRAM Fig. 2...
- Page 6 Safe-T-Scope MICROPHONE AND SPEAKER KIT ® MICROPHONE INSTALLATION EX. MICROPHONE INSTALLATION 1. Select a location away from the exhaust to reduce excess noise in the microphone. 2. Once the location for the microphone is chosen, drill the mounting hole to the inside of the vehicle using a 61/64 size drill bit.
- Page 7 STSK4630 STSK4630 TECHNICAL SPECIFICATIONS PARAMETER VALUE Speaker Size (Diameter) 2.38" Input Format 4-pin Trigger Inputs Voltage +12VDC Maximum Current Consumption 200mA Operating Temperature -4°F to 158°F (-20°C to 70°C) Storage Temperature -22°F to 176°F (-30°C to 80°C) NOTES...
- Page 8 A CENTURY OF AUTOMOTIVE VISION SAFETY 90-21 144th Place, Jamaica, New York 11435 Tel. - (718) 526-2601 • Toll Free - (800) 227-2095 techsupport@roscovision.com www.roscovision.com Lit P/N: MNLSTSK4630 Lit. Revision: 1.1...
