Red Arrow SHC-RC Installation Instructions

Thank you for purchasing
the SHC-RC smoke alarm
controller. Please take a few
minutes to thoroughly read
the user guide and familiarize
yourself and your family with
its operation and save for
future reference.
Specification
DESCRIPTION:
This smoke alarm controller is a device that wireless interconnection with all the smoke
alarms in family. It helps to test smoke alarm, silence smoke alarm and locate to find out
source smoke alarm easily in daily life.
Box Contents -
1 x SHC- RC Smoke Alarm Controller
Dimensions:
Ø: 60mm x D: 13.2mm
Power:
Cr2450 replaceable battery
Product Life: 3 Years
Modulation: FSK
Operating Temp: 0 - 40°C
Operating Humidity:
15% - 95% (Non Condensing)
Alarm Controller Functionality
Yellow LED Light
Press the "TEST" button with red LED flashes once, all
Test
interlinked smoke alarms will beep for 7 seconds.
Press the "LOCATE" button with red LED flashes once,
Locate
silence all smoke alarms except the one sensing fire.
Press the "SILENCE" button with red LED flashes once, all
Silence
smoke alarms will be silenced for 8 minutes.
When the smoke alarm alarming, the red LED will flash
Fire Indicator
twice a second.
When the smoke alarm controller is in low battery
Low Battery Indicator
mode, the yellow LED will flash once every 8 seconds.
INSTALLATION INSTRUCTIONS

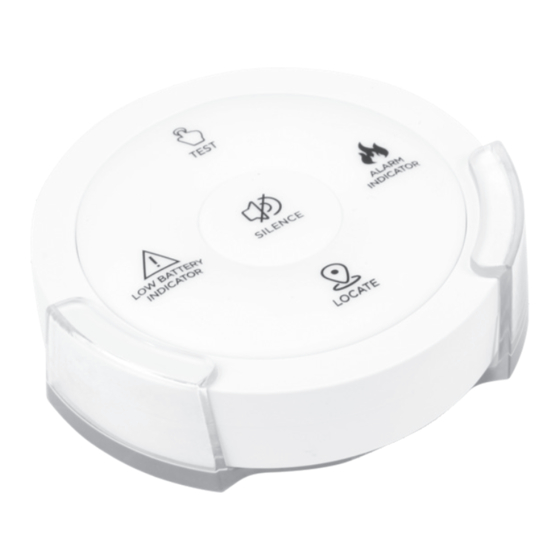

Smoke Alarm Controller
Product Codes: SHC-RC
Test Button
Silence Button
Red LED Light
Locate Button
Safety Warning
LO W B AT T E R Y
I N D I C ATO R
3
YRS
GUARANTEE
Installation
The Smoke Alarm Controller is suggested to be installed on the wall 1.4m+/-0.2m
from floor level, which will provide the best wireless transmission distance.
Activation
Press silence button and hold it for about 5 seconds until the red and yellow light
at the same time, which means the device is activated. Then release the button.
CAUTION: This device is only need to be activated the first time you use it.
•
The installation should be carried out
by a competent person.
•
Follow the provided installation
instructions, using the fixings supplied
or recommended.
•
Keep out of reach of children.
Ver: 1.0
T E S T
S I L E N C E
A L A R M
I N D I C AT O R
LO C AT E
60mm 13.2mm
