TKE HomeGlide User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

HOME
GLIDE
UsEr ManUal

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HomeGlide and is the answer not in the manual?

Questions and answers

Related Manuals for TKE HomeGlide

Summary of Contents for TKE HomeGlide

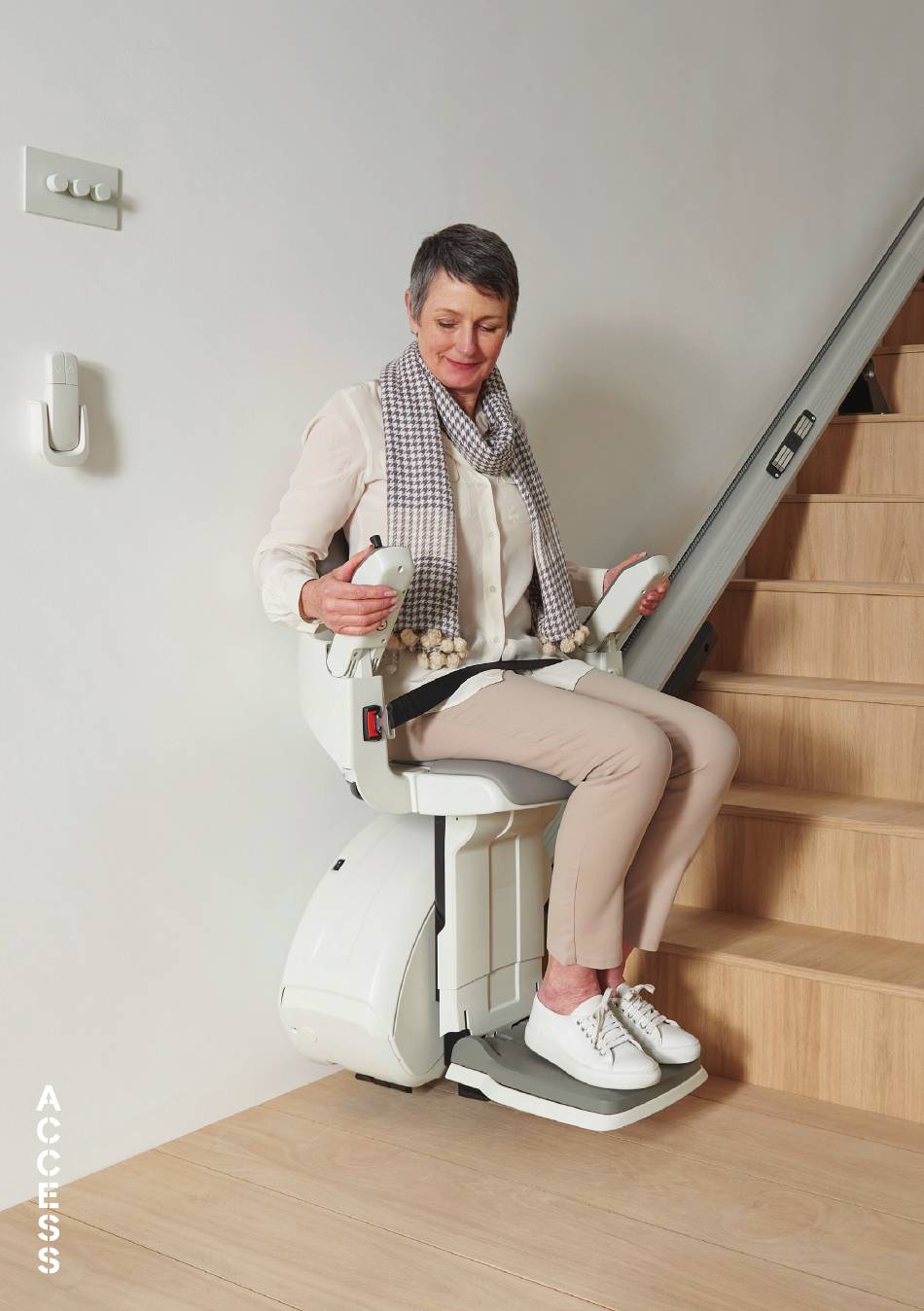

  • Page 1 HOME GLIDE UsEr ManUal...
  • Page 2 © TK Home Solutions B.V. All rights reserved. Specifications and illustrations are subject to change without prior notice. TK Home Solutions B.V. will not accept liability for any alteration or typing error. Subject to the exceptions provided by law, this publication and/or its contents may not be, whether entirely or partly, reproduced, copied, and/or published in print, by photocopying, on microfilm, electronically or in any other way without the prior written consent of TK Home Solutions B.V.

  • Page 3: Table Of Contents

    HomeGlide Stairlift - User Manual - Table of Contents TablE Of COnTEnTs Introduction _____________________________________________________________ 1 Manual ___________________________________________________________________________ 1 Symbols ___________________________________________________________________________ 1 Intended use _______________________________________________________________________ 1 Safety ___________________________________________________________________2 Safety warnings ___________________________________________________________________2 Description ______________________________________________________________ 5 Stairlift ___________________________________________________________________________ 5 Controls ___________________________________________________________________________6 Swivel seat _______________________________________________________________________12...

  • Page 5: Introduction

    HomeGlide Stairlift - User Manual - Introduction InTrOdUCTiOn ManUal The manual describes all equipment that is available for the HomeGlide stairlift. Not all features may be available for the model installed in your home. Illustrations may differ from the model installed in your home.

  • Page 6: Safety

    HomeGlide Stairlift - User Manual - Safety safETy safETy warnings TK Home Solutions B.V. is not responsible for injury or damage caused by not obeying the safety warnings in the manual. 2.1.1 UsEr Before you use the stairlift, read the manual carefully. Only use the stairlift if you know and understand the safety warnings and the operating instructions.
  • Page 7 HomeGlide Stairlift - User Manual - Safety 2.1.2 sTairs and sTairlifT Do not use the stairlift in case there are any other persons on the stairs. Do not use the stairlift in case of fire or near explosive materials. Keep water and moisture away from the stairlift.
  • Page 8 HomeGlide Stairlift - User Manual - Safety 2.1.3 MainTEnanCE Only carry out maintenance which is described in the manual. Refer to chapter 5 “Maintenance”. An authorised technician must carry out maintenance and repair which is not described in the manual.

  • Page 9: Description

    HomeGlide Stairlift - User Manual - Description dEsCripTiOn sTairlifT S100007 1. Seat 9. Date plate 2. Backrest 10. Main switch 3. Armrest 11. Emergency stop button 4. Armrest control unit 12. Joystick (Refer to section 3.2.1 “Armrest 13. Key lock control unit”)

  • Page 10: Controls

    The armrest control unit can be moved to the opposite side if more convenient to the user. The armrest should be unfolded to gain control. 3 . 2 . 1 . 1 HOMEglidE ClassiC / HOMEglidE ExTra / HOMEglidE OUTdOOr 14. Key switch (Extra/Outdoor) 15.
  • Page 11 HomeGlide Stairlift - User Manual - Description WARNING Release the safety belt in a controlled way. The metal tongue of the safety belt can hit the user when released uncontrolled. In case of possible mis-use by e.g. children, key-lock option is required or locate Call &...
  • Page 12 After the stairlift stops, release the button. NOTE The armrest control unit has priority over the call-and-send controls. HomeGlide Outdoor: Keep water and moist away from the call-and-send control. The call-and-send control is not waterproof. In order to use the keylock, the emergency stop button should not be...
  • Page 13 HomeGlide Stairlift - User Manual - Description 3.2.3 KEy lOCK (COMfOrT/OUTdOOr) The key lock makes it possible to put the stairlift in and out of operation with a key, e.g. when the stairlift is installed in a public area or to prevent children from playing with the stairlift.
  • Page 14 HomeGlide Stairlift - User Manual - Description 3.2.4 4-pOinT safETy bElT (OpTiOnal) When using the 4-point safety belt for the first time, please follow these steps. After the initial adjustment of the straps, it is only necessary to loosen and tighten the shoulder straps to use the safety belt.
  • Page 15 HomeGlide Stairlift - User Manual - Description Regular use of the 4-point safety belt 1. Sit down on the seat. 2. Move the shoulder straps over the shoulders. 3. Fasten the 4-point safety belt. 4. Adjust the shoulder straps and make sure that no loose ends can interfere with any moving parts.

  • Page 16: Swivel Seat

    3.3.3 linKEd aUTOMaTiC fOlding fOOT rEsT (HOMEglidE ExTra) The HomeGlide Extra is equipped with a linked footrest wich is unfolding and folding when unfolding and folding the manual folding seat. WARNING In the event of a defect in the automatic swivel where access to the stairs is...

  • Page 17: Optional Features

    HomeGlide Stairlift - User Manual - Description OpTiOnal fEaTUrEs 3.4.1 HingEd rail (HOMEglidE ClassiC / HOMEglidE ExTra) The hinged rail is a section of the rail at the bottom of the staircase that will automatically lower and raise when the stairlift is operated. The hinged rail is a useful feature in situations where there is an obstruction (doorways) or where the protrusion of the foot of the rail can cause a tripping hazard (passageways).
  • Page 18 HomeGlide Stairlift - User Manual - Description 3.4.2 ExTra parKing pOinT The stairlift can be equipped with an extra parking point. If the stairlift reaches the extra parking point, it will come to a momentary standstill. Keep the joystick pushed until the stairlift starts moving again automatically.

  • Page 19: Use

    HomeGlide Stairlift - User Manual - Use S100017 WARNING In case an attendant is operating the stairlift, the attendant should take care not to be entrapped between chair/chairleg/drive.

  • Page 20: Unfolding The Seat And Sitting Down

    HomeGlide Stairlift - User Manual - Use UnfOlding THE sEaT and siTTing dOwn S100021 TravElling wiTH THE sTairlifT 1. Engauge safety belt, stairlift will not operate until this action has been performed. 2. Set armrests to operating position. 3. Push and hold the joystick on the armrest control unit to the left or to the right to move the stairlift.

  • Page 21: Emergency Stop

    HomeGlide Stairlift - User Manual - Use EMErgEnCy sTOp WARNING Do not get off the stairlift on the stairs, not even in case of a breakdown, but use the Communication Module / Call Device to call for help. Only get off the stairlift at floor positions.
  • Page 22 HomeGlide Stairlift - User Manual - Use 4.4.1 MaKing a Call 1. Press the yellow alarm button for 4 to 7 seconds. The dialling tone can now be heard. 2. Release the call button. The light on the alarm button has now turned green.
  • Page 23 HomeGlide Stairlift - User Manual - Use 4.4.3 CHOOsing THE nExT nUMbEr S100025 S100025 If the connection to the first contact fails, you can choose to go to the next pre- programmed number. This is done as follows: 1. During the call, press the yellow alarm button once briefly. The next number will now be dialled.
  • Page 24 HomeGlide Stairlift - User Manual - Use Led behaviour Mooe Sound Cause Registered to a None Standby mode base station Flashing red Unregistered to None Module is not registered to a a base station base station Flashing red Registered to a...

  • Page 25: Standing Up And Folding The Seat

    HomeGlide Stairlift - User Manual - Use sTanding Up and fOlding THE sEaT S100026 S100026...

  • Page 26: Maintenance

    HomeGlide Stairlift - User Manual - Maintenance MainTEnanCE ClEaning THE sTairlifT WARNING Be aware of sharp edges while cleaning the stairlift. Regularly clean the stairlift – seat, backrest, armrest, footrest, safety belt, motor housing – with a soft, damp cloth. If necessary, use a mild detergent.

  • Page 27: Signals

    HomeGlide Stairlift - User Manual - Signals signals signals On arMrEsT COnTrOl UniT Signal Meaning Action Fast intermittent beeps The stairlift has Move the stairlift in the encountered an obstacle opposite direction to a and has stopped. parking point. Before you...

  • Page 28: Technical Data

    HomeGlide Stairlift - User Manual - Technical data TECHniCal daTa Maximum permitted weight 160 kg @ max 45 ° rail 136 kg @ max 53 ° rail Driving speed (nominal) 0.12 m/s (23.6 ft/min) Sound pressure level 67 dB(A) Electrical system...
  • Page 29 HomeGlide Stairlift - User Manual - Technical data Environmental conditions Ambient temperature Indoor: 5 - 40 °C (41 - 104 °F) Outdoor: -10 - 50 °C (14 - 140 °F) Relative humidity Indoor: 20 - 80% Outdoor: 0 - 100%...

  • Page 30: Contact

    HomeGlide Stairlift - User Manual - Contact COnTaCT For information which is not in the manual, contact your dealer. Phone number: To support you as quickly as possible, please have the below details available when you contact our service department staff:...
