QUANTUM

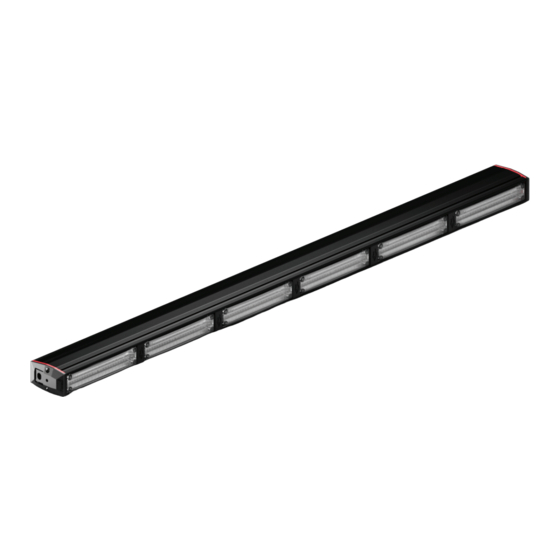

600 LIGHTSTICK
QT-0620
Feniex Product Copyrights This price List and the mentioned Feniex products include or describe copyrighted Feniex material. Laws in the
United States and other countries preserve for Feniex Industries and its licensors certain exclusive rights for copyrighted material, including the
exclusive right to copy, reproduce in any form, distribute and make derivative works of the copyrighted material. Accordingly, any copyrighted
material of Feniex and its licensors contained herein or in the Feniex products described in this Price List may not be copied, reproduced,
distributed, merged or modified,transmitted, transcribed, stored in retrieval system or translated into any language or computer language, in any
form or by any means, without prior written permission of Feniex Industries, Inc.. Feniex and the stylized Feniex logo are registered in the U.S.
Patent & Trademark Office.
Qua n tu m® 60 0 L ightstic k I n str u c tion Ma nu a l
®
1. 800 .615 .83 50 / fen iex.com
Equ i pmen t Di men si o n s
p p. 0 3
S pe ci f i c at i o n s
p p.0 3
Pa t ter ns & M ode s
p p.0 4
Qu i ck S et u p Gu i de
p p.0 5
Feni ex Uni vers i t y
p p.0 6
®

Advertisement

loading

Summary of Contents for Feniex Quantum 600

  • Page 1 Feniex Industries, Inc.. Feniex and the stylized Feniex logo are registered in the U.S.
  • Page 2: Safety Regulations & Warranty

    The products described in this document Feniex Industries' speakers, sirens, rocker are the property of Feniex Industries, Inc. It is panels, AM600 Beacons, Torch Lights, AI furnished by express license agreement only lightbars, AI Cubes, AM900 Work Lights, 8.5”...
  • Page 3: Wiring Diagram

    USB to Computer Violet Input 6 D- D+ white to port A green to port B Blue/White Input 7 Orange/White Input 8 Brown/White Input 9 Green/White Input 10 Feniex Indu stries , Inc. 1 .800. 615 .8350 / feni ex.com...
  • Page 4 Flood & Alleys Cruise Signal Low Power Flashing Cut Off Arrow Direction Turn Signal BRIGHTNESS INPUTS 100% 10 Inputs / 28 Inputs when paired with Quad Converter Park Pattern Feniex Indu stries , Inc. 1 .800. 615 .8350 / feni ex.com...
  • Page 5 Quantum® product. ▶ green to port B (D-) ■ 6. Open Feniex University Open Feniex University to follow step-by-step instructions on how to configure your Quantum product. Fe niex Ind us tr i es , Inc. 1.800.615.8350 / feni ex .co m...
  • Page 6 FENIEX UNIVERSITY ■ Feniex University Before installing the Quantum product, watch our instructional video series; Feniex University. Get an in-depth look at how to program and install your products using the Quantum Unlock Software ■ Visit Feniex University: ■ Download Quantum Unlock Software: feniexuniversity.com...
  • Page 7 On single, dual, and trio level of purchase they have up to 30 days to make any necessary changes to their product(s) before it locks in permanently. No changes are available after 30 days. Any upgrades are required by your authorized Feniex dealer. ■ Configuring Products Levels: ▶...
  • Page 8 Most common single-color configuration for Police, Fire & EMS: Driver red, passenger blue, takedowns, alleys, and STT [Stop, Turn, Tail] Most common single-color configuration for Public Safety with all available options: Feniex Indu stries , Inc. 1 .800. 615 .8350 / feni ex.com...
  • Page 9 360 is a must for night work while adding the DOT approved lighting functions needed with stop, turn and tail. Feniex Indu stries , Inc. 1 .800. 615 .8350 / feni ex.com...
  • Page 10 2 takedowns this setup will cover more area in color than needed. QUAD COLOR OPTIONS Enjoy all four colors any time! Feniex Indu stries , Inc. 1 .800. 615 .8350 / feni ex.com...
  • Page 11 12V+ terminal and the black wire to a 12V- terminal or ground. Use the provided Quad converter wiring harnesses to connect the wires to inputs 1-28. 2A Fuse 2-pin Quantum Wire Feniex Indu stries , Inc. 1 .800. 615 .8350 / feni ex.com...
  • Page 12 Input 8 Input 22 Input 9 Input 23 Input 10 Input 24 Input 11 Input 25 Input 12 Input 26 Input 13 Input 27 Input 14 Input 28 Feniex Indu stries , Inc. 1 .800. 615 .8350 / feni ex.com...
  • Page 13 Quad Converter. The end-user is required to map out their specific configurations to a 12V+, triggering a controller like the 4200 Data Link, Mini 4200, Typhoon, Feniex One (analog 12V+ triggers). Example of User Interface: Feniex Indu stries , Inc.
  • Page 14 Quantum products. ■ Payment History: To view past purchases with Quantum, select "Purchase History" in the right side menu: Pay to Unlock Purchase History Account Feniex Indu stries , Inc. 1 .800. 615 .8350 / feni ex.com...
  • Page 15 PAYMENT (DEALER ACCESSIBILITY) The dealer can setup their own account on a provided web link that is accessible through their inside sales representative. Feniex Indu stries , Inc. 1 .800. 615 .8350 / feni ex.com...
