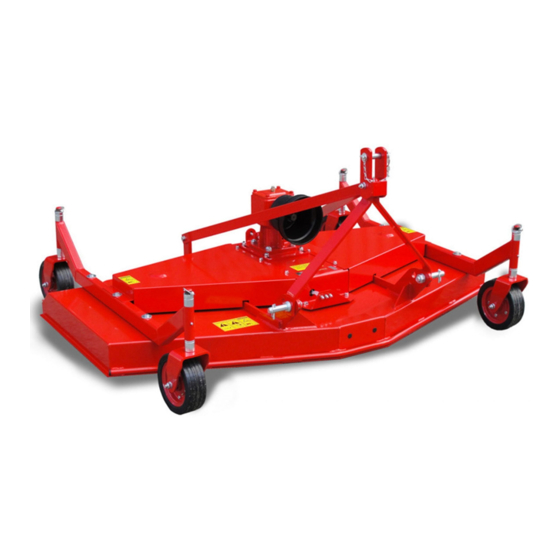

Winton WFP Series Owner's Manual

Professional finishing mower
Hide thumbs

Advertisement

Quick Links

Download this manual
WINTON PROFESSIONAL FINISHING MOWER
WFP SERIES
OWNERS MANUAL
PLEASE READ THIS MANUAL BEFORE OPERATING THE MOWER

Advertisement

loading
Need help?

Need help?

Do you have a question about the WFP Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Winton WFP Series

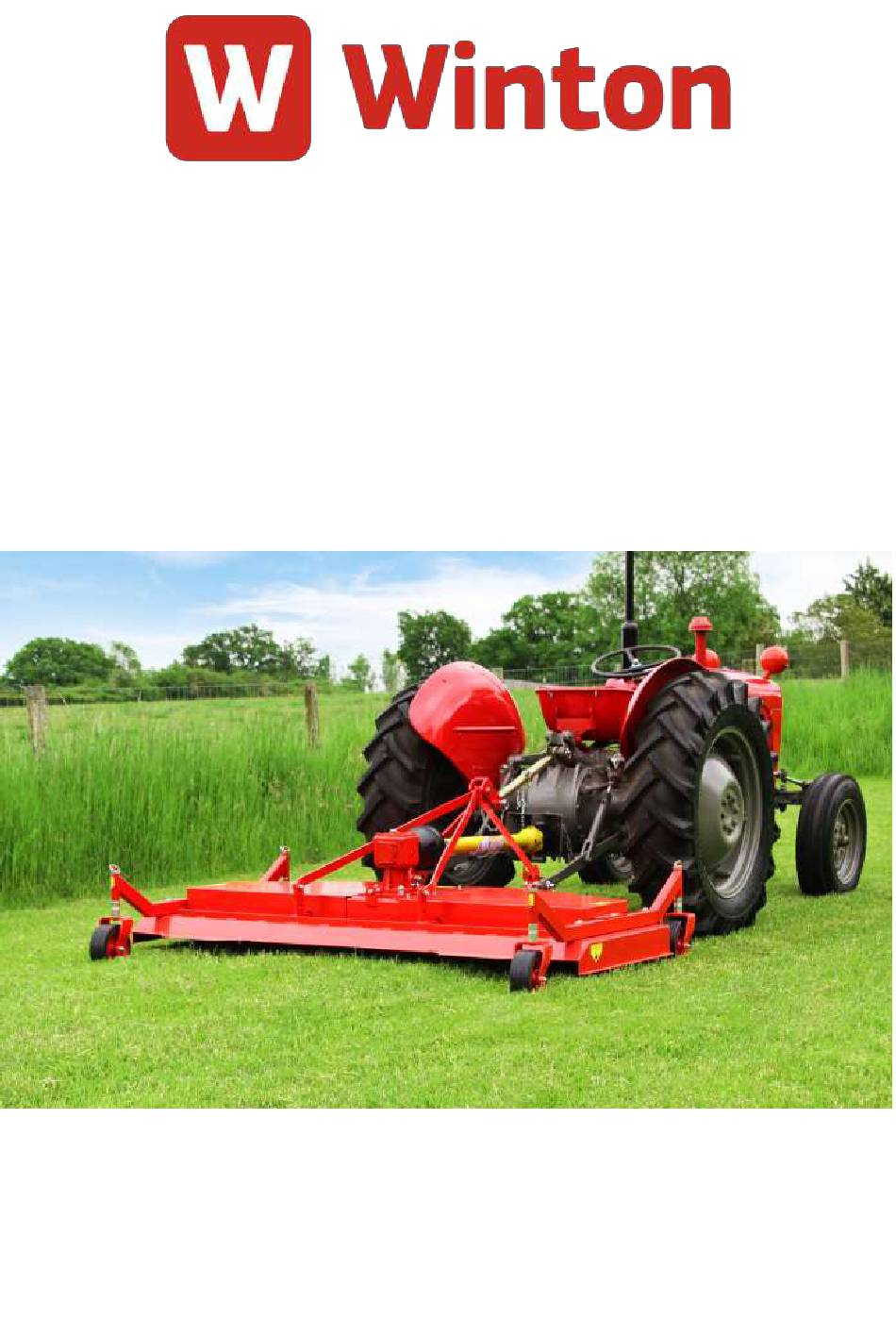

  • Page 1 WINTON PROFESSIONAL FINISHING MOWER WFP SERIES OWNERS MANUAL PLEASE READ THIS MANUAL BEFORE OPERATING THE MOWER...
  • Page 2 This manual should be considered a permanent part of this machine and should remain with it even if the machine is subsequently sold. Winton continually seeks advancements in its product design and quality. Therefore, while this manual contains the most current product information available at the time of printing, there may be minor discrepancies between your machine and this manual.
  • Page 3 Misuse: This machine is designed for use with compact tractors, and should be used only for the indicated purpose. Winton does not take responsibility if the machine is used for any other purpose. Children must not operate the machine under any circumstance.
  • Page 4 General Safety Informati n (Conti ued) Machinery Pre-Use Checks On receipt of your new Winton machine and again within the first 4 hours of use, or the ‘shake in period’, we always recommend checking over the machine. Check all bolts, nuts and screws are tight on the unit.
  • Page 5 Servicing & Maintenance 10-11 Parts Diagram & Parts List 1 12-15 Parts Diagram 2 & Parts List 2 Parts Diagram 3 & Parts List 3 PTO Shaft Resizing Winton Product Warranty Trouble Shooting 1. Dimensions & Speci cation Model WFP180 WFP215 WFP235...
  • Page 6 Oil level of the gearbox. [Section 4] • Check the belt tension. [Secti n 5] • Lubrication/grease points. [Section 7] • Tightness of all bolts, nuts and screws. • All protecti e guards are in place before operating. • Winton WFP...
  • Page 7 Remove linch pin (1) and slide wheel fork (2) out of bracket (3). Position spacers (4, 5, 6 & 7) above or below the wheel bracket as required. Replace wheel fork (2) and linch pin (1). Repeat above on the remaining three wheels. Winton WFP...
  • Page 8 Always make sure the machine is on a flat and level surface when checking oil levels. The machine should be left at a standstill to cool down for at least 10 minutes. Ensure the machine is stable before carrying out work and will not upturn. Winton WFP...
  • Page 9 Bolt tension: Always make sure bolts are tightened correctly. The filler/level plug should be secure but not over tightened. Oil Change Log Oil Change #1 Oil Change #2 Oil Change #3 Oil Change #4 Oil Change #5 Oil Change #6 Winton WFP...
  • Page 10 Wind in/out bolt (4) to adjust the plate and tension the belts as required. Tighten bolt & nuts (3) and replace belt guards. Replace and tighten bolts (1 & 2) To change belts, loosen off the belt tension. They are a tight fit and will need some elbow grease. Winton WFP...
  • Page 11 Always take extra care if lifting the tractor’s 3 point linkage when the mower is attached. As the floating top linkage is not rigid the mower is likely to be unstable. Use a fixed point for any lifting. Winton WFP...
  • Page 12 Multi-purpose lithium based grease (EPI or EP2) Grease Frequency Check every 4-8 hours (top up if required) Greasing & Lubrication Points Blade Hubs x3 (x5 on WFP235 model) (1). Wheel Fork Tubes x4 (2). Wheels x4 (3). PTO shaft x2. Winton WFP...
  • Page 13 Storage: Store the machine in a dry, level area. Chock the wheels if necessary. Belts: Check the condition of belts, replace if worn or frayed. Tension belts if required. *The periods recommended are based on normal operating conditions. Severe or unusual conditions may require more frequent maintenance. Winton WFP...
  • Page 14 8. Parts Diagram 1 - WFP180 & WFP215 Frame Winton WFP...
  • Page 15 14-1 SRM161VD right pulley cover 180 14-2 PRM403VD right pulley cover 215 40200003 M12 washer 40100043 M12x35 bolt 40200006 M12 nut 40300004 M12 washer 40100015 M12x45 bolt 40200025 M22 nut 40300024 M22 washer SRM220D M22 bottom link pin Winton WFP...
  • Page 16 M12 nut SRM185VD A-frame front bracket 29-1 SRM188VD A-frame support 180 29-2 SRM413VD A-frame support 215 40300003 M10 washer 40200003 M10 nut SRM064VD gearbox adjustment plate SRM070VD gearbox mount plate 40200005 M10 nut 40300003 M10 washer 40100044 M10x80 bolt Winton WFP...
  • Page 17 SRM203ZD 2mm spacer SRM204ZD 6mm spacer SRM205ZD 14mm spacer SRM206ZD 22mm spacer SRM207ZD 33mm spacer SRM053VD wheel fork 40200006 wheel nut 40300004 M12 washer SRM205ZD 14mm spacer SRM232ZD wheel spacer bush 42900001 wheel 40100048 wheel bolt Winton WFP...
  • Page 18 10. Parts Diagram 3 - WFP235 Frame 10 10 Winton WFP...
  • Page 19 SRM220D bottom link pin 40300020 M18 washer 40200028 M18 self-locking nut 40200025 M22 nut 40300024 spring washer 40100052 M18x80 bolt 40300020 M18 washer XRM153VD right pulley cover 40200006 M12 nut 40300004 M12 washer 40100015 M12x45 bolt Winton WFP...
  • Page 20 M12x80 bolt 40300003 M12 nut 40200005 M12 washer SRM064VD gearbox adjustment plate 40200003 M10 nut 40300003 M10 washer XRM154VD left pulley cover 40200002 M8 nut 40300002 M8 washer 40100003 M12x35 bolt 40300003 M12 washer SRM070VD gearbox mount plate Winton WFP...
  • Page 21 Notes Winton WFP...
  • Page 22 11. Parts Diagram 4 - WFP180 & WPF215 Transmission Winton WFP...
  • Page 23 40200008 M16x50 bolt 40100047 M16 nut 41900004 PTO shaft cover 40300002 M8 washer 40100042 M8x15 bolt 42000010 gearbox 20-1 SRM199D small double pulley 180 20-2 PRM405D small double pulley 215 SRM203ZD 2mm spacer 41000005 bearing Winton WFP...
  • Page 24 11. Parts List 4 (Continu d) - WFP180 & WPF215 Transmission Dia No. Part Number Part Descrip on SRM192D spindle bush SRM052D hub body SRM190D blade shaft SRM191ZD bearing shield 40500001 universal key 40600002 grease connector 40700003 M24 nut (c-spanner) Winton WFP...
  • Page 25 Notes Winton WFP...
  • Page 26 11. Parts Diagram 5 - WFP235 Transmission Winton WFP...
  • Page 27 40200008 M16x50 bolt 40100047 M16 nut 41900004 PTO shaft cover 40300002 M8 washer 40100042 M8x15 bolt 42000010 gearbox 40600001 grease nipple 40400007 retaining ring 41000005 bearing XRM157D small single pulley 215 40700003 M24 nut (c-spanner) 40600002 grease connector Winton WFP...
  • Page 28 11. Parts List 5 - WFP235 Transmission Dia No. Part Number Part Descrip on 40500001 universal key SRM191ZD bearing shield SRM190D blade shaft SRM052D hub body SRM192D spindle bush 41000005 bearing SRM203ZD 2mm spacer Winton WFP...
  • Page 29 Shorten the equally long guard tubes to the same length as the driveline tubes. Grease the internal driveline tube. Fit the guard on the shaft. Make sure that the length allows for at least 16cm (6 inches) of overlap. Winton WFP...
  • Page 30 UK to help out. Warranty Claims Before you get in touch here are 5 pieces of information your Winton reseller will need to progress your claim: Your invoice/order details - to include date of purchase •...
  • Page 31 Tractor loaded down by Cut down any overgrown areas before using a finishing mower. mower Clean off the mower. Check power output on your tractor. Winton Always consult your dealer if you have any questions about your machine. Winton WFP...
  • Page 32 www.wintonmachinery.co.uk...
