Summary of Contents for Crytec CRLS26T

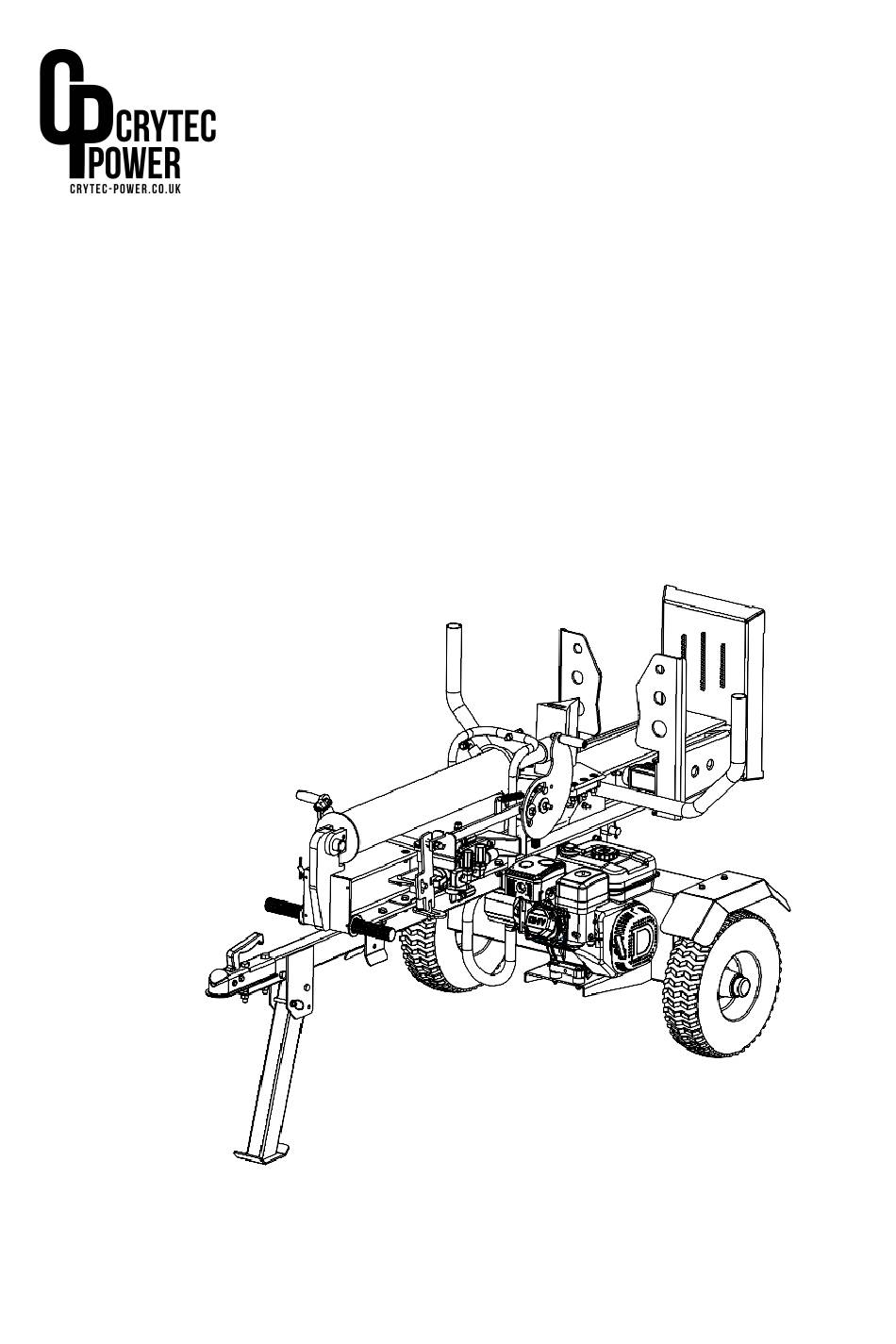

- Page 1 CRLS26T LOG SPLITTER User Manual IMPORTANT: Read safety rules and instructions carefully before operating equipment.
- Page 2 TABLE OF CONTENTS Content Page Important Safe Operation Practices ..................... 2 Assembling Your Log Splitter ......................5 Know Your Log Splitter ........................9 Operating Your Log Splitter ......................10 Adjusting Your Log Splitter ......................13 Maintaining Your Log Splitter ......................13 Storing Your Log Splitter .........................14 Troubleshooting ..........................15...
- Page 3 6. Keep bystanders, helpers, pets, and children at least 20 4. Make sure machine is on level surface before operating. feet from the machine while it is in operation. 5. Always block machine to prevent unintended movement, 7. Never allow anyone to ride on this machine. and lock in either horizontal or vertical position.
- Page 4 8. Use only your hand to operate the controls. 9. Never attempt to split more than one log at a time unless the ram has fully extended and a second log is needed to complete the separation of the first log. 10.
- Page 5 - 5 -...
-
Page 6: Section 2: Assembling Your Log Splitter
SECTION 2: ASSEMBLING YOUR LOG SPLITTER Unpacking from Crate • Pry top, sides, and ends off the pallet. Set panelsaside to avoid tire puncture or personal injury. • Remove any loose parts if included with unit (i.e.,operator’s manual, etc.) • Loose Parts illustration as below figure shows Ref. - Page 7 Beam Assembling • Assemble the both handle(15) to the beam(1) if they are not equipped when unpacking. • Assemble both log holder(3) to the beam with fitting plate(16), and hook spring(4) with the beam. • Assemble both protect pipe(2) to the beam with the hardware(5-8). •...
- Page 8 Towbar Assembling • Insert beam pin(5) through cener base(4), towbar(2) and then insert the cotter pin(6) to the beam pin. • Assemble the forefoot(3) to the towbar with bolt(8) through the top hole and pin set(7) to the bottom hole. Ref.
- Page 9 Tank Assembling • Assemble both mudguard(6) to the tank(1) and fasten with the M8 hardware(7-10). • Attach to the tank axle in squence with big washer(11), wheel(2), axle washer(11) and then fasten with slotted nut(4), insert the pin(3) to the axle hole and split the pin to prevent it from falling out, attach the cap(5) to the wheel. Ref.
-
Page 10: Tank Connection
Tank Connection • Insert the two bolt(5) through hook plate(5), tank, towbar(1), switch plate(6) and then fasten with lock nut. • Hook the vertical holder(3) to the hook plate(2) if it’s not preassembled. Ref. No. Description Ref. No. Description Towbar M12*90 hardware Hook plate Switch plate... -
Page 11: Engine Assembling
Engine Assembling • Assemble the engine coupler(6) to the engine(1) shaft, make sure lining up the solt of them, and then insert the keyway(11) to the solt, use the pump assy.(4) to adjust the position of the engine coupler to be well fiting with the pump coupler(4). -
Page 12: Hose Connection
Hose Connection • Connect the Suction hose(1) to the tank and pump and then fasten with hose clamp(6). • Use pressure hose(4) to connect pump and control valve. • Connect return hose(5) to the control valve and pump. Ref. No. Description Ref. -
Page 13: Section 3: Know Your Log Splitter
SECTION 3: KNOW YOUR LOG SPLITTER Compare the illustration below with the controls on your log splitter, and get familiar with its features before starting to operate. Know how to stop the machine quickly in the event of an emergency. Control Handle The control handle has three positions. -
Page 14: Technical Specifications
TECHNICAL SPECIFICATIONS Engine 7HP RATO four stroke Power Petrol Pump 11GAL TWO STAGE PUMP 4.5 inch Max log length 610mm CONTROL VALVE 100L MAX FORCE Wheel 4.8-8 Cycle time Max log diameter 600mm Overall Height 2300mm Overall Length 2350mm Width 1050mm weight 252kgs... -
Page 15: Section 4: Operating Your Log Splitter
SECTION 4: OPERATING YOUR LOG SPLITTER WARNING: Read, understand, and follow all instructions and warnings on the machine and in this manual before operating. WARNING: Wear leather work gloves, safety shoes, ear protection, and safety glasses when operating log splitter. Ensure safe footing. Gas and Oil Fill-Up •... -
Page 16: Operating Tips
• Place the log against the end plate and only split wood in the direction of the grain. • Never place hand on the end between the log and the splitting wedge. • Only one adult should operate the control handle, so the operator has full control over the log and the splitting wedge. -
Page 17: Transporting The Log Splitter
Flush and clean hydraulic system before restarting after servicing. 10. Use “pipe dope” on all hydraulic fittings. 11. Allow time for warm-up before splitting wood. 12. Prime the pump before initial start-up by turning over the engine with spark plug disconnected. 13. -
Page 18: Section 5: Adjusting Your Log Splitter
SECTION 5: ADJUSTING YOUR LOG SPLITTER WARNING: Do not at any time make any adjustments without first stopping engine, disconnecting spark plug wire, and grounding it against the engine. Wedge Assembly Adjustment As normal wear occurs and there is excessive “play” between the wedge and beam, adjust the bolts on the side of the wedge assembly to eliminate excess space between the wedge and the beam. -
Page 19: Beam And Splitting Wedge
Hydraulic Filter • Change the hydraulic filter every 50 hours of operation. Use only a 10 micron hydraulic filter. Beam and Splitting Wedge • Lubricate both sides of the beam (where it comes into contact with the splitting wedge) before each use, with engine oil. -
Page 20: Section 8: Troubleshooting
• Replace your gasoline can if it starts to rust. Rust and/or dirt in the gasoline will cause problems. • Store unit in a clean, dry area. Do not store next to corrosive materials, such as fertilizer. NOTE: If storing in an unventilated or metal storage shed, be certain to rustproof the equipment by coating with a light oil or silicone. -
Page 21: Hydraulic Troubleshooting
Hydraulic Troubleshooting NOTE: For repairs beyond those listed here, contact your nearest authorized service center. - 22 - -21-... - Page 22 -22-...
- Page 23 -23-...
