Summary of Contents for Thor Broadcast MaximusH265Pro

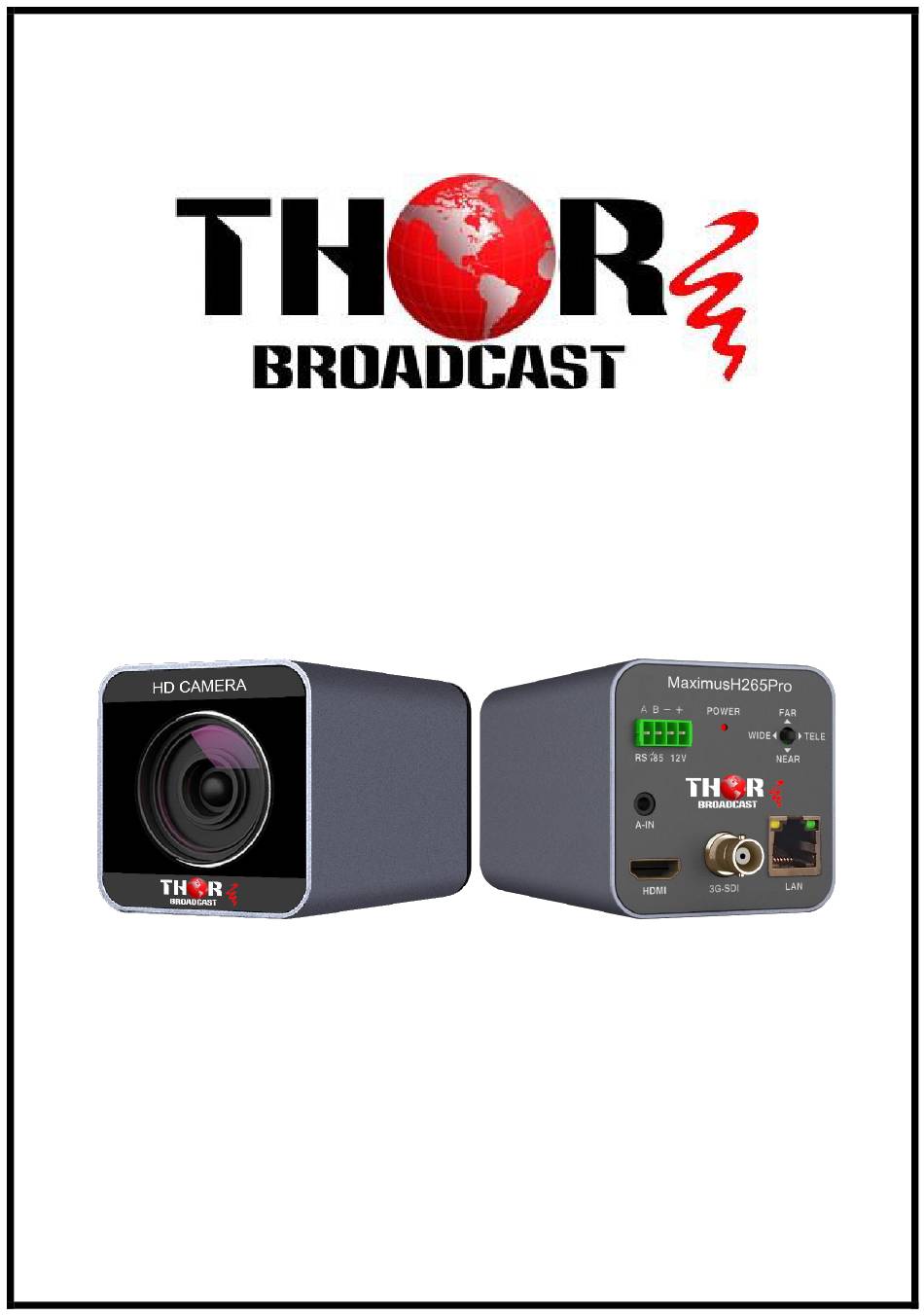

- Page 1 User Manual 20 X zoom Full HD 3G SDI HDMI and IP Streaming BOX camera - MaximusH265Pro MaximusH265Pro...
-
Page 2: Table Of Contents
MaximusH265Pro Contents 1.0 Precautions --------------------------------------------------------------------------------------2 2. Function--------------------------------------------------------------------------------------------3 2.1 Camera Technical Parameters---------------------------------------------------------------------3 2.2 Camera Parameters-------------------------------------------------------------------------------3 2.3 Technical Specification----------------------------------------------------------------------------4 3. Camera Interface Instruction-----------------------------------------------------------------------5 3.1 Camera Dimensions(mm)-------------------------------------------------------------------------6 4.0 Camera Menu Setting-------------------------------------------------------------7 4.1 Camera Exposure Setting------------------------------------------------------------------------7 4.2 Camera Color Setting---------------------------------------------------------------------------7 4.3 PICTURE SETTING-------------------------------------------------------------------------------8 4.4 P/T/Z Setting------------------------------------------------------------------------------------9 4.5 Noise Reduce------------------------------------------------------------------------------------9... -
Page 3: Precautions
MaximusH265Pro 1.Precautions ◢ Electronic The electrical safety standards of the country and region must be strictly observed in the installation and use of this product. There is no power switch in the body of this product. When the product fails, please cut off the power supply of the socket or cut off the connection between the power supply with the socket. -
Page 4: Function
MaximusH265Pro 2. Function 2.1 Camera technical Parameter Electronics Communication Constant DC12V Baudrate 2400/4800/9600/19200/38400 Voltage Power Protocol VISCA /Pelco -P/D /ONVIF Consumption Encoding Built-in 1 ~255 Operation -10°~+50° Environment Humidity 0~95% Installation DESKTOP / Wall Mount / Ceiling Presets 1.2kg 2.2 Camera Parameter... -
Page 5: Technical Specification
MaximusH265Pro 2.3 Technical Specification Input/Output Interface Video Output： 3G-SDI / HDMI / IP Streaming Audio Input: 3.5mm Audio Input Interface Audio Output: 3G-SDI / HDMI/ IP Interface Input/Output Control Interface： 2PIN Terminal，3.50mm Power Interface：2PIN Terminal or Power Over Ethernet (POE+) ... -
Page 6: Camera Interface Instruction

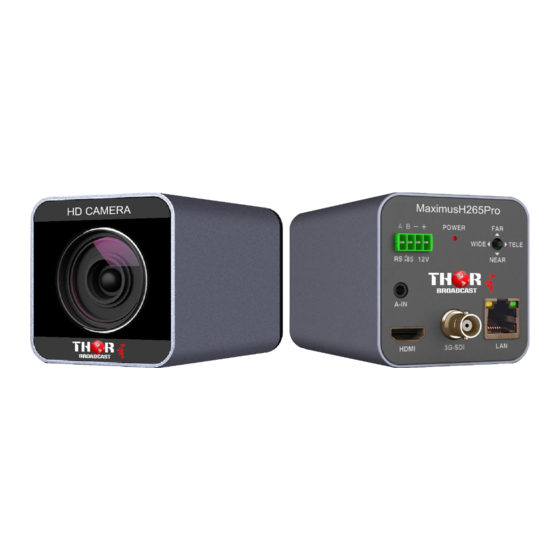

MaximusH265Pro 3.0 Camera Interface instruction 1. LENS 3. FIVE-DIRECTION BUTTON 2. Terminal Pin/ RS485 & Power Supply 4. 3.5mm AUDIO INPUT 5. HDMI Video output 6. 3G-SDI Video Output 7.LAN/RJ45 Network for Streaming or Power Over Ethernet(POE+) Tel: (800) 521-8467 Email: sales@thorfiber.com... -
Page 7: Camera Dimensions
MaximusH265Pro 3.1 Dimension(mm) Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com... -
Page 8: Camera Menu Setting
MaximusH265Pro 4.0 Camera Menu Setting MAIN MENU EXPOSURE 1. Long Press “Center Button” over 3 secs, to Enter Main Menu COLOR 2. Press Up/Down to Selection Menu, Press L/R Direction PICTURE Button To setting the menu P/T/Z NOISE REDUCE VIDEO OUTPUT... -
Page 9: Picture Setting
MaximusH265Pro COLOR WB MODE: AUTO 4.2 COLOR SATURATION: COLOR HUE: －BACK Enter Main Menu, Press Up/Down to【COLOR】, EXIT Press Right Button to enter Sub-menu, as like Picture And Move the cursor to WB MODE 【WB MODE 】 WHITE BALANCE MODE Optional：AUTO/INDOOR/OUTDOOR/OPW/ATW/MANUAL/3000K4000K/5000K6500K... -
Page 10: P/T/Z Setting
MaximusH265Pro 4.4 P/T/Z P/T/Z FLIP: Enter Main Menu, Press Up/Down to【P/T/Z】, Press Right AF MODE: AUTO Button to enter Sub-menu, as like SHARPNESS: AF SENS: NORMAL Picture PRESET FREEZE: OFF －BACK EXIT 【FLIP 】Image Flip To Setting: ON/OFF, default “ OFF”... -
Page 11: Video Output Setting
MaximusH265Pro 4.6 VIDEO OUT VIDEO OUT VIDEOOUT: 1080P60/59 Enter Main Menu, Press Up/Down to【VIDEO OUT】 REBOOT DIGITAL AUDIO: , Press Right Button to enter Sub-menu, as like －BACK Picture EXIT And move the cursor to VIDEOOUT 【VIDEOOUT 】 VIDEO OUTPUT FORMAT SETTING It can support Video output format as follows: 1080P60/59.94, 1080P50,1080P30/29.97, 1080P25... -
Page 12: Default Setup
MaximusH265Pro 【LANGUAGE】 Can setting to Camera Menu Language,Default ENGLISH LANGUAGE 【ZOOM LABLE】 Can setting ON/OFF, When you turn on, the camera output image will be display Optical Zoom Number, when you Turn Off, the Optical Zoom number will be disappear. -
Page 13: Maintenance Service Terms
MaximusH265Pro 5.0 Maintenance Service Terms 5.1 Range of Warranty The product will be maintained free for one year. The product will be obtained the free maintenance service if the same malfunction appears again within three payable maintenance months. Malfunction of products caused by force majeure (such as war, earthquake, lightning strike and so on ), abuse, non-standard operation, change of construction, non-normal wear or accident are non-free of warranty；... -
Page 14: Warranty Cards
MaximusH265Pro Products Warranty Cards User Information Date： Month Year Name Purchased Date Tel/Fax Post Code Purchased Place Model/Specs Malfunction Phenomenon Distributor( Chop) User Signature User files are warranty and basic documents, please fill in and keep them carefully & Saved it...
