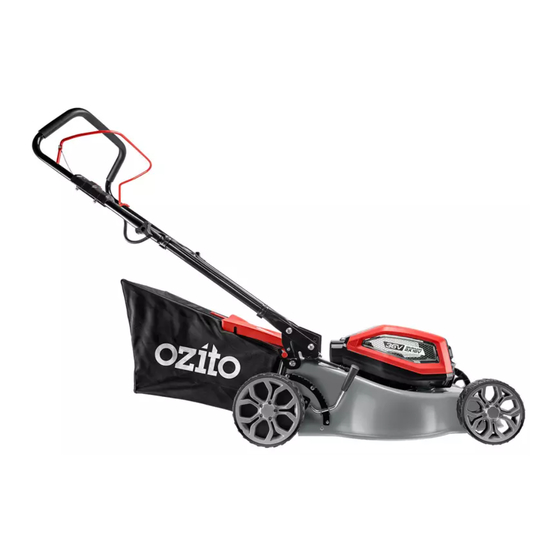

Ozito PXBMS-3647SP Instruction Manual

Ozito PXBMS-3647SP Instruction Manual

Pxc 36v brushless 2x18v self-propelled lawn mower

Advertisement

Quick Links

BRUSHLESS
SELF-PROPELLED
LAWN MOWER
INSTRUCTION MANUAL
SPECIFICATIONS
Input:
2 x 18V
Cutting Diameter:
460mm (18")
Cutting Heights:
25 - 80mm, 9 position
No Load Speed:
2,900/min
Grass Catcher:
50 litres
Noise Rating:
96dB
Tool Weight:
23kg
ozito.com.au
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST
RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS WAREHOUSE
WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO RETURNING
YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR CUSTOMER
SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL
NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER
SERVICE REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
WARNING
The following actions will result in the warranty being
void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
OZITO.
25 Fox Drive, Dandenong South, Victoria 3175, Australia
WARRANTY
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major failure and for
compensation for any other reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the failure does not
amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer service helpline
above.
5 YEAR REPLACEMENT WARRANTY
Your Product is guaranteed for a period of 60 months from the original date of
purchase and is intended for DIY (Do It Yourself) use only. If a product is defective it
will be replaced in accordance with the terms of this warranty. Lithium Ion
batteries and chargers are covered by a 36 month
warranty. Warranty excludes consumable parts, for example: wheels, blade,
cord clips, bearings etc.
STANDARD EQUIPMENT
Brushless Lawn Mower
Top Handle
Lower Handle
Handle Assembly Fasteners &
Spanner
Safety Key & Cable Clips
PXBMS-3647SP
0523

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PXBMS-3647SP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ozito PXBMS-3647SP

  • Page 1 Handle Assembly Fasteners & Spanner Safety Key & Cable Clips PXBMS-3647SP WARRANTY IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST The benefits provided under this warranty are in addition to other rights and remedies which are available to you at law.
  • Page 2: Know Your Product

    BATTERY & CHARGER 2. Secure knobs over This tool is compatible with all batteries and chargers from the Ozito PXC Range. the protruding ends of the bolts. ONLINE MANUAL Scan this QR Code with your mobile...
  • Page 3: Securing The Cord

    2. PREPARATION Adjusting the Cutting Height Securing the Cord Ensure the cord follows the WARNING! ENSURE THE TOOL IS SWITCHED OFF AND inside of the handles smoothly BATTERIES ARE DISCONNECTED BEFORE PERFORMING from the switch to the body of ANY OF THE FOLLOWING TASKS. the mower.
  • Page 4: Operation

    OPERATION 3. MOWING Removing the Batteries from the Mower WARNING! ALWAYS WEAR STURDY, NON-SLIP FOOTWEAR, LONG TROUSERS, SAFETY GLASSES AND 1. Open the battery cover. Press HEARING PROTECTION WHEN USING THE EQUIPMENT. the battery release tab (a) as NEVER USE THE EQUIPMENT BAREFOOT OR IN you remove the battery (b).
  • Page 5: Lawn Mowing Tips

    If the motor speed drops you may overload your lawn mower, which may cause damage. When mowing in long thick grass first cut with the cutting height set in the highest position, this will help reduce the load. PXBMS-3647SP...
  • Page 6: Maintenance

    • For best results, clean the lawn mower with a brush or rag. Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the lawn mower by an unauthorised person or by mishandling of the lawn mower. This tool is designed for DIY use - use in commercial or industrial environments will void the warranty.
  • Page 7: Description Of Symbols

    DESCRIPTION OF SYMBOLS Regulator compliance mark Read instruction manual. Newton Meters Pull out Safety Key before Sound power level carry out any repair work. The equipment`s operating time depends on the battery with the lower charge level. Therefore, only use rechargeable batteries which are charged to the same level.
  • Page 8: Electrical Safety

    ELECTRICAL SAFETY WARNING! • This machine is compatible and only to be used with all batteries & chargers from the Ozito When using electric machines basic safety precautions should always PXC range. Refer to the PXC battery and charger manuals for information regarding charging, be followed to reduce the risk of fire, electric shock and personal injury.
  • Page 9 21. Keep the battery charger, batteries and the cordless tool out of children’s reach. 22. Do not use damaged battery chargers. 23. Do not use the supplied battery charger to charge other cordless tools. Only charge Ozito Power X Change PXBP-400 rechargeable batteries with an Ozito Power X Change Charger.
  • Page 10 Australia 1800 069 486 tool) for the battery to reach its optimum performance / runtime. This battery is compatible with chargers from the 18V Ozito Power X Change range New Zealand 0508 069 486 available through your local Bunnings Warehouse. Product availability may differ.
  • Page 11 21. Keep the battery charger, batteries and the cordless tool out of children’s reach. 22. Do not use damaged battery chargers. 23. Do not use the supplied battery charger to charge other cordless tools. Only charge Ozito Power X Change rechargeable batteries with an Ozito Power X Change Charger.
  • Page 12: Charging A Battery

    The correct dimensions for drill holes can be found on the back of the charging unit; a • If the tool shows signs of damage or defects caused by or resulting from template for the mounting hole locations can also be found on the Ozito website. abuse, accidents or alterations.
  • Page 13 18V Multi-Battery Charger Wall Mount Template NOTE: Please print the template at ACTUAL SIZE. Do not t or resize the template to maintain the correct dimensions. 140mm Mounting Instructions: 1. Stick the back of this template to the wall in the desired mounting location. 110mm 2.
