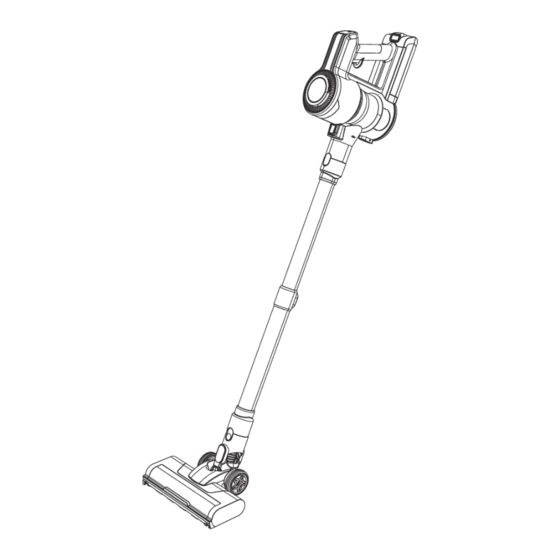

Summary of Contents for JPaulJones EyeVac Reach EVS-R

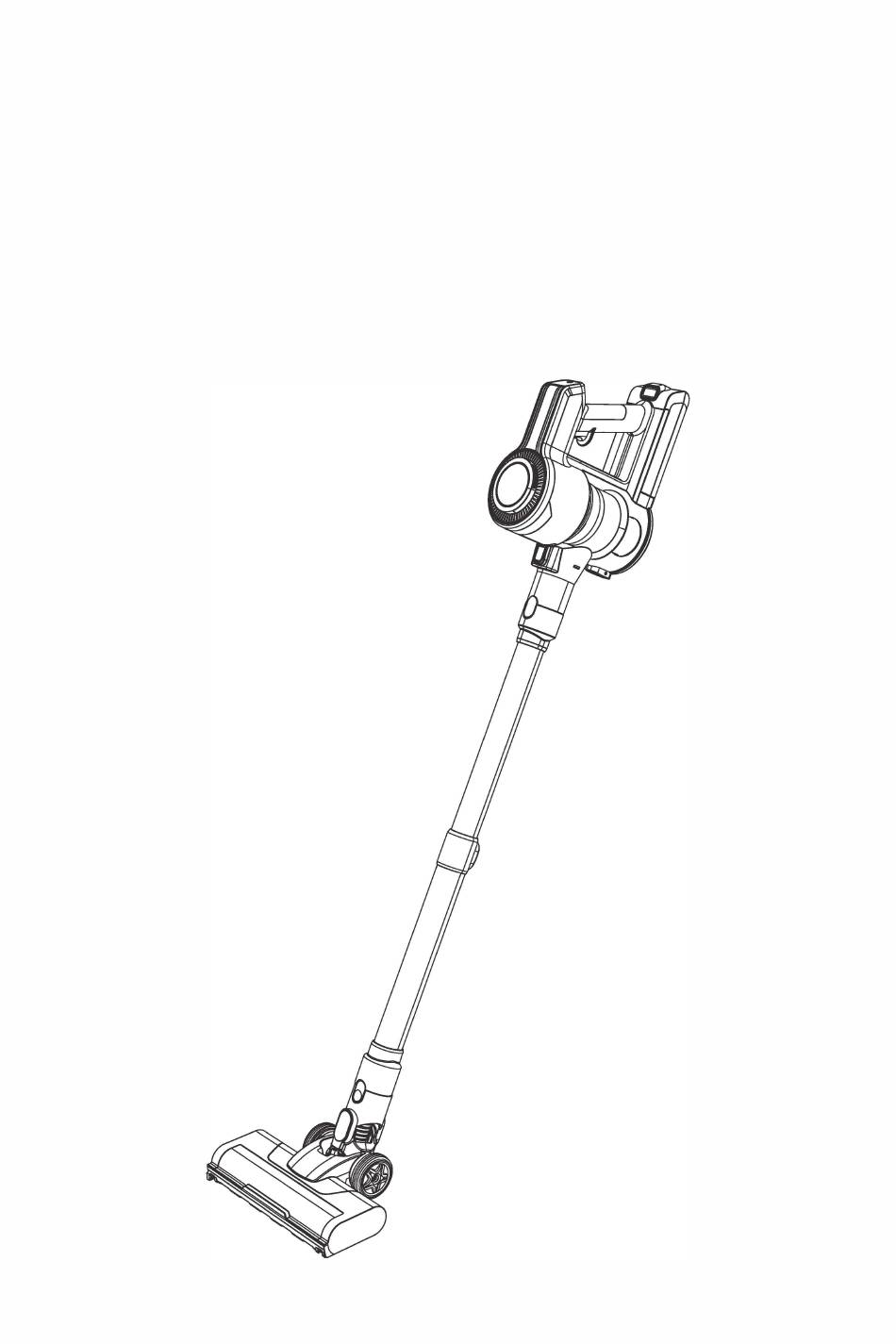

- Page 1 EyeVac Reach User Manual...
- Page 2 Nor does it cover defects caused by shipment to JPaulJones, LP or repair or service of the product by anyone other than JPaulJones, LP. Damage resulting from an unforeseen circumstance including but not limited to fire, flood, earthquake, and other natural causes will be excluded.
-
Page 4: Important Safety Instructions
Important Safety Instructions Basic precautions should always be observed when using any electrical equipment, including the f o llowing: WARNING: READ ALL SAFETY INSTRUCTIONS AND THE ENTIRE MANUAL. Failure to heed the warnings and instructions may result in electric shock, fire, or serious injuries. Please read all instructions before using this device. WARNING: •... - Page 5 , The appliance is only to be used with the power supply unit provided with the appliance. , The plug must be removed from the socket-outlet before cleaning or maintaining the appliance. , Please do not use or store the Vacuum Cleaner in high temperatures, low temperatures and other adverse conditions, and do not use them outdoors or on wet surfaces.
- Page 6 Overview Speed Adjustment Button Power switch button Battery Dustbin Dustbin release button Dust tube release button Telescopic dust tube...
- Page 7 Wall mount Vacuum Unit E,.JL l > =======:::1 \ Long crevice nozzle 2-in-l dusting brush Telescopic dust tube Electric floor brush Power adaptor...
-
Page 8: Product Assembly
Product Assembly 1. Battery installation and removal align the battery with the back-end press the battery release button and Removal: Installation: position of the vacuum unit and slide it in until pull it out for removal. it is clamped in place. 2. -
Page 9: Operation
Operation In the process of use, when the display light 1. Press the switch button and the machine flashes, it indicates that the power is insufficient, starts working; press the switch button again and it needs to be recharged in time so as not to and the machine shuts down. - Page 10 Maintenance Cleaning of dustbin Cleaning of filter components 1. Aim the bottom of the dustbin at the garbage can, Note: after rinsing inlet and outlet filters with water, please air - d ry them before use (do not press the dustbin cover release button, open the expose them in the sun).
- Page 11 Warning: Cleaning of electric floor brush 1. As shown in the picture, push the lock button I.Do not use this machine when filter compo down to the unlocked state, and take out one end nents are not installed! of the roller brush and pull out the whole brush. 2.
- Page 12 Maintenance After use, the vacuum can be hung on the wall using the wall mount for convenient storage.
-
Page 13: Troubleshooting
Troubleshooting Fault Possible Issues Solution The battery is not installed correctly Install the battery correctly The machine cannol be slarled. The battery is dead Charge the battery Empty the rubbish in the The dustbin is full dustbin The suction of the dust pipe or floor Clean up the suction of the dust Vacuum cleaner pipe or floor brush...
