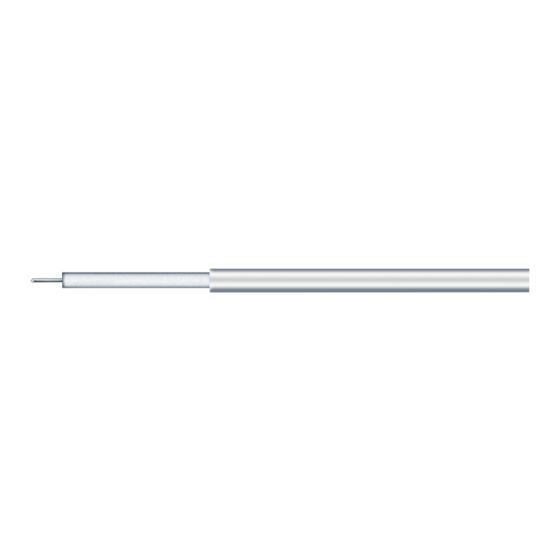

Installation of Fluoropolymer Insulated Series Trace Heaters
Types ELK-AE, -AG, ELW-VA, -GS, -GN
eltherm GmbH
Ernst-Heinkel-Str. 6-10
57299 Burbach
T.: +49 2736 4413-0
F.: +49 2736 4413-50
info@eltherm.com
QAA 024
INSTALLATION MANUAL
in Non-Ex Areas
QAA - 024
Installation of Fluoropolymer Insulated Series
Trace Heaters in Non-Ex Areas
Author
Peter Schmidt
Revision 5
13.11.2013
Advertisement
Table of Contents
Summary of Contents for eltherm ELK-AE
- Page 1 QAA 024 INSTALLATION MANUAL Installation of Fluoropolymer Insulated Series Trace Heaters in Non-Ex Areas Types ELK-AE, -AG, ELW-VA, -GS, -GN eltherm GmbH QAA - 024 Installation of Fluoropolymer Insulated Series Trace Heaters in Non-Ex Areas Ernst-Heinkel-Str. 6-10 57299 Burbach T.: +49 2736 4413-0...
- Page 2 QAA - 024 Installation of Fluoropolymer Insulated Series Trace Heaters in Non-Ex Areas Author Peter Schmidt Revision 5 13.11.2013 Content Applications ........................3 Receipt of Goods ......................3 Storage ..........................3 Length of Heating Circuit ....................3 Protective Measures ......................3 Mounting Instructions ......................
- Page 3 The circuit lengths of factory terminated goods are designed by eltherm. For shortening or elongation, please contact eltherm. The design of “off the reel” goods is to be done in accordance with the supplied product data sheet. The given voltage, operating temperature and output per metre must not be exceeded.
- Page 4 The minimum bending radius is 10 mm for trace heaters without jacket (ELK-AE, ELW- VA, -GS, GN) and 2.5 x OD for trace heaters with jacket (ELK-AG). Trace heaters with flat cross section are to be bent in the flat plane only.
- Page 5 Termination Kit Gland ELKM-AE ELVB 26 ELKM-AG ELVB 30, ELVB 30-1 ELK-AE, -AG Range 3-7 mm ELW-GN, -GS, -VA Range 8-13 mm • The max. operating temperature of the heated device as defined by the plant owner as well as the maximum trace heater temperatures (max. 220°C powered, 260°C unpowered, max.
- Page 6 QAA - 024 Installation of Fluoropolymer Insulated Series Trace Heaters in Non-Ex Areas Author Peter Schmidt Revision 5 13.11.2013 • Check of the function of the heat circuit (monitor the trace heater temperature to avoid any overheating). • Possible damages have to be fixed immediately. Short trace heaters may be replaced. Longer trace heaters may be repaired by cutting off the defective part and insert a new piece (refer to Connection Kit Instructions) •...
