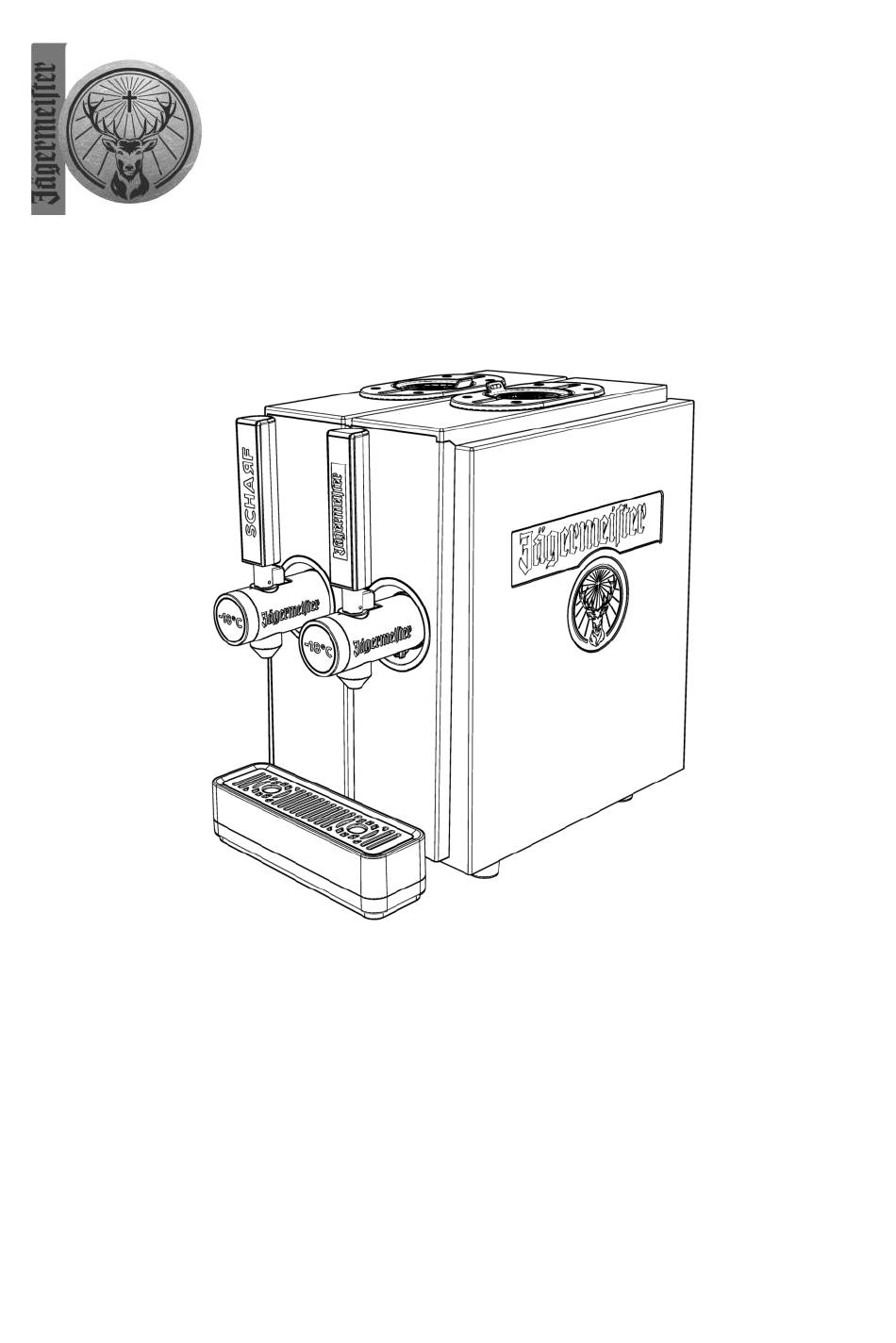

- Page 1 Dual Tap Machine Instructions for use English translation of the original German manual Status: 11/2023...
- Page 2 Foreword This manual will help you to use the Dual Tap Machine safely. The Dual Tap Machine will simply be referred to as “device” in the following. The Jägermeister bottle will simply be referred to as “bottle” in the following. Keep this manual handy This manual is an integral part of the device.
- Page 3 Manufacturer’s address Mast-Jägermeister SE Jägermeisterstraße 7–15 38296 Wolfenbüttel Germany Internet: www.jaegermeister.de...
-
Page 4: Table Of Contents
Table of contents Safety ...................... 6 Intended use ................... 6 Basic safety instructions ..............6 Avoid material damage and malfunctions .......... 9 Design features of the warnings ............10 Design features of the notices regarding property damage ... 10 Description ................... 11 Scope of delivery ................. - Page 5 Taking the device out of operation ............ 29 Disposing of the device ..............30 EU Declaration of Conformity ............. 31 Warranty terms ..................32 Technical data ..................33 Cleaning record ..................34...
-
Page 6: Safety
Safety Safety Intended use The device is intended exclusively to refrigerate and dispense 35% vol. Jägermeister. It is intended for use indoors, such as: • Bars and Clubs • Staff kitchens in stores, offices and other work environments • Hotels, motels and other residential areas •... - Page 7 Safety • Before carrying out any work on the device, make sure that the mains plug has been unplugged from the socket. To do this, only pull out by the mains plug. • If you are not intending to use the device for a longer period of time, unplug the mains plug from the socket.
- Page 8 Safety Fire prevention • Only use the device in a dry, dust-free environment. • When setting up the device, observe the minimum distances specified in this manual. • Do not place the device underneath wall cupboards or equivalent. • Protect the device from direct sunlight. The device’s refrigeration agent contains isobutane (R600a).
-
Page 9: Avoid Material Damage And Malfunctions
Safety Avoid material damage and malfunctions Place the device on an easily accessible, level, dry, heat-resistant and sufficiently stable surface. Do not place the device at the edge of the surface. Do not remove the feet. Do not drop the device. ... -
Page 10: Design Features Of The Warnings
Safety Design features of the warnings WARNING Notices with the word WARNING warn of a dangerous situation that can possibly lead to death or serious injury. Design features of the notices regarding property damage ATTENTION! These notices warn of a situation that will result in property damage and limited functionality. -
Page 11: Description
Description Description Scope of delivery • Device • Two bottle stoppers • Drip tray • Tap handle display kit (mini screwdriver, two display plates) • Mains cable... -
Page 12: Device
Description Device Tap handles with displays Fuse holder Bottle wells Connection socket Ventilation opening Air filter (pulled out) Foot Taps with display Main switch Drip tray... -
Page 13: Task And Function
Description Task and function The device is used to cool and dispense 35% vol. Jägermeister. The device has two separate cooling tanks each with a tap. The cooling tanks can be filled with 35% vol. Jägermeister via the bottle wells. The device can be switched on and off using the main switch. -
Page 14: Unpacking And Checking The Scope Of Delivery
Unpacking and checking the scope of delivery Unpacking and checking the scope of delivery ATTENTION! Device may be damaged during unpacking. Do not use sharp or pointed objects (e.g. knives) when opening the packaging. Open the packaging carefully. ... -
Page 15: Storing And Transporting The Device
Storing and transporting the device Storing and transporting the device Store the device and its components in a dry, dust-free place. Transport the device upright in its original packaging. -
Page 16: Setting Up And Installing The Device
Setting up and installing the device Setting up and installing the device WARNING Fire may occur due to overheated components. When setting up the device, observe the minimum distances specified in this manual. Protect the device from naked flames or hot surfaces. ... -
Page 17: Device Start-Up
Device start-up Device start-up Clean the device thoroughly before using for the first time (see p. 24). Connect the device to the power supply (see p. 18). Insert the bottles in the bottle wells (see p. 21). ... -
Page 18: Connecting And Disconnecting The Mains Cable
Connecting and disconnecting the mains cable Connecting and disconnecting the mains cable ATTENTION! The device may be irreparably damaged. Fill the device with Jägermeister before connecting it to the power supply. Ensure that there is no residual water in the tank. To remove any residual water from the lines, tap at least 2 cl of Jägermeister. -
Page 19: Replacing The Tap Handle Display
Replacing the tap handle display Replacing the tap handle display Undo the screw (3) on the back of the tap handle using the mini screwdriver. Remove the cover (1). Slide the display plate (2) upwards and remove it. ... -
Page 20: Mounting And Removing Bottle Stoppers
Mounting and removing bottle stoppers Mounting and removing bottle stoppers Clean the bottle stopper first before using it for the first time or reusing it (see p. 24). Make sure the seal (1) is properly seated in the thread. ... -
Page 21: Inserting And Removing A Bottle
Inserting and removing a bottle Inserting and removing a bottle ATTENTION! The bottle stopper and the bottle well may be damaged if the bottle is tilted. Insert and remove the bottle vertically in the bottle well. Open the lid (1) of the bottle well. -
Page 22: Switching The Device On And Off
Switching the device on and off Switching the device on and off ATTENTION! The device may be irreparably damaged. Fill the device with Jägermeister before connecting it to the power supply. Ensure that there is no residual water in the tank. To remove any residual water from the lines, tap at least 2 cl of Jägermeister. -
Page 23: Tapping Jägermeister
Tapping Jägermeister Tapping Jägermeister Press the tap handle (1). The device starts dispensing Jägermeister. Release the tap handle (1). The tapping process stops. During tapping and a few seconds after tapping, bubbles form in the bottle. That is normal. If this process lasts longer, see p. 26. Jägermeister shots The following factors can affect the temperature of the Jägermeister shot in the glass:... -
Page 24: Cleaning Device
Cleaning device Cleaning device WARNING Electric shock may occur when working on the device. Before working on the device, remove the mains plug from the socket. To do this, pull out by the mains plug. WARNING Short circuiting may occur due to ingress of water or other liquids. - Page 25 Cleaning device Weekly cleaning Turn the main switch to position “0”. Pull the mains plug out of the socket. Clean the tap outlet with a mild, warm soapy water solution. Remove the bottles (see p. 20). ...
-
Page 26: Troubleshooting
Troubleshooting Troubleshooting Problem Possible cause Action Check the fit of the sealing Jägermeister is The sealing rings dripping from the are not properly rings, if necessary, put them bottlewell. positioned. in place. Replace the bottle stoppers. The bottle stoppers are defective. - Page 27 Troubleshooting Problem Possible cause Action Insufficient cooling The pre-cooling time (see The temperature performance, although has not been p.; 22) should be observed. the device seems to measured correctly. The compressor and the fan be functional. switching off indicates that the target temperature of the Jägermeister in the tank has been reached.
-
Page 28: Replacing A Defective Fuse
Replacing a defective fuse Replacing a defective fuse WARNING Electric shock may occur when working on the device. Before working on the device, remove the mains plug from the socket. To do this, pull out by the mains plug. ... -
Page 29: Taking The Device Out Of Operation
Taking the device out of operation Taking the device out of operation If the device will not be used for an extended period of time, switch it off at the main switch. Pull the mains plug out of the socket. ... -
Page 30: Disposing Of The Device
Disposing of the device Disposing of the device The packaging material is recyclable. Dispose of the packaging material according to environmental regulations at the end of its service life. Electrical and electronic devices marked with this symbol must not be disposed of with household waste. They may contain hazardous and environmentally dangerous substances. -
Page 31: Eu Declaration Of Conformity
EU Declaration of Conformity EU Declaration of Conformity The EU Declaration of Conformity can be requested at: https://www.jagermeister.com/en/dual-tap-machine... -
Page 32: Warranty Terms
Warranty terms Warranty terms In accordance with the legislation of the country in which the customer's place of residence is located, the manufacturer provides a warranty for at least one year (in Germany: 2 years) from the date the device is sold to the end user. -
Page 33: Technical Data
Technical data Technical data Device Model DTM-EU Dimensions (W × D × H) 26.4 × 42.1 × 40.3 cm Net/gross weight 15.6/17.6 kg Voltage supply 220–240 V/AC, 50 Hz, 150 W Mains cable 3G, 0.75 mm , 250 V, 10A, 1.8 m... -
Page 34: Cleaning Record
Cleaning record Cleaning record Weekly cleaning Monthly cleaning Cleaning day Signature Cleaning day Signature...
