INSTALLATION MANUAL
NETWORK 4 ZONE AMPLIFIER
Model: TIS-4PL-E66D
Input
Output
General
Protection
Network
Dimensions
Music Sources
BARCODE (UPC-A)
6
06795
20838
8

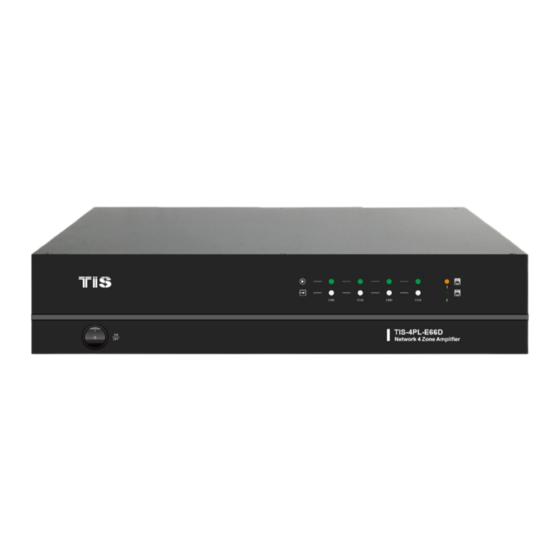

TIS-4PL-E66D is a 4-zone multi-room audio
system that allows you to play music from various
sources, including online music services, your
phone storage, and NAS, in different rooms or the
same room. It is easy to set up and use.

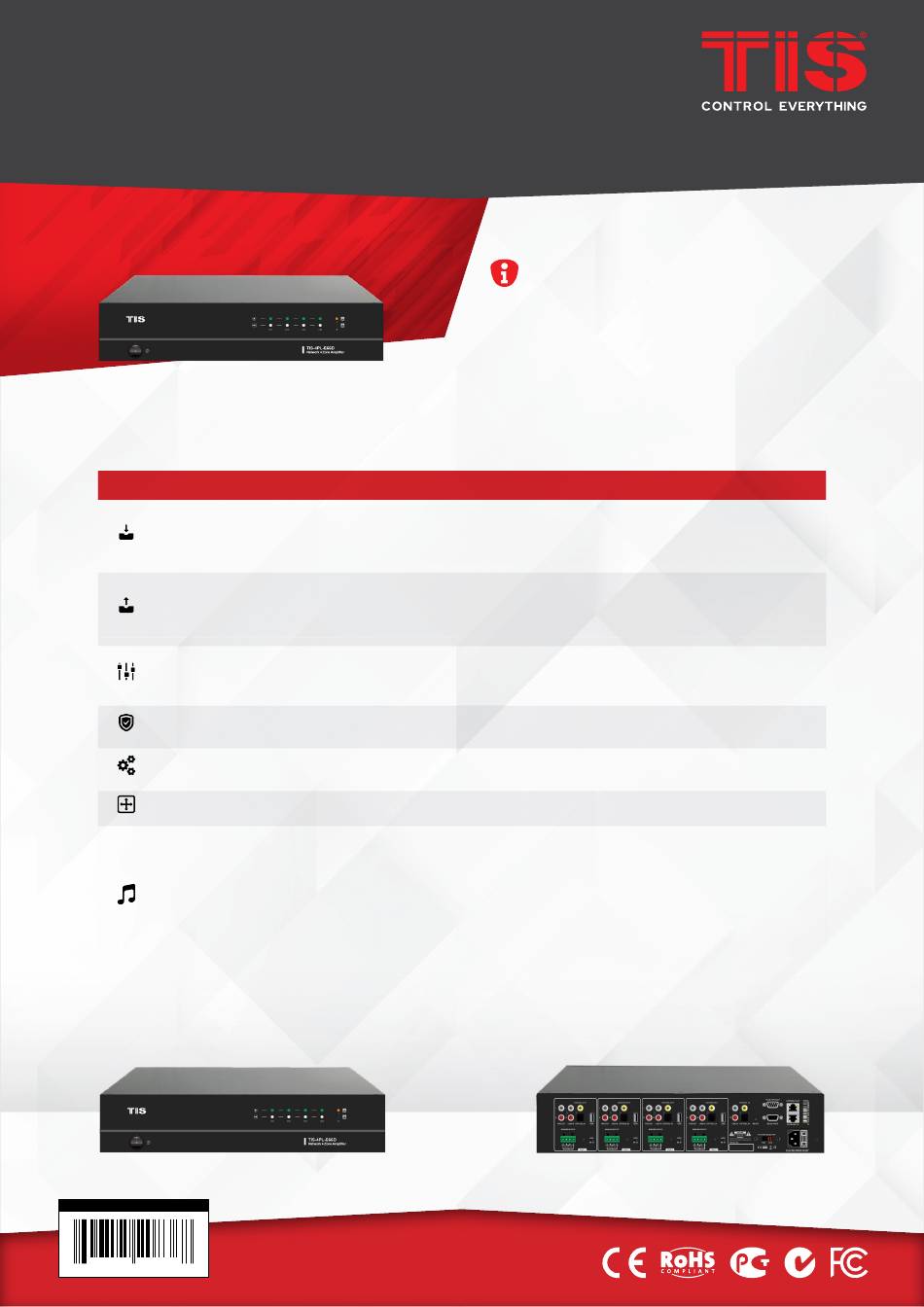

P R O D U C T S P E C I F I C AT I O N S
Line in
Optical in
USB
Pre out
Coaxial out
Speaker out
Power
Control Interface
Size
Bus connection
Amplifier
Ethernet In
Ethernet Out
Width × length × height
Streaming Protocol
Online Music
Local Music
Multizone function
PRODUCT INFORMATION
Max 2V RMS input
Max 192kHz/24bit sample rate decode
PCM encoding
USB disk drive playback
Max 2V RMS output
44.1kHz/16bit output
SOW per channel / 8ohms
Bridged Amplifier mode 100W / 4ohms per channel
115-230V AC 50/60Hz
Dual-way RS232
2U rack size
Reverse polarity protection
Reverse polarity protection
RJ45, Connect to internet
RJ45, Output to other device to share the network
300mm × 100mm × 430mm
Spotify Connect, Airplay, DLNA, UPnP, Qplay
Spotify, Tidal, Deezer, Qobuz, Napster, Pandora, Amazon Music,
Internet Radio, iHeartRadio, vTuner, QQ music, QQ FM
Mobile device music, NAS storage music files, USB disk drive
music files
1.By Master input source
2.By APP to setup one zone as master to sync music to other
zone
