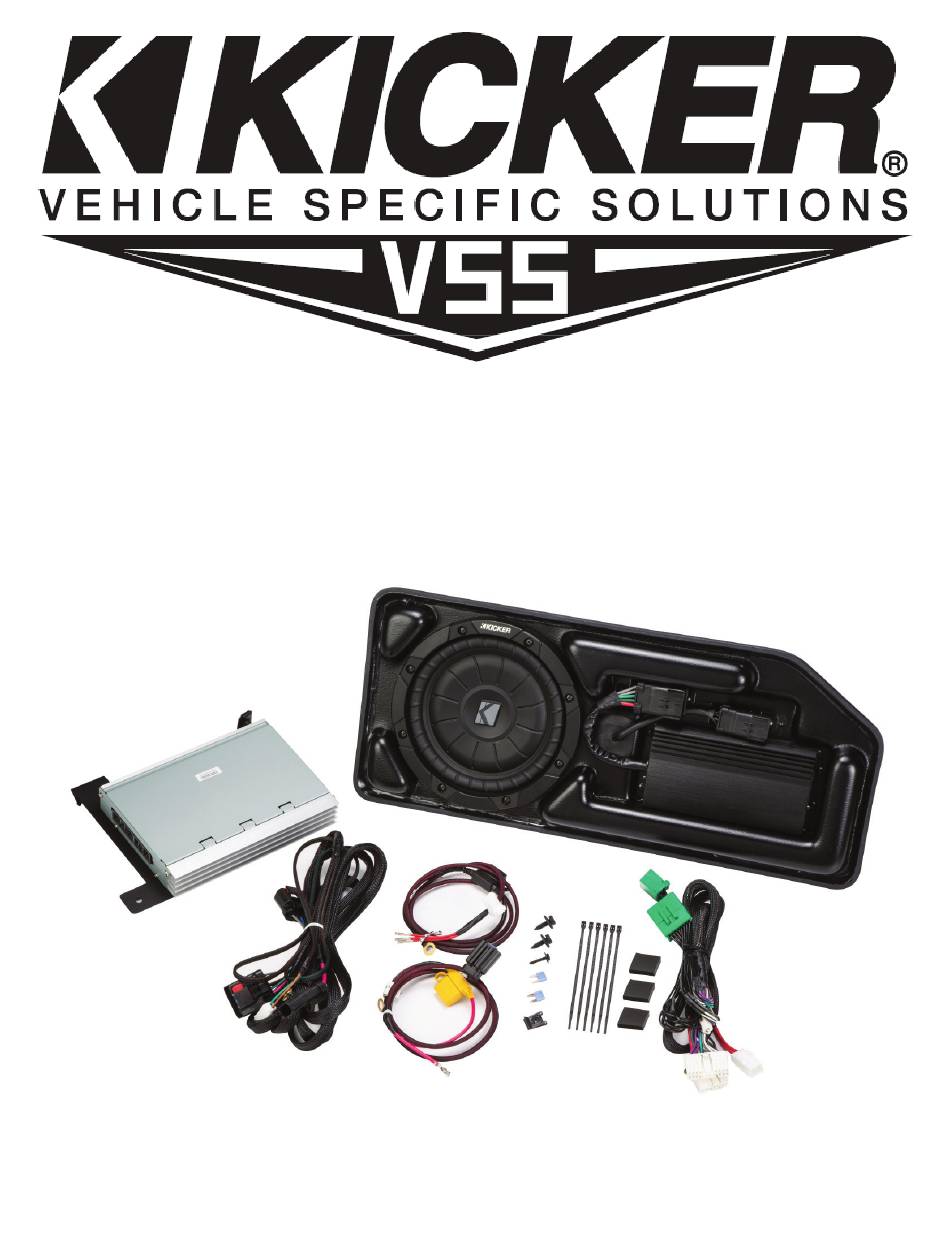

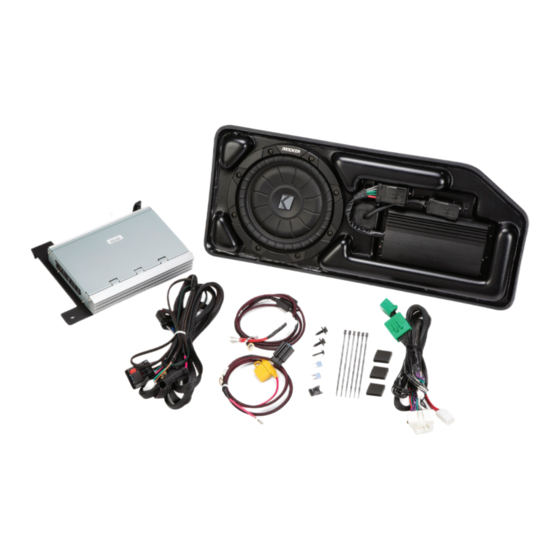

Designed for 2015 and newer Chevrolet® Colorado and GMC® Canyon Crew Cab vehicles
Amplifier Assembly
Subwoofer Harness
©2015 Stillwater Designs
PCOCRE15-A2-20160120
PCOCRE15
(Not Compatible with Bose® system)
Subwoofer Power Harness
Amplifier Power Harness
Subwoofer Assembly
M6 Bolt X 2
7mm Screw
Fuse X 2
Wire Tie X 6
Foam Pad X 3
Amplifier Harness
1
Advertisement
Related Manuals for Kicker PCOCRE15
Summary of Contents for Kicker PCOCRE15
- Page 1 PCOCRE15 Designed for 2015 and newer Chevrolet® Colorado and GMC® Canyon Crew Cab vehicles (Not Compatible with Bose® system) Subwoofer Assembly Amplifier Assembly Amplifier Harness Subwoofer Harness M6 Bolt X 2 Subwoofer Power Harness 7mm Screw Amplifier Power Harness Fuse X 2...
- Page 2 1. Disconnect negative battery cable. 2. Make sure supplied fuses are not installed in fuse holders and connect the subwoofer power wire and the amplifier power wire to the stud pictured in figure 1. Torque to 4.7Nm (42in-lb) 3. Route the power harnesses toward the firewall and secure with supplied wire ties. 4.
- Page 3 Radio Removal 7. Pull loose the radio bezel. Fig. 5 8. Remove the four screws securing the radio display/HVAC control panel. Fig. 6 Fig. 6 Fig. 5 9. Pull loose radio display/HVAC control panel and disconnect wiring. Note: Be careful not to allow metal retainers to scratch dash! Multi-Channel Amplifier Installation 1.
- Page 4 5. Remove the glove compartment tension cable by sliding the hook toward the front of the glove compartment. Remove the glove compartment from dash. Fig. 11 6. Temporarily disconnect the HVAC blower fan wiring to allow the amplifier to be installed. Fig. 12 Fig.
- Page 5 Amplifier Harness Routing 10. Route the multi-channel amplifier harness from the radio opening to the amplifier in a way that will not interfere with the glove compartment function or reinstallation of the radio display/HVAC control panel. 11. Disconnect the green connector from the radio module and connect it to the amplifier harness.
- Page 6 21. Route the subwoofer harness along the driver side door openings. Pull harness under carpet and through hole near rear seat frame on the driver side. Fig. 20 22. Make two ½ inch long cuts in carpet directly below the metal brace pictured in Fig. 21. Only cut through the carpet layer, and not the insulation.
- Page 7 Troubleshooting the Kicker Integrated Systems If you experience a problem once the subwoofer or amplifier are installed use this guide to locate the trouble. The radio is working, but the Subwoofer is not working: Check the battery voltage to make sure it is not discharged below 11 volts.
- Page 8 If you continue to experience problems after troubleshooting, please contact KICKER Technical Support at (800) 256-0808 ext. 6009, or support@kicker.com. P.O. Box 459 • Stillwater, Oklahoma 74076 • USA • (405) 624–8510...
