imilab V1 User Manual

Vacuuming robot

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

V1 Vacuuming Robot

User Manual

Manufacturer: Shanghai Imilab Technology Co., Ltd.

Address: Room 001A, Floor 11, Block 1, No. 588 Zixing Road, Minhang District,

Shanghai, China

For further information, please go to www.imilab.com.

Support: help@imilab.com

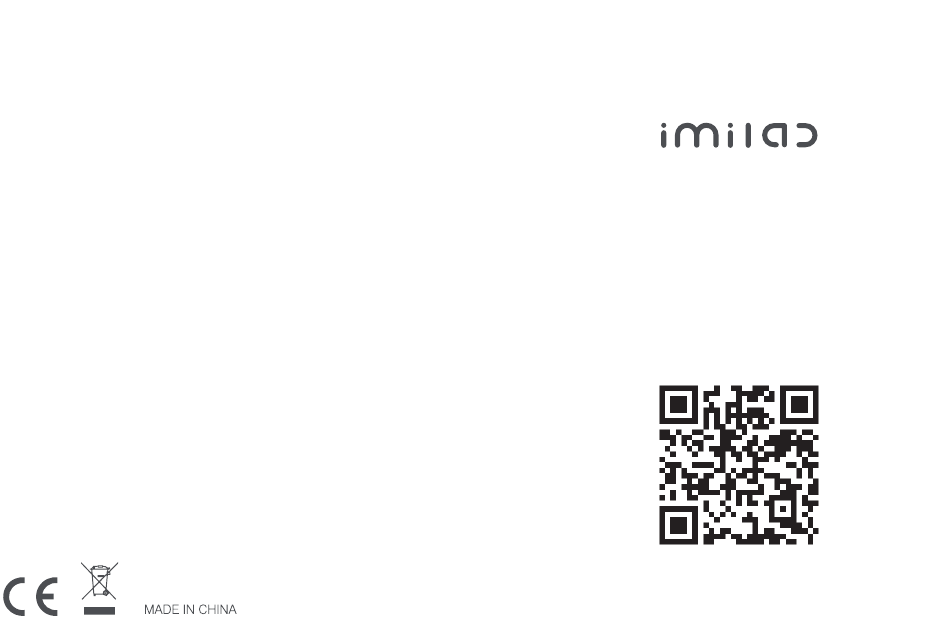

Scan the QR code with your mobile phone

to get the manual in more languages

Table of Contents

Need help?

Do you have a question about the V1 and is the answer not in the manual?

Questions and answers

Summary of Contents for imilab V1

Page 1 Manufacturer: Shanghai Imilab Technology Co., Ltd. Address: Room 001A, Floor 11, Block 1, No. 588 Zixing Road, Minhang District, Shanghai, China For further information, please go to www.imilab.com. Support: help@imilab.com Scan the QR code with your mobile phone to get the manual in more languages...
Page 2: Table Of Contents
Contents Please read this manual carefully before using the product and keep it in a safe place for future reference. The adapter of the product is intended for use up to a maximum height of 2,000 meters above sea level. I n t r o d u c t i o n ·...
Page 3: Introduc Tion
Introduc tion Smart recharge Short press the button to activate smart recharge. Network settings Slow flashing yellow light indicates that the product is recharging or the battery is While the product is powered on, running low. press and hold the buttons The blue breathing light indicates that the product is in charging.
Page 4 Main body and sensors Directional wheel Side brush Cliﬀ sensors Lidar Cover Button Middle brush cover Roller brush Left wheel Infrared receiving Collision sensor Charging plates Right wheel 2-in-1 dust box and water tank sensor...
Page 5 2-In-1 water tank Dust collection dock (dust collection and charging 2-in-1) Cover Water inlet Open the cover to put in/take out dust bag Water tank Dust box release button Dust box catch Indicator light Dust box Dust bag chamber Infrared lens Mop cloth holder Mop cloth Charging and dust...
Page 6: Installation
Installation Installing the dust collection dock 1. Place the dust collection dock against a wall and on a level surface. Plug in the power cable to a compliant socket and turn on the power. Fan filter Place it against a wall Dust bag handle 2.
Page 7: Operation
Operation 5. Network connection and firmware update Scan the QR code on the robot vacuum to download the app. 1. Powering on/o Open the app and follow the on-screen instructions to connect Press and hold the “ ” button for 3 seconds to power on the to a Wi-Fi network.
Page 8 2. Press the dust box release button to remove the 2-in-1 dust 5. Press and hold the “ ” button for 3 seconds to power on box and water tank. When using the 2-in-1 water tank for the the robot vacuum. Short press the “ ”...
Page 9: C O N N E C T I N G T O W I - F
Connec ting to Wi-Fi Resetting Wi-Fi connection When there is a need to reset the Wi-Fi connection due to a change of router or Wi-Fi password, press and hold the “ “ and “ ” Using the Mijia app buttons together for 10 seconds. Wait for the Wi-Fi indicator light to This product is part of the Mijia product family and can be controlled ﬂash quickly in blue.
Page 10 3. Take out the ﬁlter. 5. Add clean water to the dust box and close the cover. Shake the dust try and pour out the dirty water. Repeat a few times until the dust box is clean. Filter cover Filter 6.
Page 11 Cleaning the main brush Cleaning/replacing the side brush 1. The main brush is a consumable material that should be 1. Use a screwdriver to remove the screw on the side brush and cleaned at least once a week. It is recommended to replace the take the side brush out.
Page 12 Replacing the dust bag Cleaning the dust vent 1. When the dust bag is full, the indicator on the dust bag’s 1. If the indicator on the dust collection station continues to display will flash in orange. You may also receive an app flash in orange even after the dust bag is replaced, unplugged notification.
Page 13: D A I L Y M A I N T E N A N C
Cleaning the sensors Dust collection and charging stand: 1. It is recommended to use a piece of dry, soft cloth to gently Infrared lens x 2 wipe the di erent sensors once a week to ensure that the robot Charging and dust collection sensor heads x 2 vacuum can operate normally.
Page 14: T R O U B L E S H O O T I N
Basic parameters Troubleshooting Main device Error message Solution Product name IMILAB V1 Vacuuming Robot Please check and remove any foreign Error 1: Please check that Model no. CMSDJ707A objects near the lidar or move the the lidar is not covered.
Page 15: F R E Q U E N T L Y A S K E D Q U E S T I O N
Frequently asked questions The device did Please ensure that the device is not in do not not resume disturb mode. In this mode, the device will not cleaning after resume cleaning. The device will not resume Question type Solution stopping for a stand to recharge.
Page 16: P R E C A U T I O N
Precautions Do not use the lidar cover as a handle to carry the product. Please clean and maintain the product and charging stand This product is only intended for use to clean the floor in an while they are powered o . indoor household environment.
Page 17 EU Declaration of Conformit y Hereby, Shanghai Imilab Technology Co., Ltd. declares that the radio equipment type IMILAB V1 Vacuuming Robot is in compliance with Directive 2014/53/EU.

This manual is also suitable for:

Cmsdj707a
