Page 1

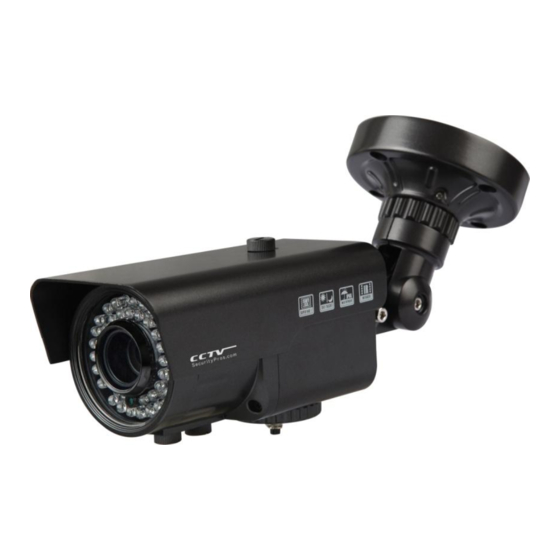

1AMP 12V DC The CSP-700SE is a “New Generation” camera with SONY EFFIO-E DSP. It was designed to provide the user with stunningly clear images in both day and night. The camera has a Day/Night auto-switch which automatically produces a black and white/infrared image in low light.
Page 2
CAUTION: Do not attempt to service this video product by yourself as taking apart camera may expose you to dangerous voltage or other hazards. Please comply with all electrical safety standards during installation and operation. In order to prevent damage caused by fire or electric shock, please do not submerse camera in water or expose any open parts to liquid.
Page 3
Frequently Asked Questions: No Image Check the power cable to the power box or wall outlet. Make sure video and power connections are secure. Do not switch on power until camera connection is complete. If using a multiple output power box, make sure the power switch is in the “ON” position &...
Technical Specifications 1/3" SONY EXVIEW CCD II Sony Effio-E 4127 DSP Imaging Sensor PAL:976(H)×582(V); Pixel NTSC:976(H)×494(V) Signal System PAL/ NTSC Syn. System Internal Synchronization PAL:1/50~1/100000s; Shutter speed NTSC:1/60~1/100000s S/N Ratio More than 50dB(AGC OFF) Video Output 1.0Vp-p, 75 ohms Horizontal resolution Color: 700TVL, B/W: 730TVL Color 0.1Lux(F1.2,50IRE,AGC ON)
