WIRING DIAGRAMS:
There are 3 basic wiring schemes for the GFA-4302 and GFA-4402:
they are as follows:
1. Stereo
2. Mono
3. MoSt™ (Mono/Stereo simultaneously)
In the Stereo _ mode,
the RCA
interconnect
cables
connect
to the
Amplifier as follows: The left cable to A+ input and the right cable to B+ input.
Speakers hook up normally: "A+" and "A-" outputs to LEFT speaker(s) (+)pos &
(-)neg, and "B+" and "B-" outputs to the RIGHT speaker(s) (+)pos & (-)neg. See
Fig.2. Remember to insert the RCA Shorting Plugs in the unused inputs.

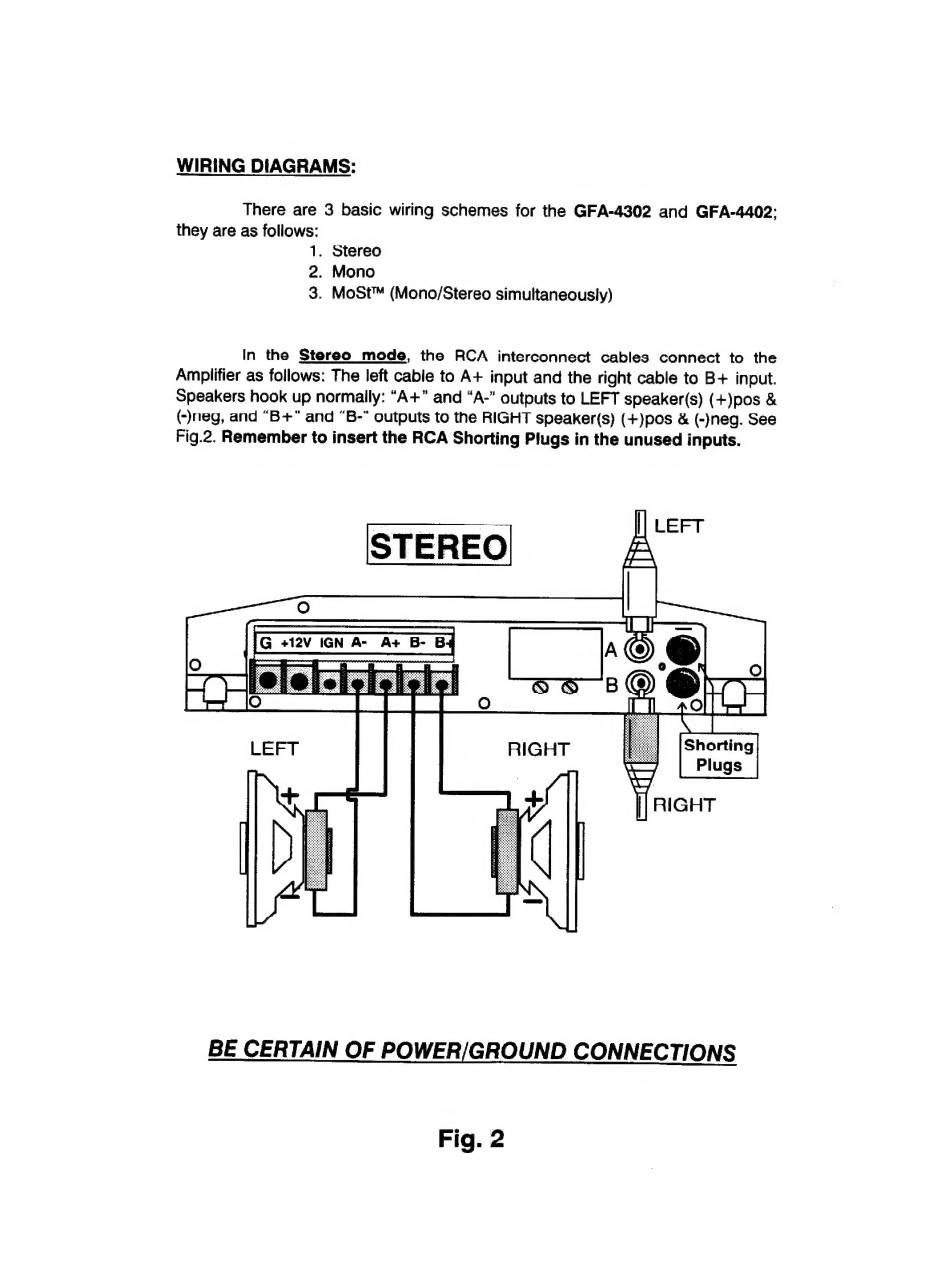

Fig. 2
