Duke FLEX BAKE 5 ELC0017-5 Instruction Sheet

Table of Contents

Download this manual

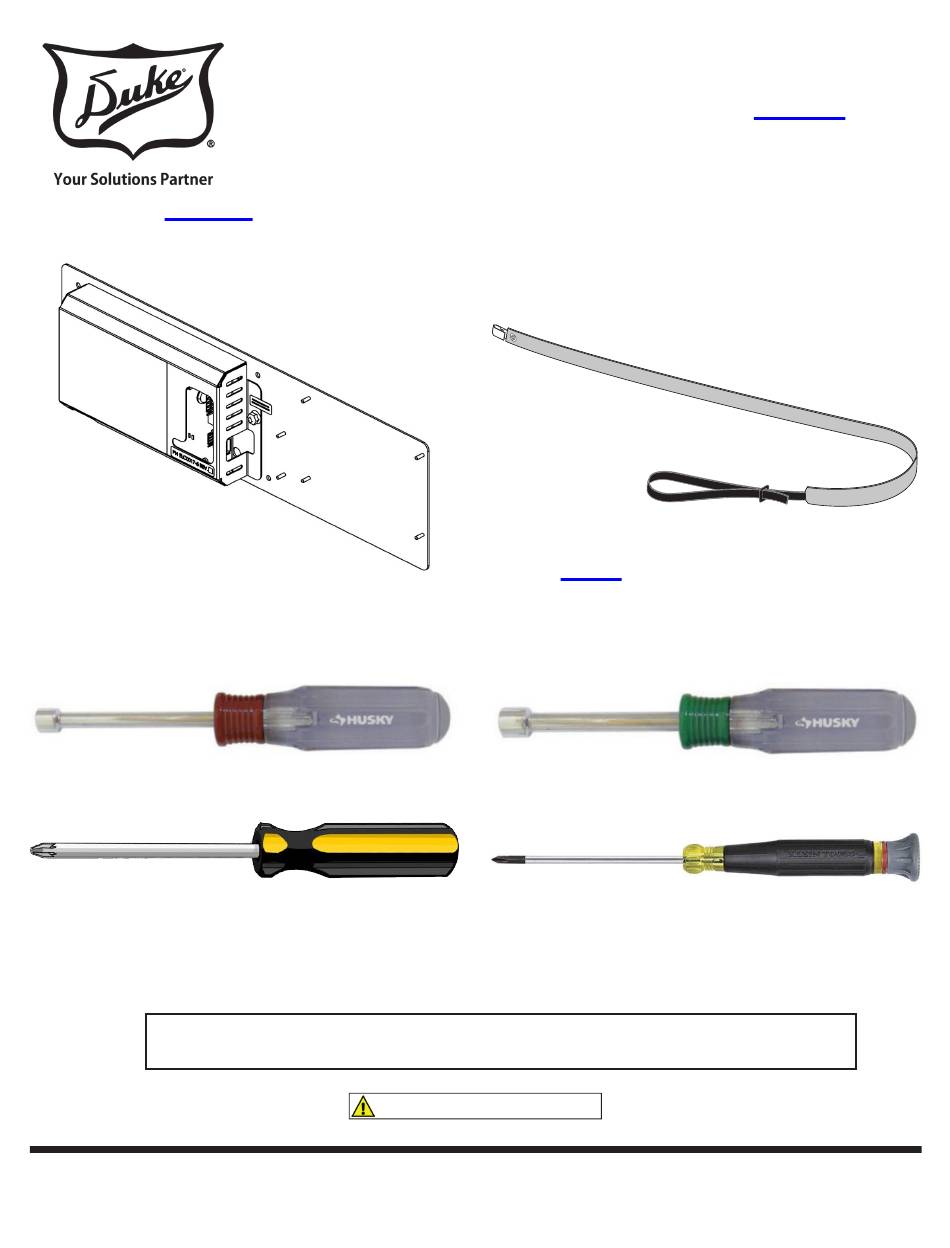

Parts in Kit

600521

ELC0017-5 TSC Control, Flex Bake 5

Tools Needed

1/4" Nut Driver

Phillips Screw Driver

CAUTION:

FLEX BAKE 5

Please read these instructions completely before attempting

to install, operate or service this equipment.

WARNING: Cancer and Reproductive Harm -

www.p65warnings.ca.gov

Reproduction without written permission is prohibited. Duke is a registered

trademark of the Duke Manufacturing Co.

Instruction Sheet

ELC0017-5 DUKE KIT#

512418

Strap, Disposable Wrist ESD

Small Electronic Phillips

600521

11/32" Nut Driver

P/N 514149

REV B 03/19/2020

Table of Contents

Need help?

Do you have a question about the FLEX BAKE 5 ELC0017-5 and is the answer not in the manual?

Page 1 WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov This manual is Copyright © 2020 Duke Manufacturing Co. All rights reserved. Reproduction without written permission is prohibited. Duke is a registered trademark of the Duke Manufacturing Co.
Page 2 FLEX BAKE 5 ELC0017-5 Replacement Instructions ELC0017-5 Replacement Instructions Slide the control panel forward and tilt down WARNING HAZARDOUS VOLTAGE the control panel. RISK OF ELECTRIC SHOCK CAUTION Connect ESD Wrist strap to Unit. Turn OFF the unit’s Power. Disconnect unit from Mains Supply Voltage...
Page 3 FLEX BAKE 5 ELC0017-5 Replacement Instructions ELC0017-5 Replacement Instructions - continued Remove the four nuts holding the assembly. Transfer the large PCB to the new ELC0017-5 assembly. Do not remove the nuts holding the cover CAUTION Note: MAKE SURE ORIENTATION IS CORRECT.
Page 4 FLEX BAKE 5 ELC0017-5 Replacement Instructions Slide the assembly into place making sure Re-install the two screws removed in step 2. it is under the bracket holding the wireless antenna. Remove all lockout/tag out and turn unit on. Measure incoming voltage to oven and...
