ATHOS Box Easy

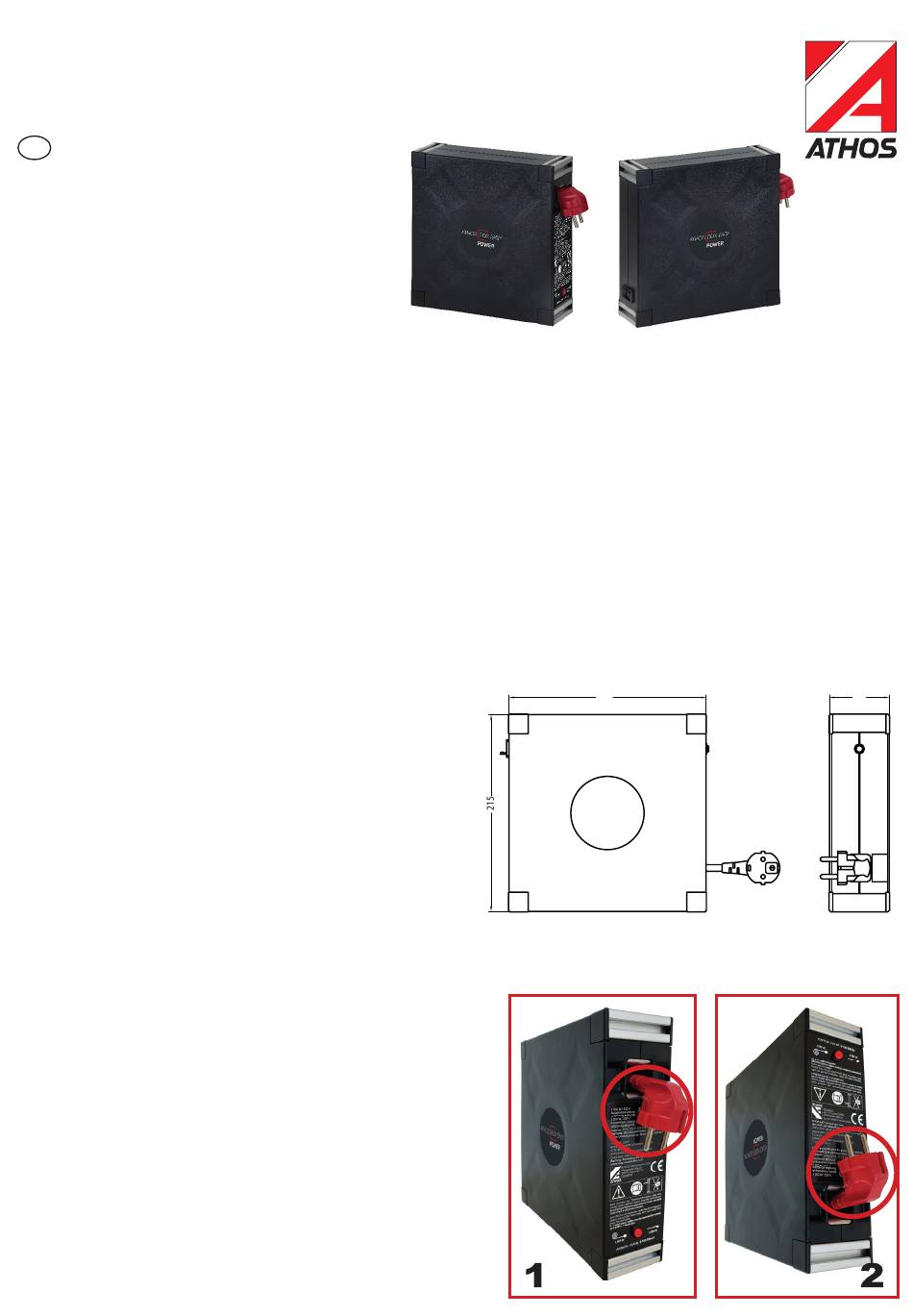

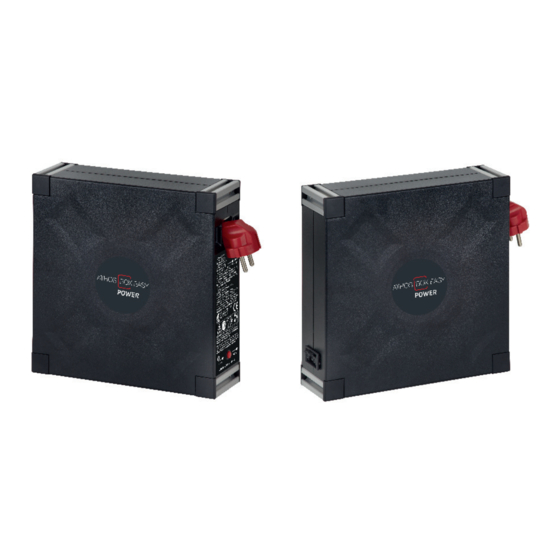

Automatic cable rewinding system with housing
Art.no. 5-155-006-01
Instruction manual
GB

Introduction

Please read these operating instructions completely
before use/installation, keep it in a safe place and
pass them on to third parties if necessary.

Intended use

The unit is designed as an automatic cable rewind system in a housing with an extendable cable and plug. An earthing con-
tact plug connects the unit to the mains supply and a WIELAND GST 18 socket can be used to supply appliances, furniture,
etc. with power.
The ATHOS Box Easy Power is only approved for dry indoor areas. Any other use or modifi cation of the unit is con-
sidered improper and involves a considerable risk of accident. The manufacturer accepts no liability for damage resulting
from improper use.

Scope of delivery

Immediately after unpacking, check that the scope of delivery is complete and that the unit is in perfect condition.
• 1x ATHOS Box Easy Power with cable management with automatic rewind.
• 4x aluminium rails incl. 8 black cover caps.
Optional accessories (see page 2 and illustrations on page 3) can be ordered separately.

Technical Data

• According to DIN EN 61242:1997+A1:2008+A2:2016+A13:2017
and certifi ed according to 2014/35/EU Low Voltage Directive
• Operating voltage:
• Overheating protection: Yes
• Protection class:
• Protection type:
• Cable length:
• Cable type:
• Max. Load:
• Overload protection:
• 1x WIELAND socket GST 18

Assembly

• We recommend using the ATHOS Box Easy Power in a vertical orientation and positioning the cable inlet at the top
(1). The cable inlet can only be at the bottom if it is installed near
the fl oor (2).
• The ATHOS Box Easy Power has four aluminum rails on the
corners of the housing. Mounting brackets, screws and slot
stones (see Fig. "Fastening material" on page 3) are available
as optional accessories that are not included in the scope
of delivery.
• These are mounted on the aluminum rails on the housing. The
mounting brackets can be fl exibly rotated, adjusted and fi xed
with a screw using the slot stones inserted into the rail. The
black cover caps on the sides do not need to be removed
for this.
• You can then attach the rewinder to walls, appliances or fur-
niture etc. in diff erent ways (see sketches & pictures on page
3). For this, please use separate, suitable fastening material
(such as dowels and special screws).
Power
230 V / 50 Hz
1
IP20
7.0 metres usable
H05V2V2-F3G1.0
Rolled up 1,000 watts / 4.4 A
Unrolled 2,000 watts / 8.7 A
10 A reset fuse
215
