Computherm DS5-20 Operating Instructions

Operating instructions

for the COMPUTHERM DS5-20 and DS5-25

type dirt separators

Contaminants are always present in heating and cooling systems. They

can accumulate over time and can cause clogging, failure, performance

degradation, or noise. To prevent this, dirt must be separated from the system.

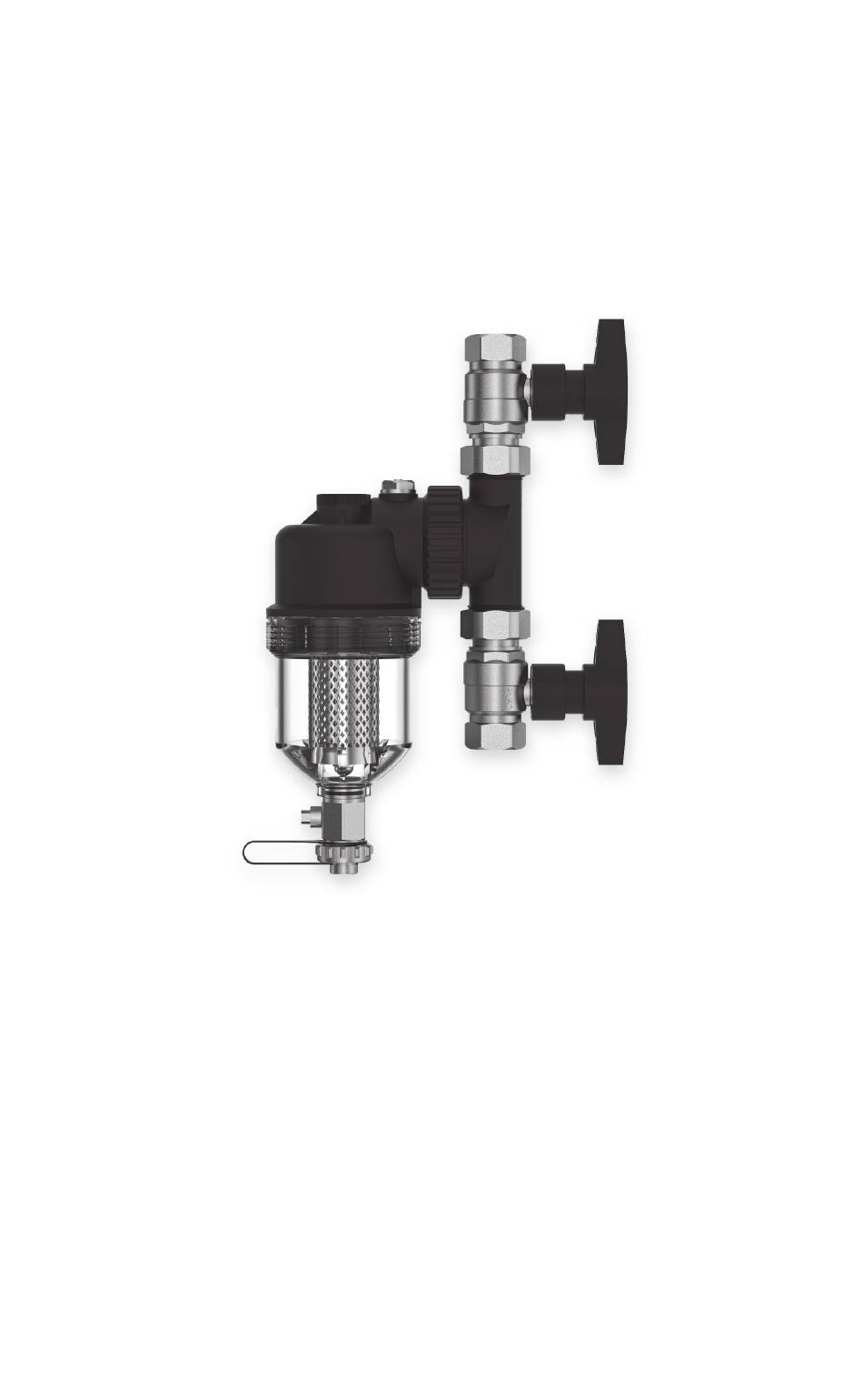

The COMPUTHERM

and

magnetic dirt separators serve this

DS5-20

DS5-25

purpose, with their design, fi lter and strong magnet, they eff ectively remove both

magnetic and non-magnetic dirt from the heating/cooling systems, allowing the

proper operation of the system and increasing its lifetime.

The products are easy to install and maintain. No need to replace seals or other

parts during maintenance and cleaning. The magnetic dirt separators are much

more effi cient than conventional fi lters and require less maintenance.

Table of Contents

Need help?

Do you have a question about the DS5-20 and is the answer not in the manual?

Page 1 Operating instructions for the COMPUTHERM DS5-20 and DS5-25 type dirt separators Contaminants are always present in heating and cooling systems. They can accumulate over time and can cause clogging, failure, performance degradation, or noise. To prevent this, dirt must be separated from the system.
Page 2 Attention! Install the product in a dry place which is not exposed to frost and easily accessible for maintenance. Attention! For higher efficiency, the installation diameter of the dirt separator must match the pipe diameter of the system. The COMPUTHERM pipe DS5-20 diameter is ¾”...
Page 3 Before installation, ensure a suitable location for the dirt separator in the hea- ting/cooling system. To do this, note the dimensions of the ball valves and the dimensions of the plugs/connectors. The product can be installed in vertical, horizontal and skew pipe systems too, but take care that the dirt separator housing should always be vertical and the drain tap must be located at the bottom of the product.
Page 4 4 bar Minimum operating temperature: 0 °C Maximum operating temperature: 100 °C Maximum flow rate: 53 l/min (DS5-20) or 92 l/min (DS5-25) 1,6 m /h (DS5-20) or 2,8 m /h (DS5-25) Magnetic strength: 12000 Gauss...
