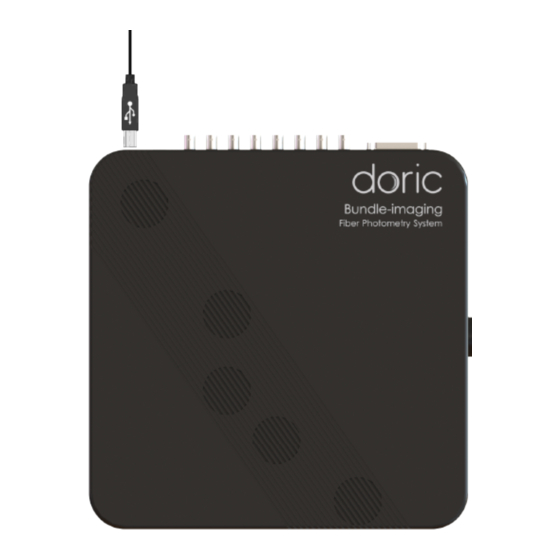

Summary of Contents for DORIC Bundle-imaging Fiber Photometry System Gen3
- Page 1 Bundle-imaging Fiber Photometry System Gen3 User Manual Version 1.0.0...
-
Page 2: Table Of Contents
Contents 1 Introduction 2 System Overview 3 Getting Started : General Setup Guidelines 4 Specifications 4.1 General specifications ..........4.2 Optical specifications . -
Page 3: Introduction
fiber within the bundle creates circular spots on a CMOS sensor. The electrical read-out from pixels within each fiber image correlates with the calcium activity of the corresponding brain site within Doric Neuroscience Studio (Fig.1.1b). The system is available for single and dual color measurements with isosbestic reference excitation (Fig.1.1a). -
Page 4: System Overview
• The BFMC Gen3 is also equipped with a power switch and 2 status lights turning ON when the device is powered on and connected to Doric Neuroscience Studio software (Fig. 2.1). • The 12 VDC power input port is used to power the BFMC Gen3 (Fig. 2.1). - Page 5 Figure 2.2: DB25 port pinout description Chapter 2. System Overview...
-
Page 6: Getting Started : General Setup Guidelines
2. Connect a Bundle Branching Fiber Optic Patchcord to the Sample Port. 3. Connect the BFMC Gen3 to the 12 V AC/DC and 36W power supply. 4. Open Doric Neuroscience Studio. To set up an experiment, refer to Doric Neuroscience Studio user... -
Page 7: Specifications
Specifications 4.1 General specifications Table 4.1: General specifications for BFMC Gen3 SPECIFICATION VALUE UNIT Bundle-imaging Fluorescence Mini Cube Wavelength range 350 to 1100 Field of view Objective NA Optical Fiber connector Max. number of sites - 20x core 400 µm NA0.37 - 60x core 200 µm NA0.37 - 100x core 100 µm NA0.37 Excitation Uniformity... -
Page 8: Optical Specifications
Physical properties Size 310x310x66 Mass 3700 Power supply Voltage 110 - 240 DC power supply Power Output current Table 4.2: Computer requirements for BFMC Gen3 installation Operating system Microsoft 10, 64 bit Memory 8 GB RAM minimum (16 GB recommended) Processor speed 3 GHz and 8 cores Hard drive... -
Page 9: Support
5.2 Warranty This product is under warranty for a period of 12 months. Contact Doric Lenses for return instructions. This warranty will not be applicable if the unit is damaged or needs to be repaired as a result of improper use or operation outside the conditions stated in this manual.
