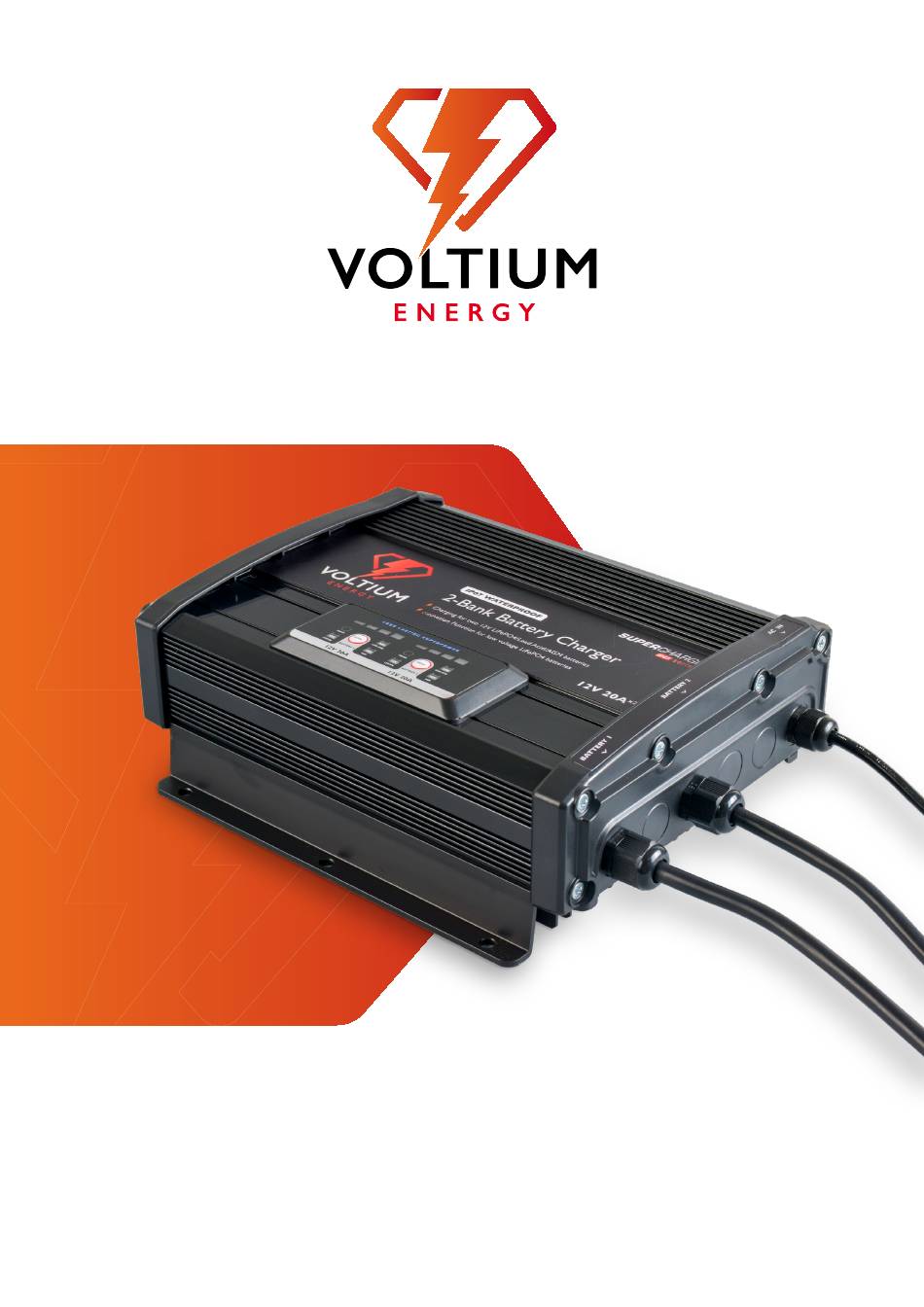

- Page 1 USER MANUAL Voltium Energy SuperCharge 2&4 Bank IP67 Charger ®...
- Page 2 Thank you for purchasing the Voltium Energy SuperCharge Charger. ® Please follow the guidelines provided in this manual during the operation, maintenance, and repair of this charger. The manufacturer states that they are not responsible for the outcomes of its operation.
-
Page 3: Table Of Contents
TABLE OF CONTENTS TECHNICAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . 4 FEATURES . -
Page 4: Technical Specifications
TECHNICAL SPECIFICATIONS 2-Bank Battery Charger 4-Bank Battery Charger Product Name 2x12V 20A 4x12V 20A VE-SC-IP67-2BANK- VE-SC-IP67-4BANK- Model 12V20A 12V20A Nominal AC Input Voltage 220-240V AC 220-240V AC Nominal AC Input 50Hz 50Hz Frequency Output 2*12V/20A 4*12V/20A Product Size 304*245*99mm 556*245*99mm Each bank is equipped Each bank is equipped with a MODE button for... -
Page 5: Features
FEATURES IP67 Rating; ۗ Capable of charging 2-4 batteries simultaneously (Quantity varies ۗ by model); Built with marine-grade construction; ۗ Equipped with an aluminum stretched plate and waterproof ۗ cooling fan at the bottom for efficient heat dissipation; Includes LED indicators to display battery charging percentage; ۗ... -
Page 6: Introduction
INTRODUCTION The Voltium Energy® SuperCharge IP67 Waterproof 2- and 4-bank battery charger is specifically designed to charge 12V LiFePO4, Lead acid, and AGM batteries. This charger enhances battery life and reliability through its built-in protection features. It can charge in serial connected 12V batteries (of same the model) to full capacity for a balanced battery setup or simultaneously charge various 12V batteries. -
Page 7: How It Operates
HOW IT OPERATES When the charger is connected to AC voltage and the output cable is unconnected, the LED Power Indicator on the panel remains solid, and the bank panel displays the last-selected battery type. To choose the battery type for charging, simply press the mode button. The charger will retain your selection, automatically recognizing it each time you connect the input in the future. - Page 8 CHARGING STATUS EXPLANATION LED INDICATORS 25% Red LED The 25% Charge LED will light up when the battery voltage is lower than 12.5V. 50% Red LED The 50% Charge LED will light up when the battery voltage is higher than 12.5V but lower than 13.7V. 75% Red LED The 75% Charge LED will light up when the battery voltage is higher than 13.7V.
-
Page 9: Operation Method
OPERATION METHOD 1. MATCHING THE CHARGER WITH THE AC POWER GRID AND BATTERY PACK: Before using the charger, ensure that the AC power grid voltage and frequency fall within the specified range indicated on the “Basic Parameters” label. If the voltage is lower than the nominal input voltage (less than 220V), the charger will automatically shut down for protection and affecting battery charging performance. -
Page 10: Protection Function
PROTECTION FUNCTION SHORT-CIRCUIT OR REVERSE CONNECTION PROTECTION: When the output terminals are short-circuited or reverse-connected to the battery, the charger will not provide any DC output. In this case, the LED Power Indicator will flash rapidly. NO-LOAD PROTECTION: If the batteries are not connected, the charger will not output any DC current. OVERTEMPERATURE PROTECTION FUNCTION: When the temperature inside the charger’s radiator reaches or exceeds 80°C±5°C, the charger will automatically reduce the output current as a safety measure against overheating. -
Page 11: Warning
WARNING This appliance is not intended for use by individuals, including children, with limited physical, ࠠ sensory, or mental capabilities or those who lack the understanding and knowledge required for safe operation. Use this charger exclusively for charging 12V LiFePO4 / Lead Acid / AGM Batteries. ࠠ... -
Page 12: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS: PROTECTION FROM WATER: DO NOT expose the plug or ring terminals to rain or snow. ࠠ DO NOT submerge the charger in water or use it when the AC plug is wet. ࠠ PROPER HANDLING: When disconnecting the unit from the power source, pull the cord by the plug rather than by the cord.
