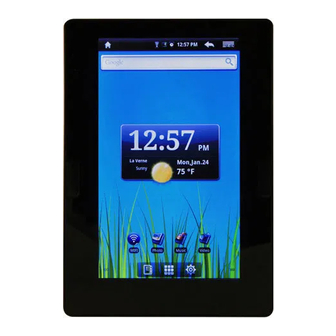

Nextbook NEXT 6 Quick Start Manual

Multimedia Android Tablet
Quick Start Guide
ITEM# NEXT 6
Accessory List
USB Cable AC Adaptor Pouch
Step by Step to Get Started
Step 1 Charge your Nextbook.
Plug the AC adaptor to any standard wall outlet and
the DC-IN port of the Nextbook. It takes about 5 hours
to fully charge the battery.
Step 2 Connect your Nextbook with Wi-Fi.
You can access the Internet with your portable Nextbook. Before launching an
Internet application such as web browser, you first need to configure a
network.
" (1) Tap the WIFI icon fj in the Home Screen.
(2) Tap "Wi-Fi" to turn on the WiFi.
(3) Tap the "Wi-Fi settings", your Nextbook will scan automatically
for available WiFi networks and display them. The list of
available networks shows all the wireless networks in range of
your device,
_ (4) Tap on the network you want to connect to, enter the required _
network information (password) and then tap on "Connect".
Your Nextbook will now attempt to establish a connection to
that WiFi hot spot with the network parameters you entered. If
the connection is successful, the message Connected
to...(Wi-Fi network name) will appear under the WIFI setting.
Step 3 Enjoy your Nextbook!
Buttons & Ports
Front View
a. Touch Screen
b. Previous —briefly press to go back to the
a 7 previous page/press and hold to go back to
bÍ) (le the Home Screen
c. Next —briefly press to go forward to the next
page/press and hold to display menu options.
Bottom View
f g e h
Eon = - ;
== eS =
d. SD Card Slot — accommodates any standard SD memory card.
e. USB Port — connects to computer through USB cable.
f. DC-IN port — connects to any standard electric source through the
provided AC adaptor,
g. Earphone Port —connects to stereo earphones (not included).
h. Power Button/Charge Indicator — Press and Hold for 4 seconds if you
need to shutdown the unit. Gently press once to enter Standby Mode;
Press one@ again to exit Standby Mode; lights in red during charging,
lightsañ green when battery is full.
Rear View
£ p
L Reset pin hole,— Reset your
device if the device freezes.
j. Built-in Speakers
a. Home: Go back to the Home Screen wherever
you are in the interface.
b. Memory Card/USB connection indicator
c. WiFi Connection
d. Battery Level
e. Current Time
f. Return: Return to the previous directory.
g. Menu: Tap to display an overlay setting menu.
h. QuickinternetSearch-You can input anything you
wish to search on the searching Bar ( required
'WIFI connection)
i. Time
j. Weather forecast - Worldwide Cities (required
WiFi connection)
k. Default shortcut —WiFi, Photo Viewer, Music
Player, Video Player
I. E- Reader — Shortcut to E-Reader Page.
m.Applications — Shortcut to Application Page.
n. System — Shortcut to System Setting
How to use the Touch Screen
* The touch screen is capatitive. Different from resistive
touch screen, it does not respond to nails but requires
you to touch with finger pulp.
+ When watching a video or listening to music, you can
tap the progres sion bar to go directly to a different
location in the video or song.
+ In the file browsers (File, Music, Video, Photo, etc.),
you can drag your finger up and down to scroll the file
list up and down.
Customize the Home Screen
You can customize the Home Screen by adding/removing shortcuts and widgets,
changing the wallpaper.
* Toadda Home Screen item (shortcuts, widgets, folders etc.), tap on the Menu
icon Hill and then select "Add" Il. You can also hold your finger on the
screen and then choose an item from the list.
* You can add a folder onto the Home Screen by holding your finger on the
Screen and then choose Folders > New Folder. You ean drag shortcuts or
widgets to the folder.
To rename the folder, a) tap'to open the folder, b) hold your finger on the title
bar of the opened folder until the Rename window pops up, c) input folder
name.
a To move a Home Screen item, hold your finger onto it until it is highlighted,
then drag it to the desired location, and release it.
= To remove a Home Screen item, hold your finger onto it until it is highlighted,
drag it to the recycle bin which turns from the Application Tab, and then.
release your finger.
= To change the wallpaper, from the Home Screen, tap on the Menu icona,
a list of options appears. Tap on "Wallpaper" and then choose a picture as
the desktop wallpaper.
* To change the System Settings, from the Home Screen, tap on the Menu
icon Ed, and then tap on "Settings" [O] Choose a category: "Wireless &
Networks", "Sound & Display', "Date & Time", etc. For more information on
the different settings, see the System Settings section.
Transferring Files
@ Connect your Nextbook to a Computer and
Download Files
(1) Connect your Nextbook to a computer with the supplied USB cable.
(2) Youshouldseetwo removable disk drives in yourcomputer. One represents
the internal memory of your Nextbook, andthe other represents the memory
card inserted into your Nextbook. Now you can copy files from or to them.
@ Remove your Nextbook from computer safely
After you transfer files, disconnect your Nextbook from computer safely.
(1) Left-click the © icon at the right hand comer of the taskbar.
(2) Click the pop-up mini-window with message of "Stop the USB Mass
Storage Device — Drive (X)".
(3) Drag the top bar downwards to reveal the USB notification message. Click
"Turn off USB storage" and then click "Turn Off' to stop the connection.
Drag down
(4) Remove your Nextbook from the computer.
