Summary of Contents for Ibx RC-1

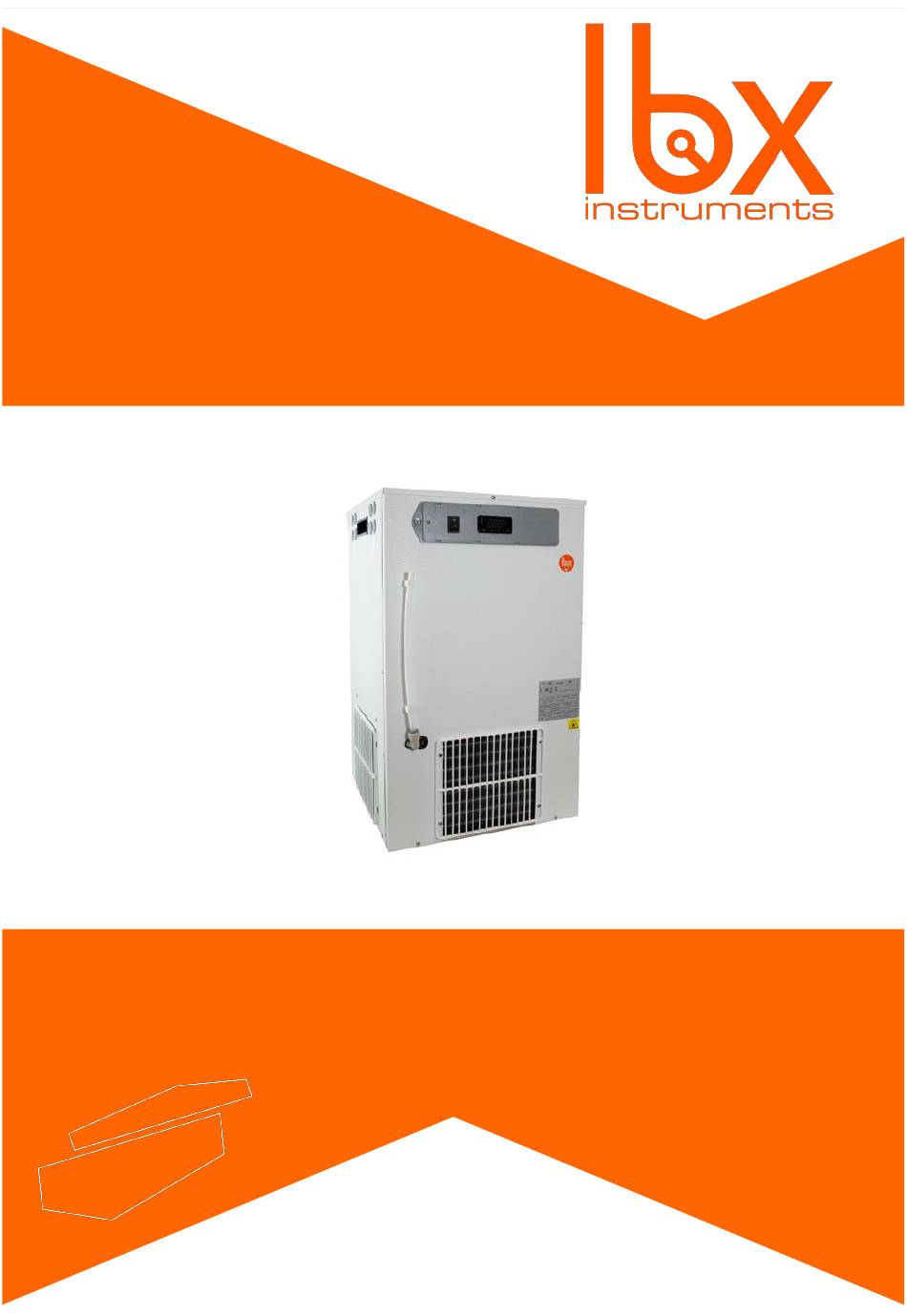

- Page 1 RC-1 Recirculating Chiller Please read the User Manual carefully before use, and follow all operating and safety instructions! user manual english...
- Page 2 Manual de usuario RC-1 Recirculating Chiller Important Notice This instrument is designed for laboratory usage only. Please read this manual carefully before installing or operating this equipment. The instrument shall not be modified in any way. Any modification will void the warranty and may result in potential hazard.
-
Page 3: Operating Tests
INITIAL NOTES Before starting up the recirculator, we want to thank you for your trust in us by acquiring this device. We recommend that you read and follow the steps detailed in the instructions. This manual is designed to provide the necessary information for the installation, startup, and maintenance of the recirculators. -
Page 4: General Connection
1. INSTALLATION 1.0 LOCATION The recirculator must not be tipped over. If necessary, some recirculators can be tilted on the side indicated on the packaging. If no side is indicated, it cannot be tilted. You must wait at least 2 hours after placing it in an upright position before starting it up. - Page 5 1.2 NAMEPLATE Explanation of the nameplate accompanying your equipment. NAMEPLATE NUMBER DESCRIPTION MANUFACTURER COMPANY MODEL SERIAL NUMBER REFRIGERATING POWER WATTS OPERATING VOLTAGE FREQUENCY NOMINAL CURRENT INTENSITY REFRIGERANT GAS TYPE GRAMS OF REFRIGERANT GAS CLIMATIC CLASS REGULATIONS/NORMS Note: This plate is for illustrative purposes only. 1.3 START-UP Before plugging in the recirculator, fill the tank with water or water+glycol, depending on its intended use, and connect all necessary pipes according to the outlets to be used (1 —...
- Page 6 Remove the cap from the tank cover to fill the tank with water or water+glycol. Fill the tank until the level indicator's sphere located on the front of the recirculator reaches its maximum position. The recirculator is equipped with an overflow inside so that in case the liquid overflows, the device does not suffer any damage.
- Page 7 IMPORTANT: Before proceeding, ensure that all connections are correctly made, and any unused inlets/outlets have their caps properly connected to prevent leaks. Once all connections are completed, plug the equipment into the electrical supply and turn on the main switch located on the front electrical box to the “I”...
- Page 8 2. USAGE AND MAINTENANCE RESTRICTIONS CAUTION! Risk of fire and explosion with the flammable refrigerant R600a/R290. WARNING! Do not store explosive substances, such as aerosol cans with flammable propellants, inside this appliance. Ensure that you follow the information related to handling, maintenance, and disposal of the device, especially concerning flammable refrigerants and flammable gas used for expansion in insulators used in the appliance.
- Page 9 Protect the appliance, its power cord, and the power plug from heat, dust, direct sunlight, water drips, and splashes. Keep the electrical components away from hot surfaces and exposed flames. Place the appliance on a wide, level, dry, clean, and stable surface capable of supporting the combined weight of the appliance and its contents.
-
Page 10: Maintenance
3. MAINTENANCE Through these guidelines, we aim to provide you and our technical support service with assistance to ensure that the recirculator continues to provide you with excellent service throughout its lifespan. We will cover the cleaning that you can perform yourself, as well as a brief machine check before contacting the technical service. -
Page 11: Disposal Of Old Devices
3.2 DISPOSAL OF OLD DEVICES For detailed information about recycling this product and its packaging, please contact your local city office, waste disposal service, or the manufacturer through their service agent. By ensuring that this product and its packaging are disposed of properly, you will help prevent potential negative consequences for the environment and human health that may result from improper disposal. - Page 13 www.labbox.com...
