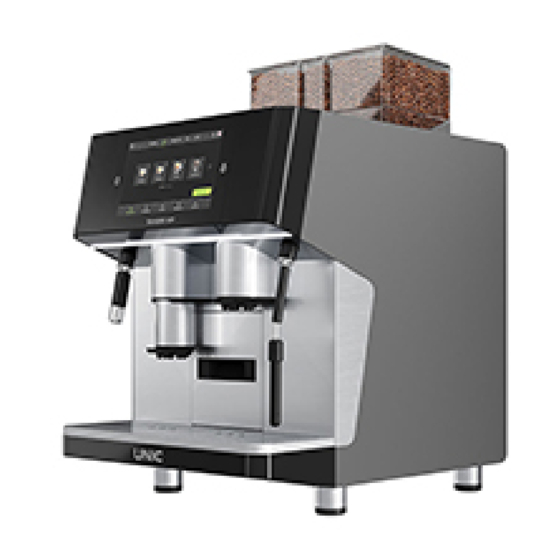

Summary of Contents for TanGO DUO XP
- Page 1 TANGO® DUO XP User manual * NA9220- 2023.06 *Original instructions...
- Page 2 Installation diagram 50 mini 50 mini 50 mini...
- Page 3 DO = Drain outlet EQ = Equipotential screw EI = Electricity inlet CWI = Cold water inlet 3/8″...
- Page 4 Foreword Read the following instructions, including the warranty terms before installing and using the appliance. Visit our website www.electroluxprofessional.com and open the Support section to: Register your product Get hints & tips of your product, service and repair information The installation, use and maintenance manual (hereinafter Manual) provides the user with information necessary for correct and safe use of the appliance.
-
Page 5: Table Of Contents
Contents A SAFETY INFORMATION ......................... 6 General information ........................6 General safety ..........................6 Personal protection equipment ......................7 Transport, handling and storage ...................... 7 Installation and assembly ....................... 8 Water connection.......................... 8 Electrical connection ........................8 Use ............................9 appliance cleaning and maintenance .................... -
Page 6: Asafety Information
SAFETY INFORMATION General information To ensure safe use of the appliance and a proper understanding of the manual it is necessary to be familiar with the terms and typographical conventions used in the documentation. The following symbols are used in the manual to indicate and identify the various types of hazards: WARNING Danger for the health and safety of operators. -
Page 7: Personal Protection Equipment
• Machine positioning, installation and disassembly must be carried out by the specialised personnel in conformity with the current safety regulations, regarding the equipment used and the operating procedures. Personal protection equipment Summary table of the Personal Protection Equipment (PPE) to be used during the various stages of the appliance's service life. -
Page 8: Installation And Assembly
• Machine transport, handling and storage personnel must be adequately instructed and trained regarding the use of lifting systems and personal protection equipment suitable for the type of operation carried out. Installation and assembly • The appliance is only to be installed in locations where its use and maintenance is restricted to trained personnel. -
Page 9: Use
• Make sure to install the appliance in accordance with the safety regulations and local laws of the country where used. • If the power cable is damaged it must be replaced by the Customer Care Service or in any case by specialised personnel, in order to prevent any risk. •... -
Page 10: Appliance Cleaning And Maintenance
• If the appliance freezes, wait 24 hours at a minimum temperature of 10℃ (50℉) before restarting the appliance. Before connecting the power and water supplies, check that the electrical and water network are in accordance with the technical information plate of the device. -
Page 11: Bgeneral Safety Rules
GENERAL SAFETY RULES Introduction Any anomalous situations are signalled on the control panel display. The machines are provided with electric and/or mechanical During maintenance several risks remain, as these could not safety devices for protecting workers and the machine itself. be eliminated, and must be neutralised by adopting specific Therefore the user must not remove or tamper with such measures and precautions. -
Page 12: Cgeneral Information
Risk a combination of probabilities and risks of 1. DUO XP commercial description injury or harm to health in a hazardous 2. PNC product number code situation. -
Page 13: Responsibility
Steam pressure boiler pressure • repairs not carried out in a workmanlike fashion, and (MPa) replacements with parts different from those specified in the spare parts catalogue (the fitting and use of non-original Temperature (℃) boiler temperature spare parts and accessories can negatively affect appliance Water pressure (MPa) water network pressure operation and invalidates the original manufacturer... -
Page 14: Etechnical Characteristics
TECHNICAL CHARACTERISTICS Data table Capacities Dimensions Coffee waste drawer 75 coffees Width 492 mm [19.4 ″] Numbers of espresso 40 ml / hour Height 810 mm [31.9 ″] Numbers of lungo 100 ml / hour Depth 643 mm [25.3 ″] Hot water Liter / hour Capacity of the big hopper 1kg [2.2 Lbs]... -
Page 15: Coffee
Coffee • GREEN: right mill 6. Icon to access the error codes / alarms activated. Use of coffee group 7. To access to different profiles. On the group, you have the possibility of obtaining up to 64 8. To choose the language. different and programmable, products (16 products per family). -
Page 16: Daily Cleaning Cycles (Duration ~10 Minutes)
Clean regularly and carefully the hoppers with clear water. developed and validated for Screen the Tango; they are compatible Disinfect and clean regularly the screen with soft cloth. with the level of filtration of the group. The use of any other... -
Page 17: Softener
Consumption Coffee/week in Consumption Coffee/ year in Number of cups/weeks (130 Annual Meter Statement CUPS/KG) Inferior to 15 Inferior to 800 Inferior to 2000 Inferior to 100000 15 to 20 800 to 1000 2000 to 2600 100000 to 135000 Superior to 135000 to Superior to 20 to 25 Superior to 1000 to 1300 Superior to 2600 to 3200... - Page 20 Electrolux Professionel SAS Usine de Carros, Z.I. 4ème rue 06510 CARROS, France Tél: (33) 04 92 08 62 60/Fax: (33) 04 93 29 24 23 info.unic@electroluxprofessional.com...
