Use TOPOMETER E-Zy
PRODUCT PRESENTATION
Designed for road network operators and public works companies, the E-zy topometer helps employees to carry
out their various tasks.
▪
Construction site marking
▪
Precise distance measurement
▪
Event counting
▪
Visibility measurements
▪
Road marking surveys

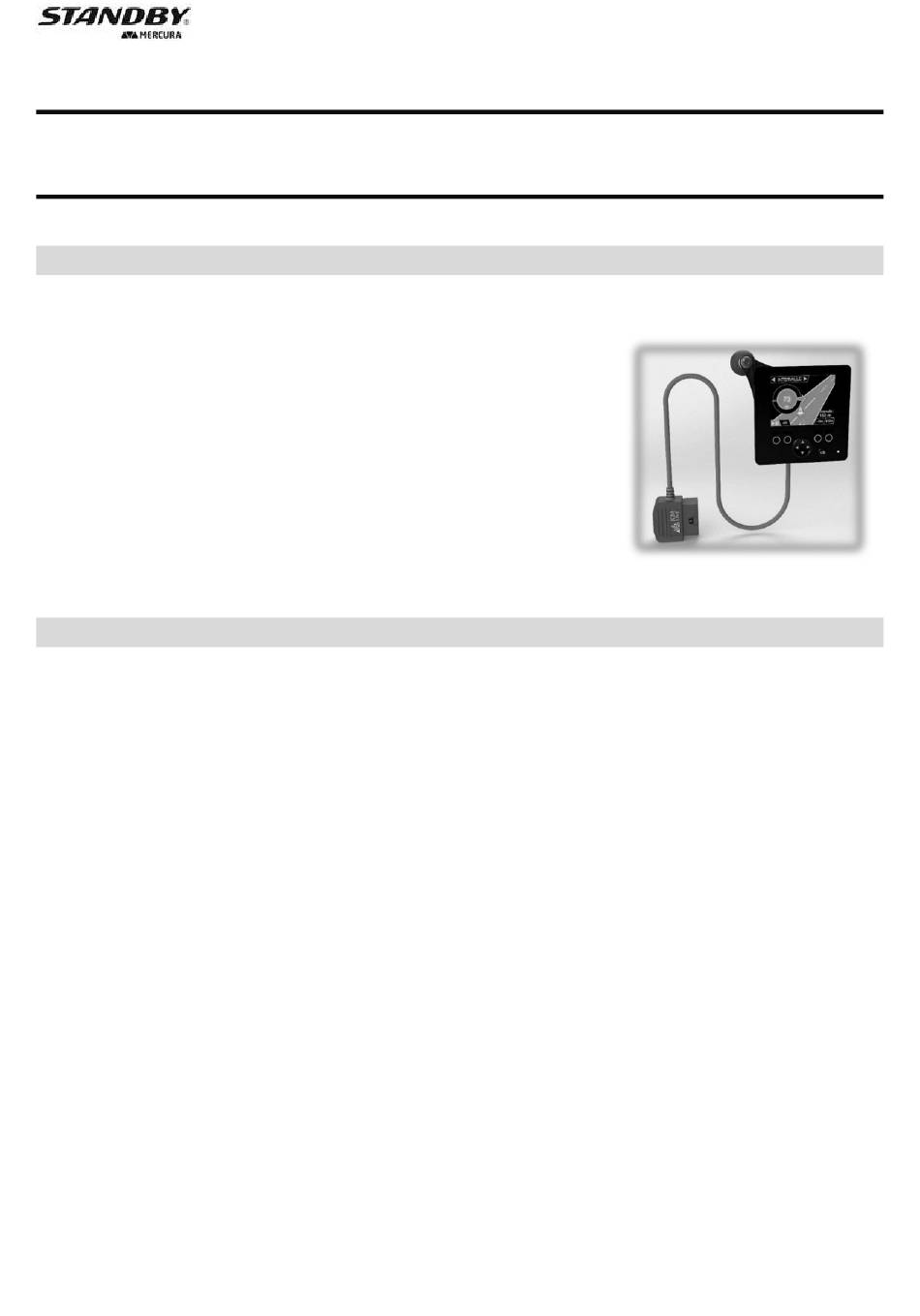

It consists of a colour display, a cable for connection to the vehicle and a swivel bracket.
S
ETTING UP
Fix the topometer in the vehicle so that it can be easily consulted and accessed. Be careful not to install it so that it
obscures the driver's field of vision.
1.
FITTING THE BASE
▪
Screw-on base: use self-drilling screws to secure the base.
▪
Suction cup base: place the suction cup on the windscreen (clean and free of grease) and turn the knob to
lock it in place.
2. FIXING THE DISPLAY TO THE BASE
Use the arm to connect the ball on the base to the ball on the display. You can orientate the display as you wish. Once
you have found the ideal position, tighten the knob on the arm to lock the position.
NOTE : the position of the ball on the display can also be changed in 45° increments. To do this, unscrew the ring at
the back of the display to release the pin and orientate the display on the bracket before retightening the ring to lock
the display on its bracket.
3.
CONNECTING THE DISPLAY TO THE VEHICULE
The display unit is connected to the vehicle using its OBD-II cable. Connect the M12 socket to the rear of the display,
observing the coding, and tighten the ring by hand (do not use tools).
Then connect the OBD-II socket to the vehicle's diagnostic socket. This is located around the driver's compartment,
but may be in different places depending on the make and model of your vehicle.
MU-2001-DIVERS-EN
IndA
36531-00-EN
www.standby-mercura.fr
Siège social : Zone d'Activités « Les Gailletrous » - rue Louis Pasteur- 41260 LA CHAUSSEE SAINT VICTOR
Tel : 02 54 57 52 52 – Fax 02 54 56 80 00
SAS au capital de 102. 400 € - APE (NAF) 2790 Z – SIRET 310 999 891 00040
27/11/2023
1/4
