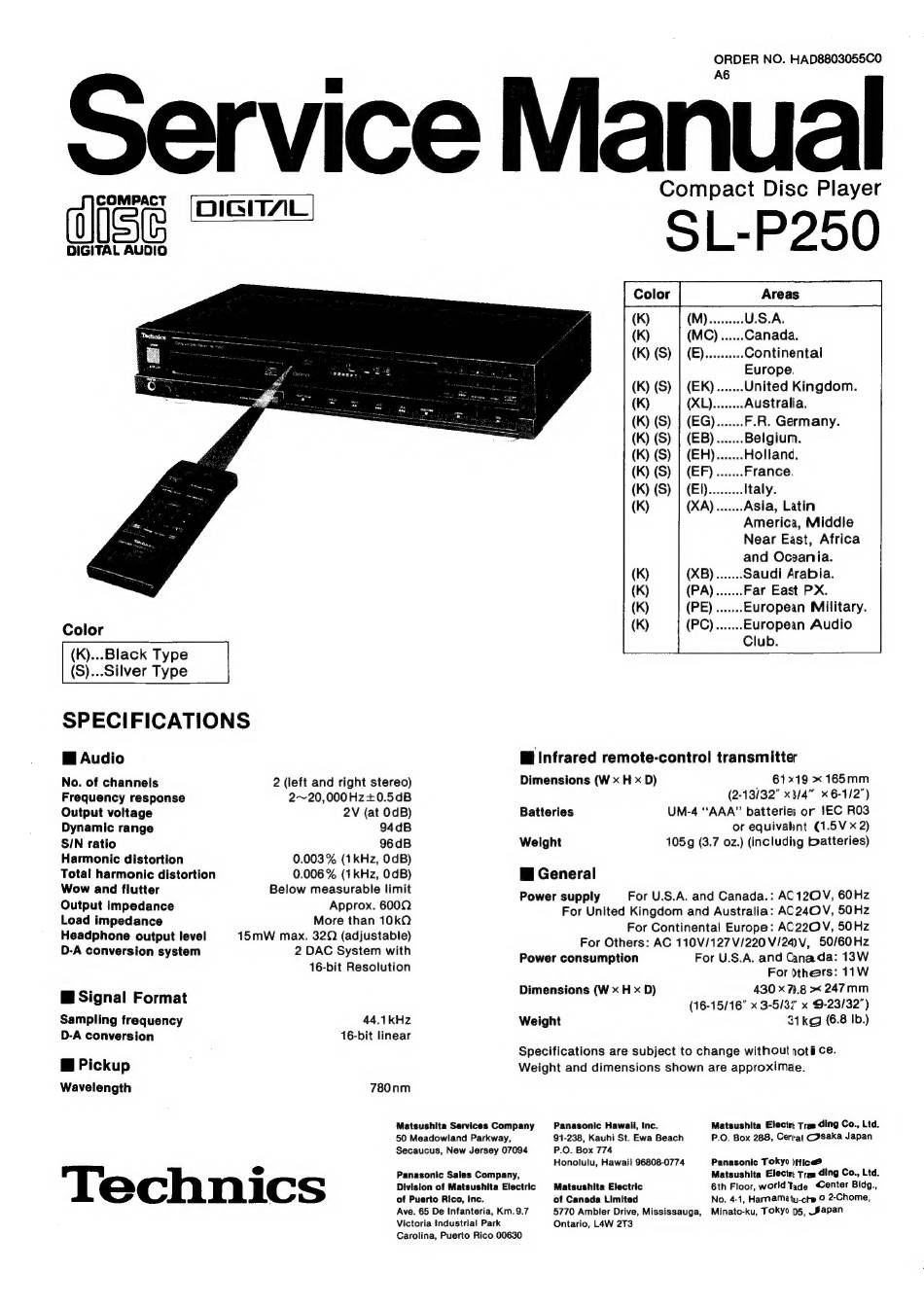

Technics SL-P250 Service Manual

ORDER NO. HAD8803055C0
Compact Disc Player
SL-P250
(K) ween USA,
(K) Canada.
(K) (S) Continental
Europe.
United Kingdom.
COMPACT
[DIGITAL |
DIGITAL AUDIO
(K) (S) | (EK)
(K) (XL) Australia.
(K) (S) | (EG)....... F.R. Germany.
(K) (S) Belgium.
(K) (S) Holland.
(K) (S) France.
(K) (S) | (Ei) Italy.
(K) (XA) Asia, Latin
America, Middle
Near East, Africa
and Oceania.
Saudi Arabia.
Far East PX.
European Military.
(K)...Black Type
SPECIFICATIONS
i Audio i Infrared remote-control transmitter
61x19 x 165mm
No. of channels
Frequency response
Output voltage
Dynamic range
SIN ratio
Harmonic distortion
Total harmonic distortion
Wow and flutter
Output impedance
Load impedance
Headphone output level
D-A conversion system
@ Signal Format
Sampling frequency
D-A conversion
@ Pickup
Wavelength
2 (left and right stereo)
2~20,000Hz+0.5dB
2V (at OdB)
94dB
96dB
0.003% (1kHz, 0dB)
0.006% (1kHz, 0dB)
Below measurable limit
Approx. 600Q
More than 10kQ
15mW max. 32Q (adjustable)
2 DAC System with
16-bit Resolution
44.1kHz
16-bit linear
780nm
Dimensions (W x H x D) :
(2-13/32" x3/4" x 6-1/2")
Batteries UM-4 "AAA" batteries or 1EC R03
or equivaknt (1.5V x 2)
Weight 105g (3.7 oz.) (including batteries)
i General
Power supply For U.S.A. and Canada. : AC12OV, 60Hz
For United Kingdom and Australia: AC24OV, 50Hz
For Continental Europe: AC22OV, 50Hz
For Others: AC 110V/127V/220 V/24V, 50/60Hz
Power consumption For U.S.A. and Canada: 13W
For )thers: 11W
Dimensions (W x H x D) 430 x 7).8 >< 247mm
(16-15/16" x 3-5/37 x 9-23/32")
Weight 31kg (6.8 Ib.)
Specifications are subject to change without notice.
Weight and dimensions shown are approximae.
Matsushita Electr: Tras ding Co., Ltd.
Matsushita Services Company Panasonic Hawaii, Inc.
50 Meadowland Parkway, 91-238, Kauhi St. Ewa Beach P.O. Box 288, Cerral Csaka Japan
Secaucus, New Jersey 07094 P.O. Box 774
Honolulu, Hawaii 96808-0774 Panasonic Tokyo iffice?
Matsushita Elecir; tras ding Co., Ltd.
Division of Matsushita Electric Matsushita Electric 6th Floor, world Tade Center Bidg.,
of Puerto Rico, Inc. of Canada Limited No. 4-1, HarmamMatu-ct» o 2-Chome,
Ave. 65 De Infanteria, Km.9.7 5770 Ambler Drive, Mississauga, Minato-ku, Tokyo 05, sapan
Victoria Industrial Park Ontario, L4W 2T3
Carolina, Puerto Rico 00630
Panasonic Sales Company,
Technics
