Summary of Contents for REICH TOK F2 Series

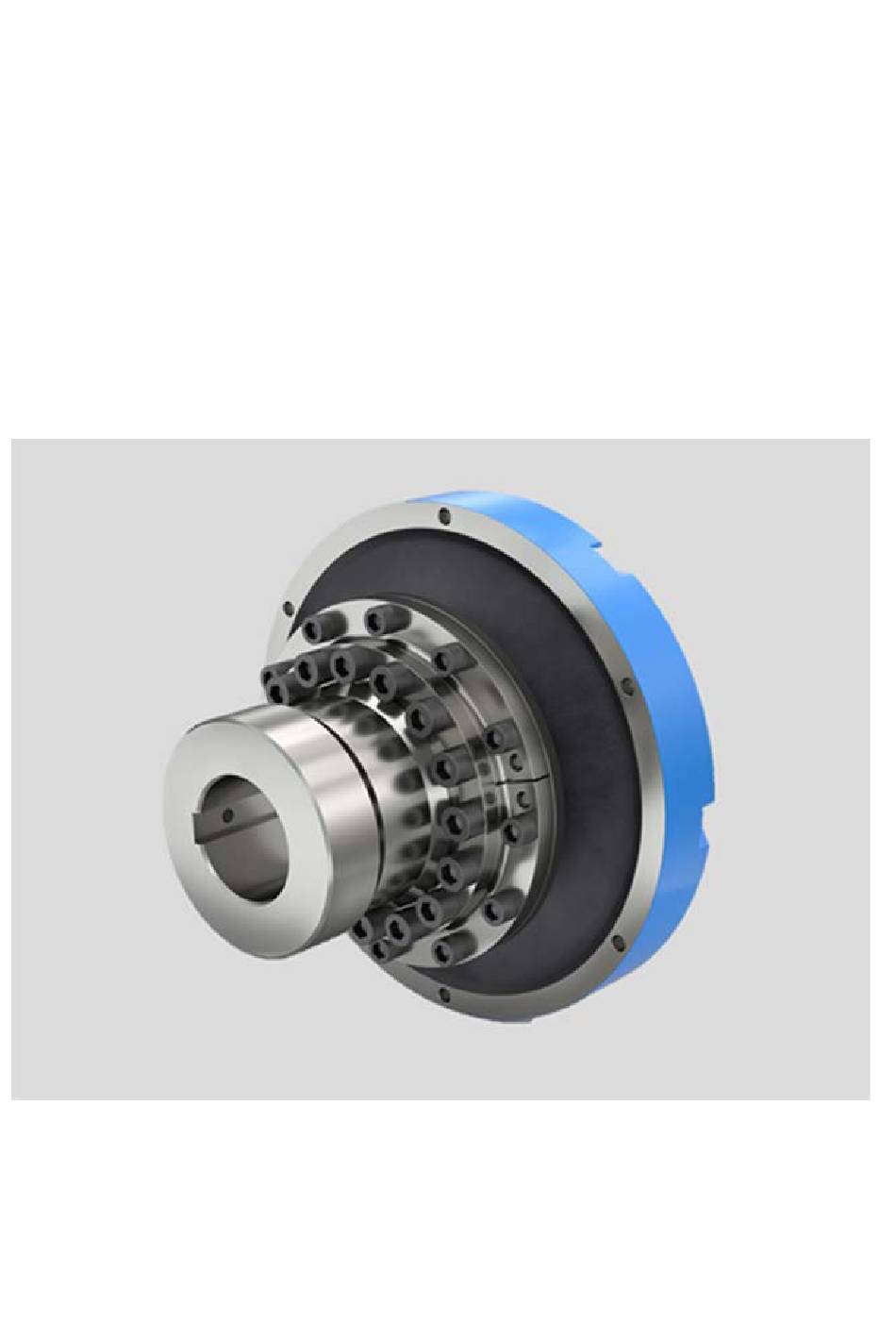

- Page 1 Highly flexible coupling for industrial applications with flexible mounting TOK…F2 TOK…D F2 TOK…F2K TOK…D F2K TOK…TK TOK…D TK TOK…R F2K TOK…R TK Translation of the original German operating instructions 09/2020 - en - 15500004020002...
-
Page 3: Table Of Contents
Contents Notes on the supplementary manual and the manufacturer ....6 Keeping the instructions available ................6 Target group of these operating instructions ............. 6 Copyright ........................7 Related documents ..................... 7 Structural features of these operating instructions ............ 7 Warranty and liability.................... - Page 4 Coupling hub ...................... 28 Union flange ....................... 28 Splited spacer ring ....................29 Operating conditions ..................29 Nameplate ......................... 30 Unpacking and checking the scope of delivery ........31 Unpacking ......................... 31 Checking the supply ....................31 Reporting and documenting transport damage ............31 Disposing of packaging material ................
- Page 5 Torques for the bolted connection of the coupling element, flange and the coupling hub ....................70 Torques for the flywheel bolts ................71 Mounting the protection device ................72 Putting the coupling into operation ........... 73 Operation .................... 74 Eliminating malfunctions ..............75 Detecting malfunctions .....................
-
Page 6: Notes On The Supplementary Manual And The Manufacturer
Notes on the supplementary manual and the manufacturer Notes on the supplementary manual and the manufacturer These operating instructions help you use the coupling properly and safely. Keeping the instructions available These operating instructions are an integral part of the coupling. Make sure that these operating instructions are constantly available at the place of use and in legible condition for the user. -
Page 7: Copyright
These operating instructions must not be copied, printed or reproduced, processed, duplicated or distributed in any way or in any form – either in whole or in part – without the prior written approval of Dipl.-Ing. Herwarth Reich GmbH, hereinafter referred to as REICH. -
Page 8: Warranty And Liability
Failure to observe the notes in the operating instructions regarding transportation, storage, assembly, commissioning, operation, maintenance, cleaning and disassembly of the coupling. Unauthorised modifications to the design of the coupling without consulting REICH. Inadequate monitoring of parts of the machine which are subject to wear. ... -
Page 9: Safety
Safety Proper use The highly flexible Reich TOK coupling has been specially designed for applications requiring extremely low torsional stiffness. Furthermore, it is particularly well suited to the compensation of axial and radial displacements of resiliently mounted drives. The wide range of flexible coupling elements and adaptive designs provides standard solutions for a wide variety of different tasks. -
Page 10: Duties Of The Owner
Safety Duties of the owner The owner of the coupling is bound by laws and regulations to issue instructions which ensure safe operation. The owner must define a “responsible person”. Only this person is authorised to issue a work clearance permit for working on and with the coupling. Work on the coupling described herein must not be executed unless the written work clearance permit for the execution of that work is available from the responsible person. -
Page 11: Duties Of The Personnel
Prohibition of unauthorised conversions Conversions or modifications are permissible only with the manufacturer’s approval. Exclusively use accessories which are approved by REICH for use with the coupling. Exclusively use genuine OEM spare parts. There is no warranty for third-party spare ... -
Page 12: Note Regarding Residual Dangers
Safety Wear ear protectors in areas in which your hearing may be damaged. Wear a respiratory protector during work when your respiratory system may be damaged. Make sure that the work areas and escape routes are not blocked at the place of use. ... -
Page 13: Danger To Life Due To Improper Transportation And Handling Of The Coupling
Safety Danger to life due to improper transportation and handling of the coupling If the coupling or its components are inadequately supported during transport, assembly or disassembly, there is a risk of crushing injuries in the event of the coupling or its components falling down. -
Page 14: Structural Features Of Warning Notices
Safety Structural features of warning notices DANGER Notices containing the word DANGER warn of a dangerous situation which causes death or severe injuries. WARNING Notices containing the word WARNING warn of a dangerous situation which can cause death or severe injuries. CAUTION Notices containing the word CAUTION warn of a situation that may lead to minor or moderate injury... -
Page 15: Warning And Instruction Labels
Safety Warning and instruction labels Observe and comply with the warning and instruction labels which are affixed at the place of use of the coupling. Make sure that none of the warning and instruction signs installed at the coupling's ... -
Page 16: Description
Description Description The couplings in the TOK series, types TOK…F2, TOK…D F2, TOK…F2K, TOK…D F2K, TOK…TK, TOK…D TK, TOK…R F2K and TOK R TK are used to transmit torques and speeds between a drive unit and the driven machine in horizontal position. They reduce torsional vibrations and shock loads and are able to compensate for displacements. -
Page 17: Overview Of Type Tok
Description Overview of type TOK...D F2 This type uses two coupling elements acting in parallel instead of one. It is therefore designed for the transmission of higher torques. Designation Coupling hub Flexible coupling element (with use of through holes) Flexible coupling element (with use of through holes and reversed inner sleeve) Bolts... -
Page 18: Overview Of Type Tok
Description Overview of type TOK...F2K This type enables the flexible coupling element to be replaced without moving the coupled machines. Follow the instructions given on pages 38 and 79. Designation Coupling hub Flexible coupling element (with use of threaded bores) Splited spacer ring Bolts Washers (for aluminium flanges or where necessary) -
Page 19: Overview Of Type Tok
Description Overview of type TOK...D F2K This type uses two coupling elements acting in parallel instead of one. It is therefore designed for the transmission of higher torques. This type enables the flexible coupling elements to be replaced without moving the coupled machines. -
Page 20: Overview Of Type Tok
Description Overview of type TOK...TK This type enables the flexible coupling element to be replaced without moving the coupled machines. Follow the instructions given on pages 38 and 79. Depending on the installation situation, it can be designed either with a splited spacer ring (figure A) or with a union flange (figure B). - Page 21 Description Designation Coupling hub (drive side) Flexible coupling element (with use of threaded bores) Coupling hub (driven side) Union flange 5, 6, Bolts...
-
Page 22: Overview Of Type Tok
Description Overview of type TOK...D TK This type uses two coupling elements acting in parallel instead of one. It is therefore designed for the transmission of higher torques. This type enables the flexible coupling elements to be replaced without moving the coupled machines. - Page 23 Description Designation Coupling hub (drive side) Flexible coupling element (with use of threaded bores) Flexible coupling element (with use of through holes and reversed inner sleeve) Coupling hub (driven side) Union flange 5, 6, Bolts 7, 8...
-
Page 24: Overview Of Type Tok
Description Overview of type TOK...R F2K This type uses two coupling elements acting in series instead of one. This provides increased coupling flexibility. This type enables the flexible coupling elements to be replaced without moving the coupled machines. Follow the instructions given on pages 38 and 79. Depending on the installation situation, it can be designed either with a splited spacer ring (figure A) or with a union flange (figure B). - Page 25 Description Designation Coupling hub Flexible coupling element (with use of threaded bores) Flexible coupling element (with use of through holes) Union flange Adapter flange (optional) 5, 6, Bolts 8, 9 7, 10 Washers (for aluminium flanges or where necessary)
-
Page 26: Overview Of Type Tok
Description Overview of type TOK...R TK This type uses two coupling elements acting in series instead of one. This provides increased coupling flexibility. This type enables the flexible coupling elements to be replaced without moving the coupled machines. Follow the instructions given on pages 38 and 79. Depending on the installation situation, it can be designed either with a splited spacer ring (figure A) or with a union flange (figure B). -
Page 27: Components
Description Designation Coupling hub (drive side) Flexible coupling element (with use of threaded bores) Flexible coupling element (with use of through holes) Coupling hub (driven side) Union flange (drive side) Union flange (driven side) 6, 7, Bolts 8, 9, Components Flange The flange is used for the connection between the outer ring of the coupling element and the coupling hub. -
Page 28: Coupling Element
Description Coupling element The highly flexible coupling element consists of an inner sleeve, elastomer body and outer ring; the connection is designed as an elastomer-metal connection. In many applications the outer ring is designed as an SAE connection; other connections can be implemented with an adapter flange. -
Page 29: Splited Spacer Ring
Description Splited spacer ring The splited spacer ring (3) enables radial disassembly of the coupling without having to move the two connected components. It is installed using 2 assembly screws. Operating conditions Depending on the elastomer mixture of the flexible coupling element, observe the following operating conditions: Elastomer mixture Ambient temperature... -
Page 30: Nameplate
Description Nameplate The nameplate is an adhesive label and affixed to an appropriate place on the coupling. The nameplate contains the following information: Manufacturer's internet address Coupling designation Article no. Order Shipping date. Alternatively, a nameplate according to the customer' specifications can be provided. -
Page 31: Unpacking And Checking The Scope Of Delivery
Unpacking and checking the scope of delivery Unpacking and checking the scope of delivery Unpacking The coupling or its components are delivered in a transport container. Open the transport container. Remove any filler material. Remove the transport protection device. ... -
Page 32: Transporting The Coupling
Transporting the coupling Transporting the coupling DANGER Risk of explosion when operating the coupling in potentially explosive atmospheres. Risk of explosion with fatal injuries. Exclusively use couplings bearing the corresponding ATEX marking in potentially explosive atmospheres. In this respect, read and follow the additional notes in the supplementary manual for ATEX operation. -
Page 33: Transporting The Coupling Hub With Coupling Element
Transporting the coupling In order to transport the coupling or a coupling component weighing more than 25 kg during assembly or maintenance, proceed as follows: Attach the coupling or a coupling component with suitable lifting gear; see from page 33. Call in a second person for assistance. -
Page 34: Transporting The Flange
Transporting the coupling Transporting the flange Transporting the coupling element... -
Page 35: Transportation Of Coupling Hub
Transporting the coupling Transportation of coupling hub... -
Page 36: Storing The Coupling
Storing the coupling Storing the coupling Store coupling parts for a maximum of three years. Treat metal components with a suitable corrosion inhibitor. Make sure that the following conditions for flexible coupling elements are adhered to during storage: Exclusively store the coupling or its components in a dry and roofed location. -
Page 37: Mounting The Coupling
Mounting the coupling Mounting the coupling DANGER Risk of explosion when operating the coupling in potentially explosive atmospheres. Risk of explosion with fatal injuries. Exclusively use couplings bearing the corresponding ATEX marking in potentially explosive atmospheres. In this respect, read and follow the additional notes in the supplementary manual for ATEX operation. -
Page 38: Basic Instructions For The Types Tok
Mounting the coupling Basic instructions for the types TOK…F2K, TOK…D F2K, TOK…TK, TOK…D TK, TOK…R F2K and TOK…R TK These types enable the flexible coupling element to be replaced without moving the coupled machines. The following conditions must be ensured for this purpose: Make sure that the shaft of the driven machine does not protrude from the coupling ... - Page 39 Mounting the coupling The following conditions can reduce the space to such an extent that radial assembly and removal are not possible: The centring in the engine flywheel is mounted too deeply. An interfering edge prevents moving of the union flange. ...
-
Page 40: Preparing For Assembly
Mounting the coupling Preparing for assembly Obtain the work clearance permit from the responsible person prior to all work on and with the coupling. Switch the drive unit off. Secure the drive unit to prevent reactivation. Post up a caution sign indicating that work is in progress. ... -
Page 41: Basic Notes Regarding The Condition Of Delivery
Fully assembled and tightened to the required torque with screw locking compound, for example, adhesive used If there is no marking, you must assume that the condition is pre-assembled. Check all bolted connections and tighten them to the specified torque. If in doubt, contact REICH. - Page 42 Mounting the coupling In the pre-assembled condition, the components are bolted together but not to the required torque. The pre-assembled condition can be recognised by the red tag or adhesive label attached in the factory. All bolts are to be tightened to the specified torque.
-
Page 43: Basic Notes Regarding The Coupling Hubs
Responsibility for performing the rework is upon the customer. REICH will not accept any warranty claims arising from any rework that is performed improperly. - Page 44 Mounting the coupling The following values are recommended for set screws in the threaded bore of the keyways: Bore diameter from – Hub groove width Torque [Nm] to [mm] Bolt size For set screws of [mm] Tolerance strength class 45H range 17-22 22-30...
-
Page 45: Mounting The Coupling Hub On The Shaft
Alternatively, axial locking can be achieved with an end washer. In this case make sure that the coupling hub with the coupling element rests against the shaft shoulder. Other forms of axial locking are also possible. Contact REICH in this respect. -
Page 46: Assembly Notes For A Hub Bore With Press Fit Or Transition Fit
or on a heating plate. The recommended temperature can be calculated depending on the tolerance pairing. Contact REICH in this respect. Place the heated coupling hub onto the shaft of the driven machine. Make sure that the coupling hub cools uniformly. Quenching is prohibited. -
Page 47: Aligning The Coupling
Mounting the coupling Make sure that the markings from joint balancing are in alignment. Mount the flexible coupling element on the coupling hub. Tighten the bolts to the required torque. Aligning the coupling CAUTION! Increased rate of wear to the flexible coupling element due to inadequate alignment of the drive unit and the driven machine. - Page 48 Mounting the coupling Precise alignment has a positive effect on the service life of the coupling and other system components. We therefore recommend using only up to 20% of the permissible radial and angular displacements for the alignment of the installation. During alignment, it is essential to take into account the usual setting behaviour of the unit bearings as well as temperature-related changes in length that influence the mounting length.
- Page 49 Mounting the coupling The permissible coupling misalignment limits are dependent on multiple factors such as coupling size, element hardness, operating speed and torque stress. The guideline values listed in the following table apply to a medium element hardness and a typical speed up to 1500 min Coupling size Maximum permissible misalignment...
-
Page 50: Mounting The Flange
Mounting the coupling Mounting the flange On how to handle the coupling, follow the instructions on page 32. To mount the flange (5) on the coupling element, proceed as follows: Ensure that the connecting surfaces are free of preservative and grease. ... -
Page 51: Mounting The Adapter Flange
Mounting the coupling Mounting the adapter flange On how to handle the coupling, follow the instructions on page 32. To mount the adapter flange (5) on the flywheel of the drive unit, proceed as follows: Ensure that the connecting surfaces are free of preservative and grease. ... -
Page 52: Mounting The Union Flange
Mounting the coupling Mounting the union flange On how to handle the coupling, follow the instructions on page 32. To mount the union flange (4) proceed as follows: Ensure that the connecting surfaces are free of preservative and grease. Make sure that the threaded bores and through holes of the coupling hub (1), the ... -
Page 53: Mounting A Splited Spacer Ring
Mounting the coupling Mounting a splited spacer ring On how to handle the coupling, follow the instructions on page 32. To mount the splited spacer ring, proceed as follows: When mounting the spacer ring, the adjacent components are already installed. ... -
Page 54: Mounting The Coupling Element
Mounting the coupling Mounting the coupling element Type TOK...F2 On how to handle the coupling, follow the instructions on page 32. Ensure that the connecting surfaces are free of preservative and grease. Mount the coupling hub on the shaft; see from page 45. ... - Page 55 Mounting the coupling Carry out a radial and angular alignment (for details on alignment, see the Aligning the coupling from page 47). Align the threaded bores and through holes of the flywheel/adapter flange and coupling element (2) and push the units together to the determined installation dimension.
-
Page 56: Type Tok
Mounting the coupling Type TOK...D F2 On how to handle the coupling, follow the instructions on page 32. To mount the coupling elements (2a) and (2b), proceed as follows: Ensure that the connecting surfaces are free of preservative and grease. ... - Page 57 Mounting the coupling Carry out a radial and angular alignment (for details on alignment, see the Aligning the coupling from page 47). Align the threaded bores and through holes of the flywheel/adapter flange and coupling elements (2a) and (2b) and push the units together to the determined installation dimension.
-
Page 58: Type Tok
Mounting the coupling Type TOK...F2K On how to handle the coupling, follow the instructions on page 32. To mount the coupling element (2) on the flywheel of the drive unit, proceed as follows: Ensure that the connecting surfaces are free of preservative and grease. ... - Page 59 Mounting the coupling Mount the splited spacer ring; see page 53. Insert the bolts (4) and tighten them so that they are hand-tight. Tighten the bolts crosswise with the required torque; see page 70. Mark the bolts which have been tightened to the required torque in colour. ...
-
Page 60: Types Tok
Mounting the coupling Types TOK...D F2K On how to handle the coupling, follow the instructions on page 32. To mount the coupling elements (2a) and (2b) on the flywheel of the drive unit, proceed as follows: Ensure that the connecting surfaces are free of preservative and grease. ... - Page 61 Mounting the coupling Align the threaded bores and through holes of the flywheel/adapter flange and the coupling element (2a). Make sure that the coupling element (2a) is seated in the centring of the flywheel/adapter flange and has full-surface contact. Insert the bolts and tighten them so that they are hand-tight.
-
Page 62: Type Tok
Mounting the coupling Type TOK...TK On how to handle the coupling, follow the instructions on page 32. To mount the coupling element (2) between drive unit and output unit, proceed as follows: Ensure that the connecting surfaces are free of preservative and grease. ... - Page 63 Mounting the coupling Connect the coupling element with the output-side hub (3) by means of the bolts (7). Make sure that the coupling hub (3) is seated in the centring of the coupling element (2) and has full-surface contact. Tighten the bolts crosswise with the required torque;...
-
Page 64: Type Tok
Mounting the coupling Type TOK...D TK On how to handle the coupling, follow the instructions on page 32. To mount the coupling elements (2a) and (2b) between the drive unit and output unit, proceed as follows: Ensure that the connecting surfaces are free of preservative and grease. ... - Page 65 Mounting the coupling Make sure that the markings from joint balancing are in alignment. Lift the coupling element (2b) in the appropriate manner. Mount the coupling element on the hub and secure it to prevent it falling. Lift the coupling element (2a) in the appropriate manner.
-
Page 66: Types Tok
Mounting the coupling Types TOK...R F2K On how to handle the coupling, follow the instructions on page 32. To mount the coupling elements (2a) and (2b) on the flywheel of the drive unit, proceed as follows: Ensure that the connecting surfaces are free of preservative and grease. ... - Page 67 Mounting the coupling Align the threaded bores and through holes of the flywheel/adapter flange and the coupling element (2a). Make sure that the coupling element (2a) is seated in the centring of the flywheel/adapter flange and has full-surface contact. Insert the bolts and tighten them so that they are hand-tight.
-
Page 68: Type Tok
Mounting the coupling Type TOK...R TK On how to handle the coupling, follow the instructions on page 32. To mount the coupling elements (2a) and (2b) between the drive unit and output unit, proceed as follows: Ensure that the connecting surfaces are free of preservative and grease. ... -
Page 69: Torques For Tightening Bolted Connections
Mounting the coupling For the splited spacer ring type, refer to the mounting instructions in the Mounting the splited spacer ring section, page 53. The mounting description for the type with splited spacere ring is similar to the TOK...R F2K type. See the mounting description for the type TOK…R F2K on page Torques for tightening bolted connections A cordless screwdriver may be used to screw the bolts in hand-tight. -
Page 70: Torques For The Bolted Connection Of The Coupling Element, Flange And The Coupling Hub
Mounting the coupling Torques for the bolted connection of the coupling element, flange and the coupling hub The following torques are applicable for bolting the coupling hub to the coupling element. They are only applicable for the following conditions: Total friction factor μ= 0.14 ... -
Page 71: Torques For The Flywheel Bolts
DIN 433. Strength grade 10.9 bolts with appropriate washers and correct torques may be used under circumstances after consultation with REICH. Contact REICH before using bolts of a different strength grade. Before tightening the bolts, make sure that the washers have full-surface contact on ... -
Page 72: Mounting The Protection Device
Mounting the coupling Mounting the protection device The owner must equip the coupling with a protective guard prior to commissioning. The coupling must be operated exclusively with the protective guard mounted. The protection device must satisfy the following minimum requirements and ensure: Protection against contact with rotating parts ... -
Page 73: Putting The Coupling Into Operation
Putting the coupling into operation Putting the coupling into operation DANGER Risk of explosion when operating the coupling in potentially explosive atmospheres. Risk of explosion with fatal injuries. Exclusively use couplings bearing the corresponding ATEX marking in potentially explosive atmospheres. ... -
Page 74: Operation
Operation Operation DANGER Risk of explosion when operating the coupling in potentially explosive atmospheres. Risk of explosion with fatal injuries. Exclusively use couplings bearing the corresponding ATEX marking in potentially explosive atmospheres. In this respect, read and follow the additional notes in the supplementary manual for ATEX operation. -
Page 75: Eliminating Malfunctions
Eliminating malfunctions Eliminating malfunctions DANGER Risk of explosion when operating the coupling in potentially explosive atmospheres. Risk of explosion with fatal injuries. Exclusively use couplings bearing the corresponding ATEX marking in potentially explosive atmospheres. In this respect, read and follow the additional notes in the supplementary manual for ATEX operation. -
Page 76: Table Of Malfunctions
Eliminating malfunctions Table of malfunctions Malfunction Cause Remedy Sudden change in the The coupling’s alignment Decommission the system. noise level. has been changed. Identify the reason for this change, e.g. loosened Sudden occurrence of foundation bolts. vibrations. Ensure that the coupling’s ... -
Page 77: Maintaining The Coupling
Maintaining the coupling Maintaining the coupling DANGER Risk of explosion when operating the coupling in potentially explosive atmospheres. Risk of explosion with fatal injuries. Exclusively use couplings bearing the corresponding ATEX marking in potentially explosive atmospheres. In this respect, read and follow the additional notes in the supplementary manual for ATEX operation. -
Page 78: Performing Inspections
− Ageing − Embrittlement. Make sure that damaged couplings are exchanged immediately. Only use correspondingly designed original couplings or coupling elements from REICH. Check whether a bolt has come loose based on the bolts' colour markings. Tighten loose bolts to the required torque. -
Page 79: Replacing The Coupling Elements
Maintaining the coupling Replacing the coupling elements Types TOK…F2 and TOK…D F2 The following description applies to couplings with one coupling element. Proceed accordingly in the case of couplings with two coupling elements. The coupling elements of these types cannot be replaced without moving the coupled machines. -
Page 80: Types Tok
Maintaining the coupling Install all new coupling elements. For installation, proceed as described in the Mounting the coupling section from page 37. Types TOK…TK, TOK…R TK and TOK…D TK The following description applies to couplings with one coupling element. Proceed accordingly in the case of couplings with two coupling elements. -
Page 81: Cleaning The Coupling
Cleaning the coupling Cleaning the coupling DANGER Risk of explosion when operating the coupling in potentially explosive atmospheres. Risk of explosion with fatal injuries. Exclusively use couplings bearing the corresponding ATEX marking in potentially explosive atmospheres. In this respect, read and follow the additional notes in the supplementary manual for ATEX operation. -
Page 82: Dismantling The Coupling
Dismantling the coupling Dismantling the coupling DANGER Risk of explosion when operating the coupling in potentially explosive atmospheres. Risk of explosion with fatal injuries. Exclusively use couplings bearing the corresponding ATEX marking in potentially explosive atmospheres. In this respect, read and follow the additional notes in the supplementary manual for ATEX operation. -
Page 83: Disposing Of The Coupling
Disposing of the coupling Disposing of the coupling Dispose of the coupling through a certified specialist disposal company. Observe and comply with the country-specific regulations applicable to the place of use. If in doubt, contact your municipal or local administration. Sort the coupling components according to their materials: Steel ...
